The Texas Instruments TPS54202HDDCR is a versatile and efficient power management chip designed to cater to a broad range of applications. This component is engineered to handle a wide input voltage range from 4.5 V to 28 V, making it suitable for everything from industrial equipment to consumer electronics. It features integrated MOSFETs that support a continuous output current of 2 A, ensuring reliable performance under various load conditions. The device also boasts a low shutdown current of just 2 μA and a quiescent current of 45 μA, which helps in reducing power consumption when idle. Additionally, the TPS54202HDDCR includes a fixed 500-kHz switching frequency and an internal 5-ms soft-start to minimize start-up stress, enhancing the overall durability and efficiency of the system.
Advanced features such as Eco-mode™ pulse skip technology and peak current mode control make the TPS54202HDDCR highly efficient and adaptable to varying power demands. Safety is a priority with this chip, as it includes comprehensive protection mechanisms like overcurrent protection with hiccup mode, overvoltage protection, and thermal shutdown to safeguard the system under extreme conditions. These features make the TPS54202HDDCR an ideal choice for powering devices in sectors such as distributed power-bus supplies, white goods, and audio equipment, among others.

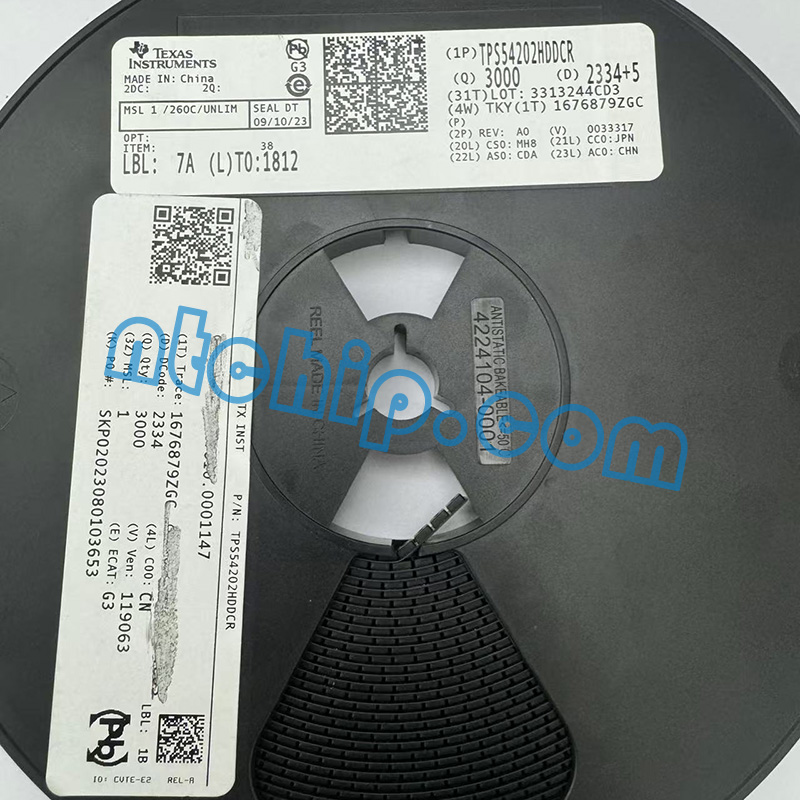

Texas Instruments TPS54202HDDCR Original Reel Label
Nantian Electronics, a professional distributor of Texas Instruments, stocks a large quantity of TPS54202HDDCR chips and provides essential support including datasheets and pin diagram instructions for ease of integration into various projects.
