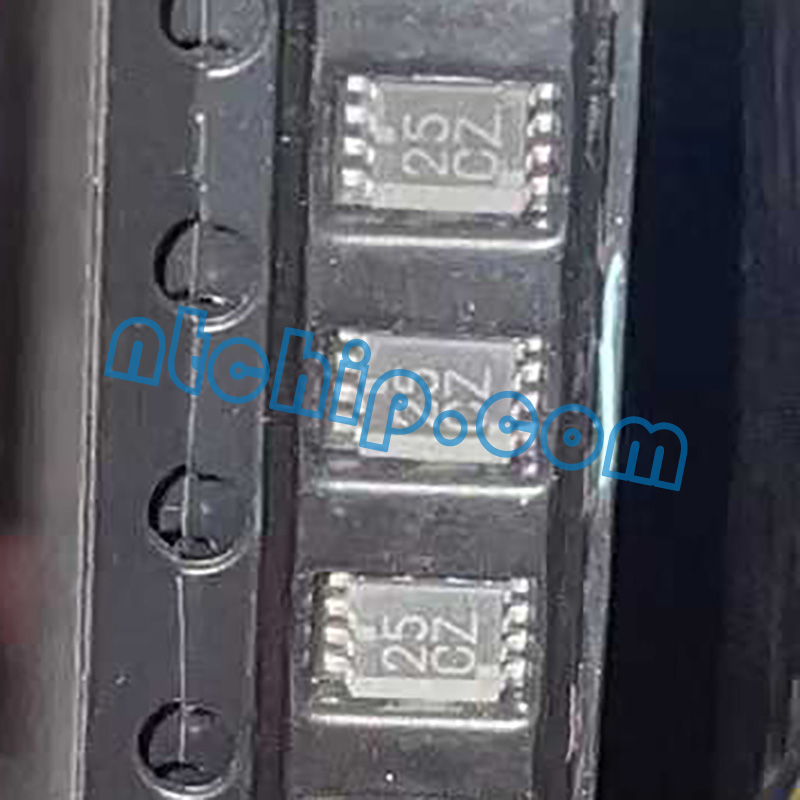

What are the main features of the SN74LVC2G125DCUR?
The SN74LVC2G125DCUR is a dual non-inverting buffer with 3-state outputs, designed for high-speed operation and low power consumption. It offers robust ESD protection, supports up to 5.5 V input voltages, and provides ±24 mA output drive at 3.3 V. It also features low output noise, live insertion support, and excellent latch-up immunity.
What is this device used for?
This buffer is commonly used for signal isolation, level shifting, and driving buses in digital systems. It’s ideal for applications in mobile devices, communication equipment, and other electronics requiring clean signal buffering with minimal power usage.
Are there alternative parts?
Yes, alternatives include similar buffer ICs like the SN74LVC2G125 or the SN74AUC2G125 from Texas Instruments, as well as compatible devices from manufacturers such as Nexperia or ON Semiconductor. Always check compatibility in terms of pinout and electrical specs before substituting.
