The LM5109BMAX/NOPB by Texas Instruments is a highly efficient gate driver designed to manage both high-side and low-side N-Channel MOSFETs, making it an essential component for advanced power conversion and motor drive applications. This driver is capable of delivering a peak output current of 1-A both in sinking and sourcing, which ensures robust performance in demanding environments. Its compatibility with independent TTL and CMOS inputs adds to its versatility, allowing it to be integrated into a variety of electronic systems without compatibility issues.
One of the standout features of the LM5109BMAX/NOPB is its ability to support a bootstrap supply voltage up to 108-V DC, paired with exceptionally fast propagation times of just 30 ns typically. This speed is crucial for applications requiring quick response times, such as current-fed push-pull converters, half- and full-bridge power converters, solid-state motor drives, and two-switch forward power converters. Furthermore, the device includes features like supply rail undervoltage lockout to enhance operational safety and low power consumption to improve overall efficiency. Offered in both 8-pin SOIC and thermally-enhanced 8-pin WSON packages, this gate driver combines performance with practicality, making it an ideal choice for a wide range of industrial applications.

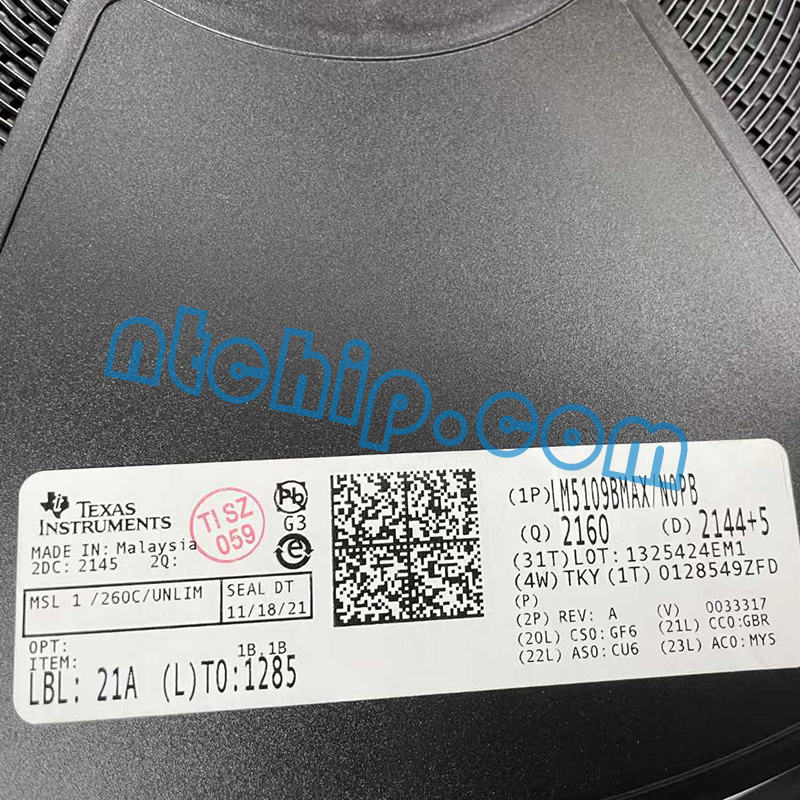

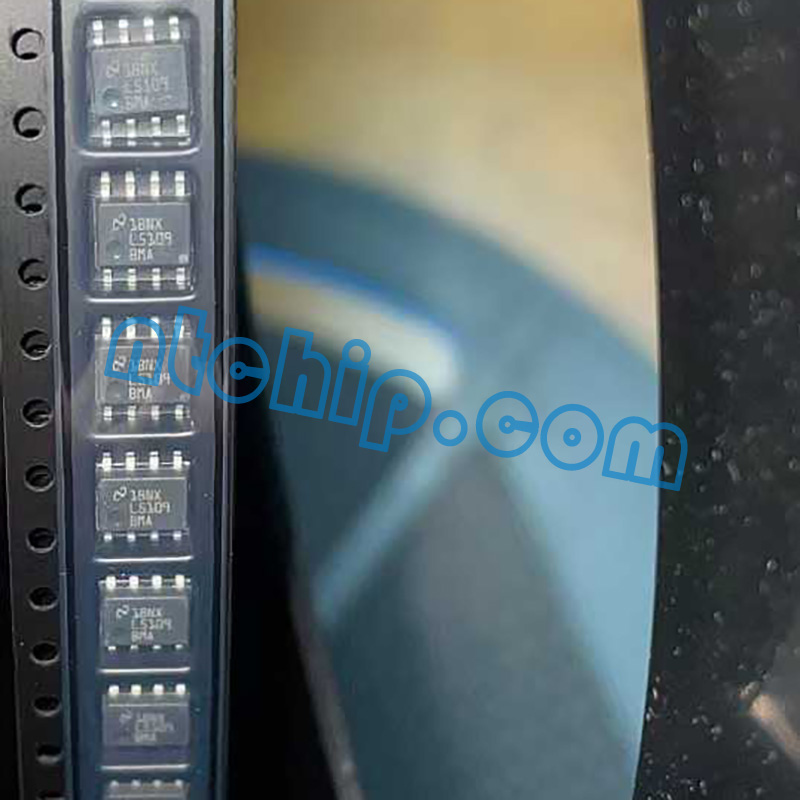

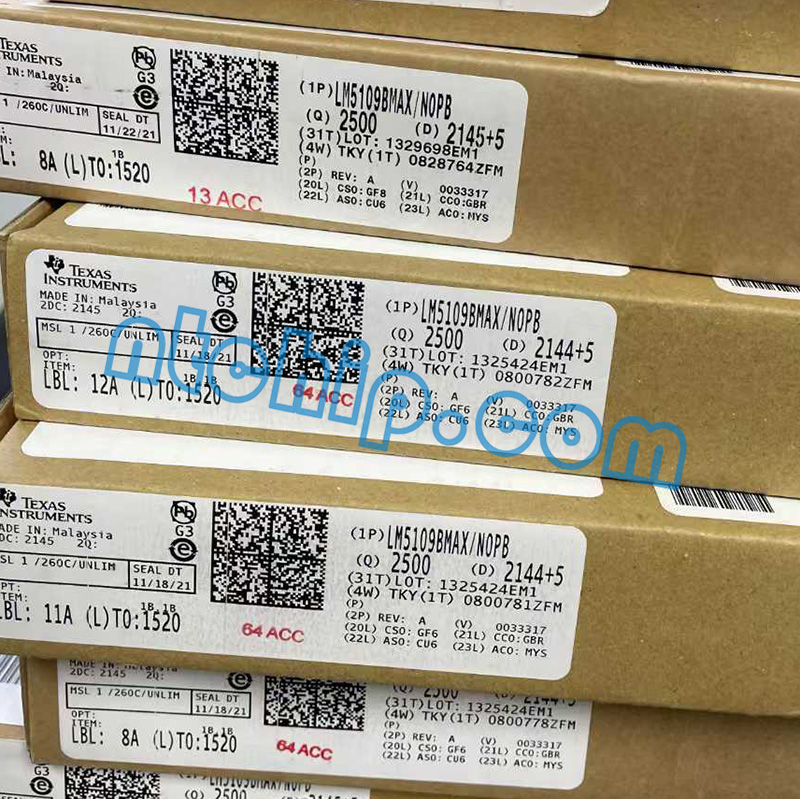

Nantian Electronics, as a professional distributor, stocks a large quantity of LM5109BMAX/NOPB units and provides comprehensive support including datasheets and pin configuration guidelines.
