Texas Instruments DAC7311IDCKR

Manufacturer Part Number :	DAC7311IDCKR
Manufacturer :	Texas Instruments
Description :	Single-Channel IC DAC 12BIT 1CH LP SC70-6
Package :	SC70-6
Datasheet :	DAC7311IDCKR.PDF
EDA / CAD Models :	DAC7311IDCKR by SnapEDA
Base Product Number :	DAC7311
Stock Condition :	In Stock 6000, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Texas Instruments DAC7311IDCKR

In Stock: 6000 Qty:

RFQ Now Add to RFQ list

The 12-bit DAC7311IDCKR (DACx311) are low-power, single-channel, voltage output digital-to-analog converters (DACs). The low power consumption in normal operation (0.55 mW at 5 V, reducing to 2.5 μW in power-down mode) makes the DACx311 an excellent choice for portable, battery-operated applications.

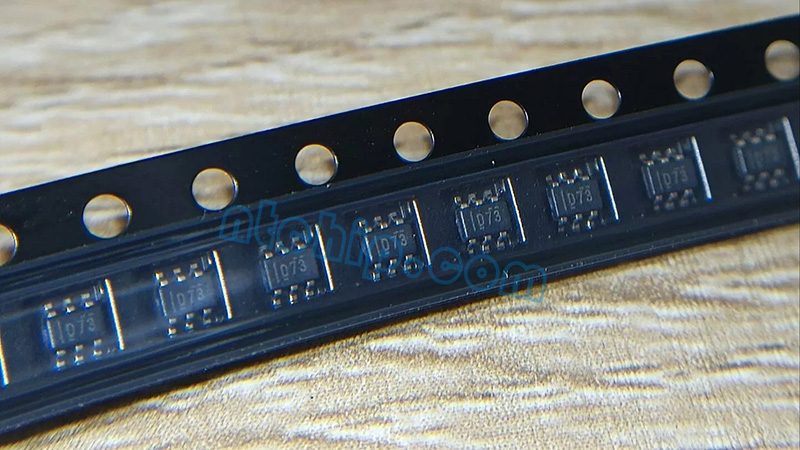

Original DAC7311IDCKR in stock

As a professional TI distributor, Nantian Electronics has a large number of DAC7311IDCKR in stock. We also provide DAC7311IDCKR parameters, DAC7311IDCKR Datasheet PDF and pin diagram instructions for download.

Applications

Portable, battery-powered instruments
4-mA to 20-mA loop-powered applications
Process control and industrial automation
Programmable voltage and current sources

Features

microPower operation: 80 μA at 2.0 V
Power-down: 0.5 μA at 5 V, 0.1 μA at 2.0 V
Wide power supply: 2.0 V to 5.5 V
Power-on reset to zero scale
Straight binary data format
Low power serial interface with Schmitt-triggered inputs: up to 50 MHz
On-chip output buffer amplifier, rail-to-rail operation

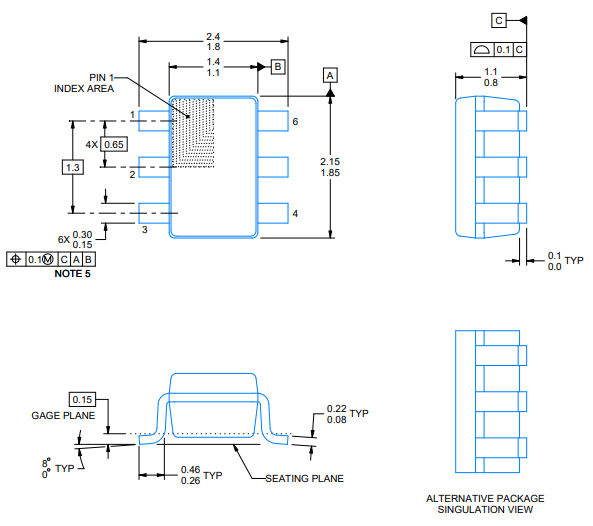

Dimension

The size information of TI DAC7311IDCKR is as follows:

DAC7311IDCKR Dimension

Settling Time:	12μs (Typ)
Output Type:	Voltage - Buffered
Data Interface:	SPI, DSP
Reference Type:	Supply
Voltage - Supply, Analog:	2 V ~ 5.5 V
Voltage - Supply, Digital:	2 V ~ 5.5 V
INL/DNL (LSB):	±0.3, ±0.2
Architecture:	String DAC
Operating Temperature:	-40°C ~ 125°C
Package / Case:	6-TSSOP, SC-88, SOT-363
Supplier Device Package:	SC-70-6
