What are the key features of the CSD18533Q5A?

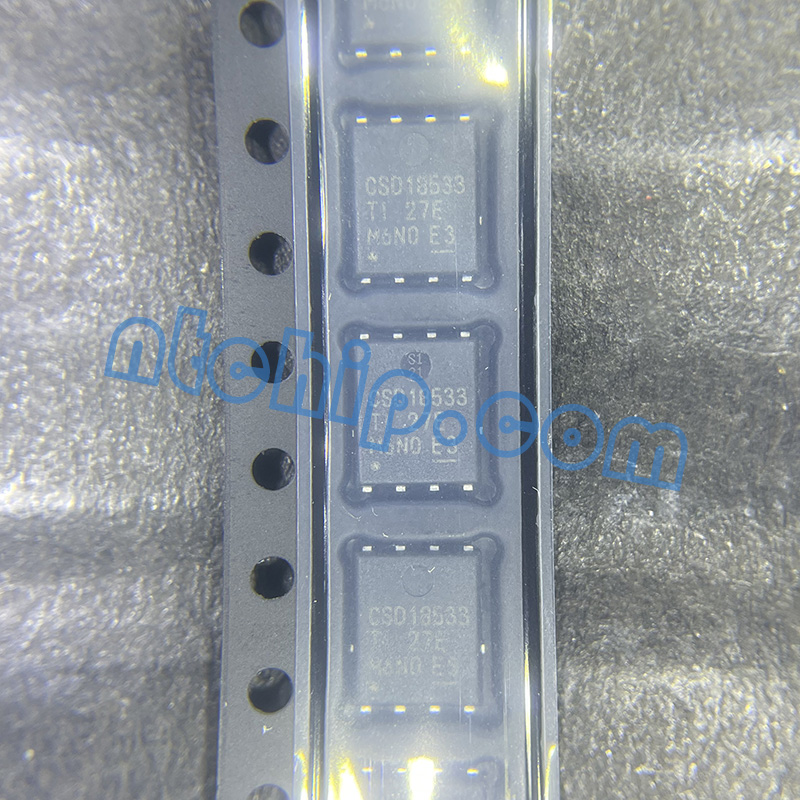

The CSD18533Q5A is a 60 V N-channel MOSFET designed for high-efficiency power switching. It offers very low on-resistance, fast switching performance, and high current capability—supporting up to 17 A at ambient and up to 100 A with proper thermal management. It comes in a compact 8-VSONP (5×6 mm) package, providing strong thermal performance and a small PCB footprint.
What is the CSD18533Q5A typically used for?
This MOSFET is commonly used in high-current and high-efficiency power systems. Typical applications include DC-DC converters, synchronous rectification, motor drives, power management modules, battery-powered equipment, and industrial or automotive systems where low conduction loss and robust switching characteristics are essential.
What advantages does it offer in power designs?
Its low Rds(on), fast switching, and high power dissipation capability help reduce heat generation and improve overall system efficiency. This makes it ideal for compact designs that require both high reliability and efficient operation.
Are there alternative or similar parts to the CSD18533Q5A?
Yes, several MOSFETs can serve as alternatives depending on voltage, current, and package needs. Comparable TI alternatives include the **CSD18534Q5A**, **CSD19533Q5A**, and **CSD18540Q5B**. Alternatives from other manufacturers may include similar 60 V N-channel MOSFETs from Infineon’s OptiMOS series or ON Semiconductor’s NTM/NVM device families. Selection should be based on matching Rds(on), current rating, gate charge, and package compatibility.
