The TERMINUS FE1.1-AQFP48A device is a high-performance, low-power USB hub controller that provides impressive efficiency for a variety of applications. The power consumption metrics reflect the device's capacity for energy conservation, consuming only 155mA when all seven downstream facing ports are enabled in High-Speed mode, and 66mA when only one is enabled. This makes the device a commendable contributor to application efficiency and power management.
Notably, the FE1.1-AQFP48A is fully compliant with the Universal Serial Bus Specification Revision 2.0 (USB 2.0). Its upstream facing port supports both high-speed (480MHz) and full-speed (12MHz) modes, ensuring flexible connectivity. It offers a total of seven downstream facing ports that support high-speed, full-speed, and low-speed modes. This product integrates USB 2.0 transceivers, upstream 1.5KΩ pull-up, downstream 15KΩ pull-down, and serial resistors, making it highly versatile. It also comes with an integrated Power-On-Reset circuit, 12MHz Oscillator with feedback resistor, crystal load capacitor, and a 12MHz-to-480MHz Phase Lock Loop (PLL). The device houses an integrated 5V to 3.3V and 1.8V regulator to simplify power management.

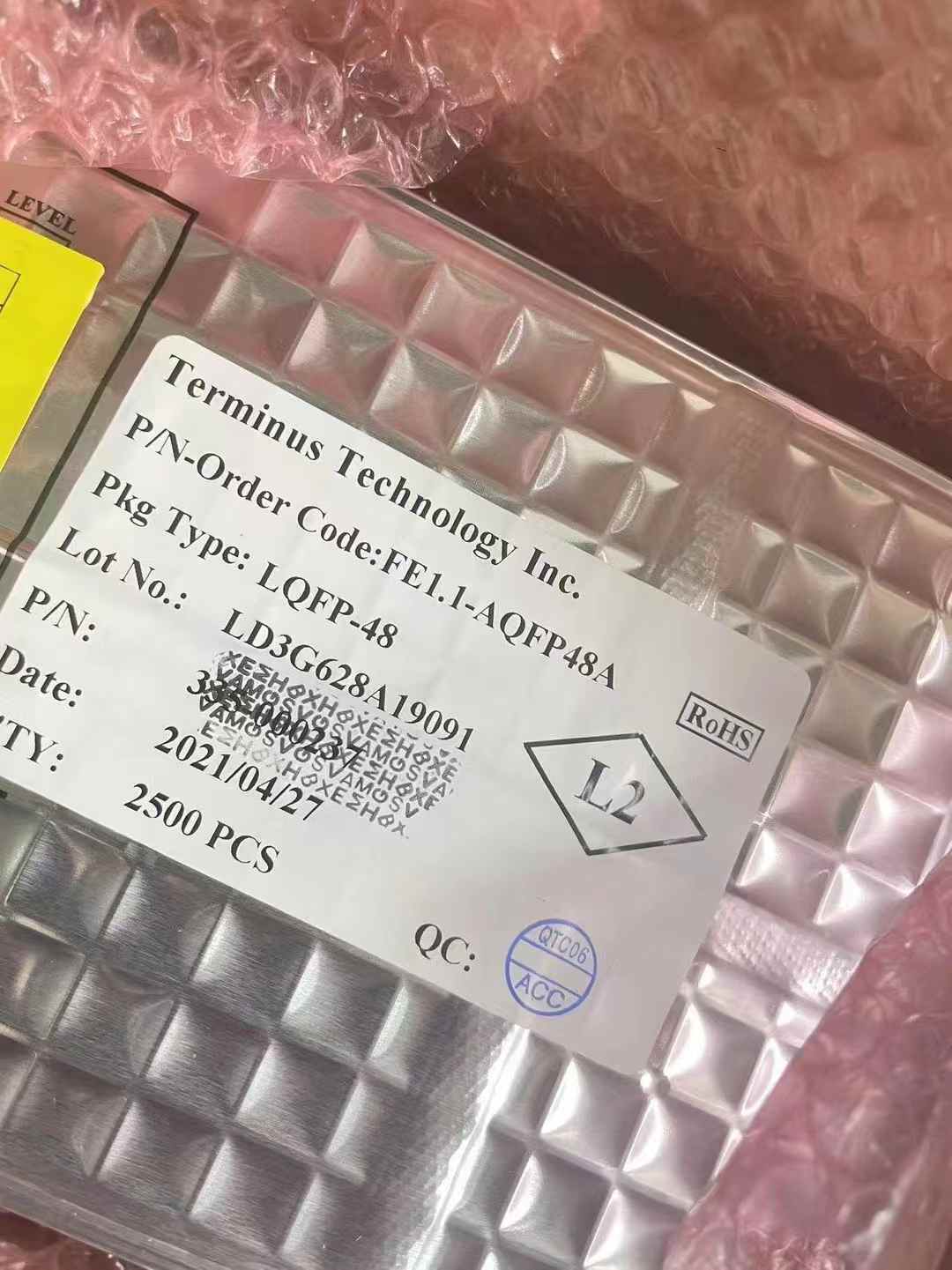

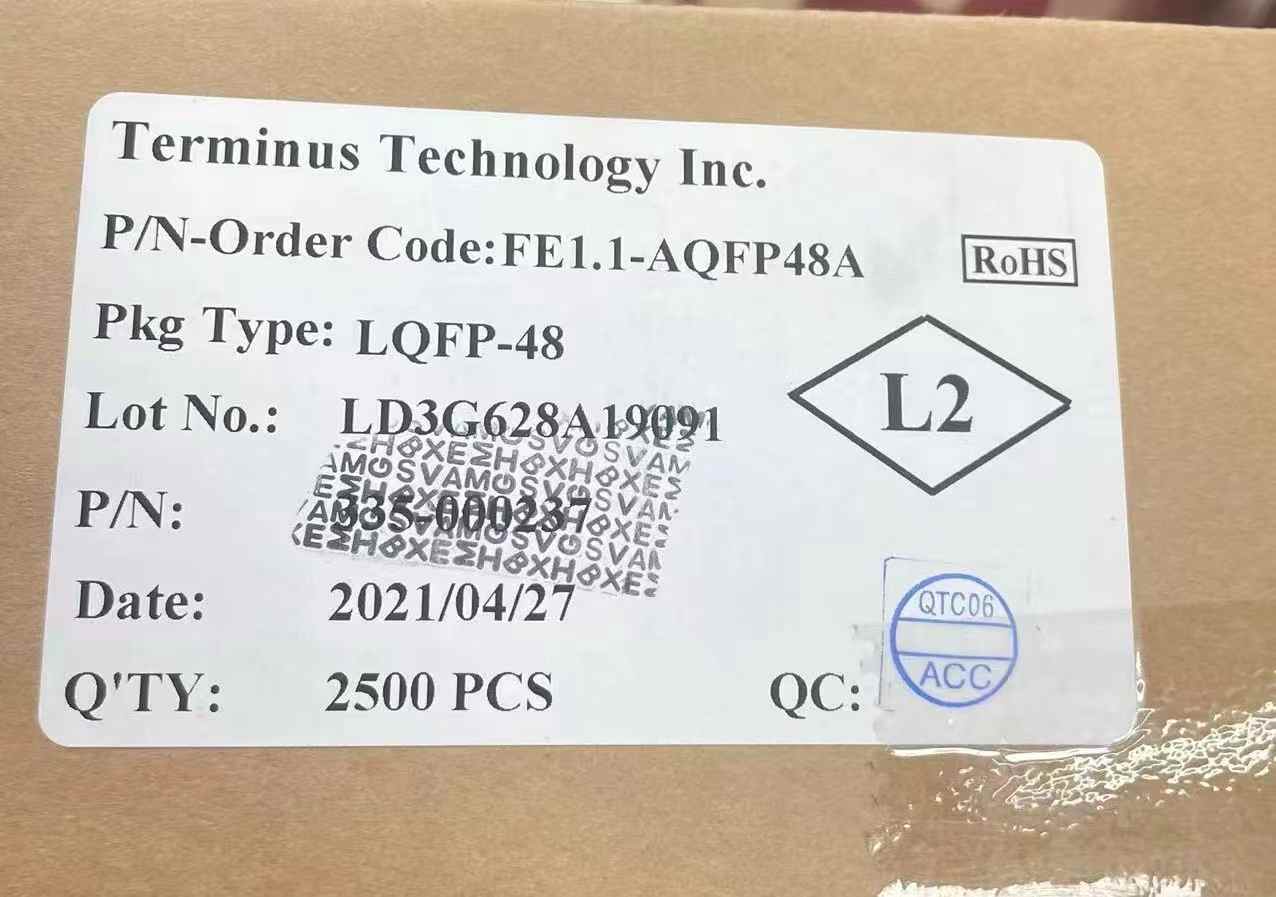

Terminus Technology FE1.1-AOFP48A Package Original Label
As a professional TERMINUS distributor, Nantian Electronics holds substantial stock of the FE1.1-AQFP48A, offering detailed parameters, downloadable datasheets, and pin diagram instructions.
