What are the key features of the RTL8211E-VB-CG?

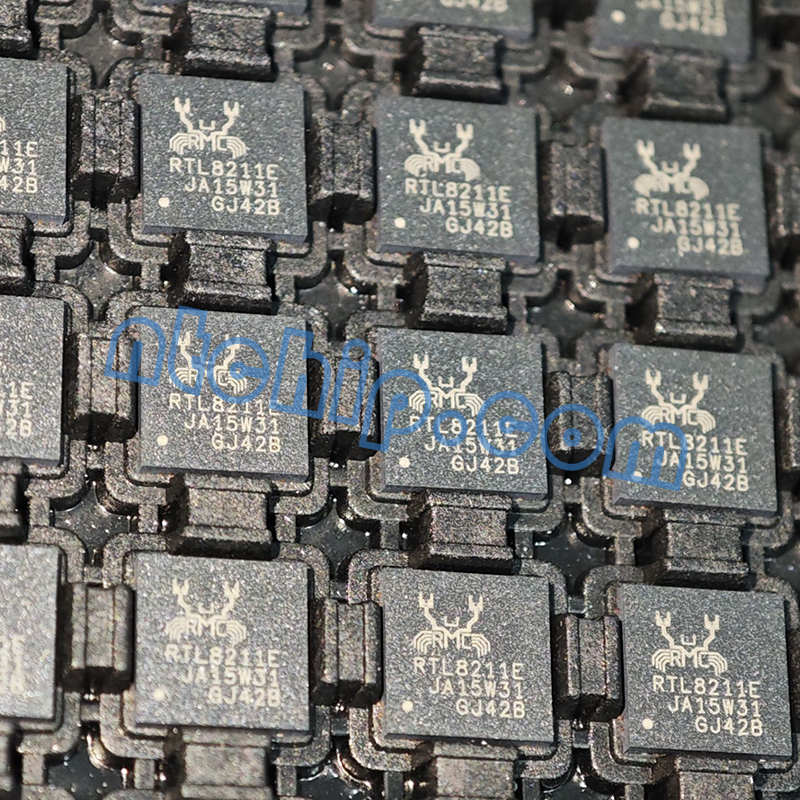

The RTL8211E-VB-CG is a Gigabit Ethernet PHY transceiver that supports 10Base-T, 100Base-TX, and 1000Base-T standards, making it compatible with modern wired networks. It offers automatic crossover and polarity correction, parallel and link detection, Wake-on-LAN, energy-efficient Ethernet (IEEE 802.3az), and integrated clock output for MAC interfaces. The device supports RGMII and GMII signaling and includes a built-in switching regulator with low power consumption, helping designers build robust and efficient Ethernet connectivity into their devices.
What is it used for?
This Ethernet PHY is used to add wired LAN connectivity to a wide range of products, such as routers, switches, gateways, industrial controllers, IP cameras, embedded systems, and other network equipment that require reliable 10/100/1000 Mbps Ethernet links.
Does it have alternative parts?
Yes. Similar Gigabit Ethernet PHYs are available from Realtek (e.g., RTL8211 variants) and other vendors such as Microchip (e.g., KSZ series), Marvell (Alaska series), and Broadcom PHY products. When choosing an alternative, ensure the replacement matches the required interface (RGMII/GMII), speed, package type, and power characteristics for your design.
