Pulse Electronics Corporation PA1283NLT

Manufacturer Part Number :	PA1283NLT
Manufacturer :	Pulse Electronics Corporation
Description :	XFRMR 5V 7W 155UH POE EP10 SMD
Datasheet :	PA1283NLT.PDF
EDA / CAD Models :	PA1283NLT by SnapEDA
Base Product Number :	PA1283
Stock Condition :	In Stock 2191, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Pulse Electronics Corporation PA1283NLT

In Stock: 2191 Qty:

RFQ Now Add to RFQ list

The PA1283NLT from Pulse Electronics Corporation is a compact and efficient transformer designed for power applications requiring up to 30W. With a maximum height of just 11.45mm and a footprint of 15.24mm x 13.1mm, this component is ideal for space-constrained environments. It supports both forward and flyback topologies, making it versatile for various power supply designs. The PA1283NLT is engineered to deliver reliable performance in a range of electronic devices, ensuring efficient power management and conversion in a small package.

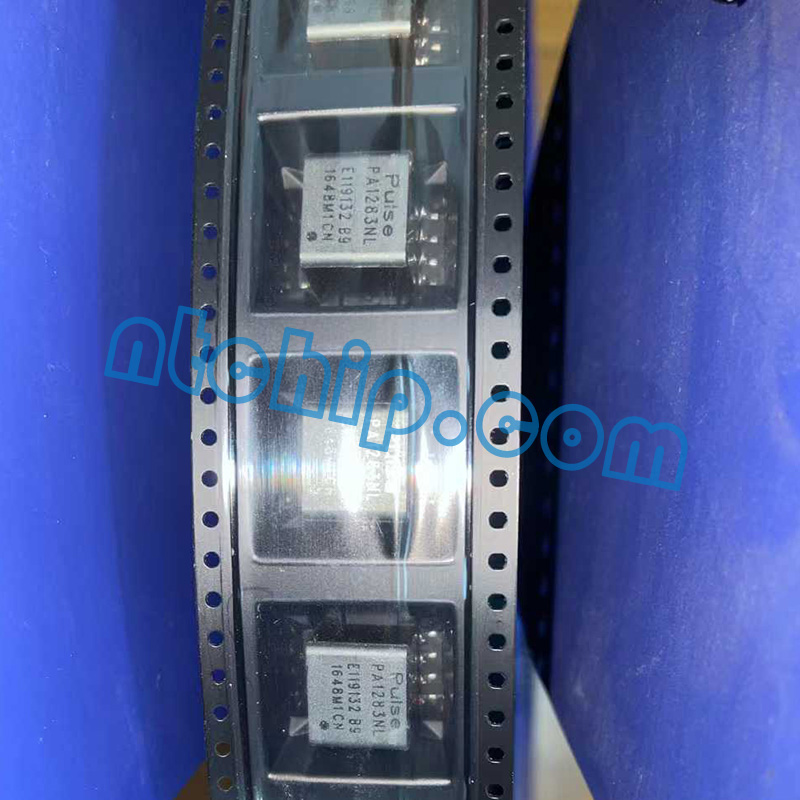

Pulse Electronics Corporation PA1283NLT part picture

Nantian Electronics, a professional distributor of Pulse Electronics Corporation products, offers a substantial stock of PA1283NLT components. We provide detailed technical resources such as datasheets, pin diagrams, and full specifications to assist in the seamless integration of this transformer into your projects. If you are interested in purchasing the PA1283NLT, please contact us for a competitive quote. We are committed to providing excellent service and support to help you meet your electronic component needs.

Pulse Electronics Corporation PA1283NLT reel original label

Type	Description
Category	Transformers Pulse Transformers
Manufacturer	Pulse Electronics
Series	EP10
Packaging	Tape & Reel (TR)
Part Status	Active
Transformer Type	Isolation and Data Interface (Encapsulated)
Inductance	155µH
ET (Volt-Time)	-
Turns Ratio - Primary:Secondary	1:0.273:0.682
Mounting Type	Surface Mount
Size / Dimension	0.515" L x 0.600" W (13.08mm x 15.24mm)
Height - Seated (Max)	0.451" (11.45mm)
Operating Temperature	-40°C ~ 125°C
Weight	-

Reviews for this product

Warranty & Returns

Warranty, Returns, and Additional Information

QA & Return Policy

Parts Quality Guarantee: 365 days

Returns for refund: within 90 days

Returns for Exchange: within 90 days

Shipping and Package

Shipping:Fedex ,UPS, DHL,TNT, SF.

Parts Packaging Guarantee:100% ESD anti-static protection, combined with high toughness and superior impact absorption.

Payment

Bank Wire Transfer, VISA, MaterCard,Paypal, Westerm Union

How we verify PA1283NLT authenticity?

At NTCHIP.com, we are committed to delivering the highest standards in electronic components. For critical Transformers-Pulse Transformers like the Pulse Electronics Corporation PA1283NLT, we operate a professional Quality Control (QC) center to ensure every unit you receive is factory-grade in quality and reliability.
