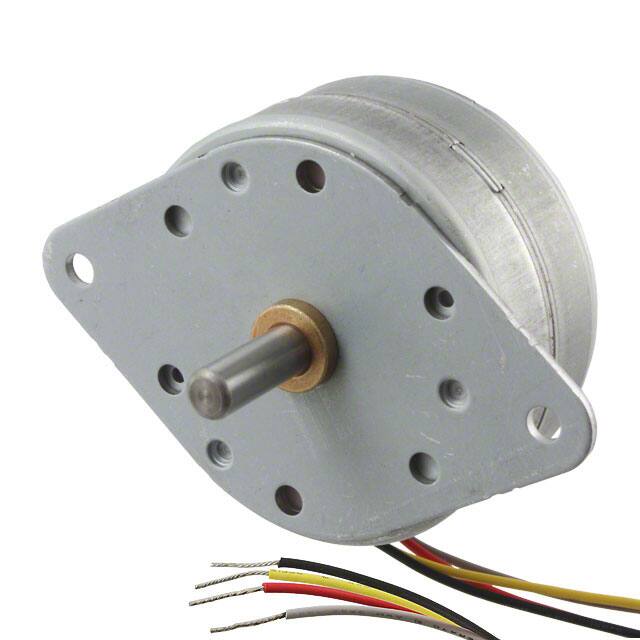

Portescap 55M048D1B

Manufacturer Part Number :	55M048D1B
Manufacturer :	Portescap
Description :	STEPPER MOTOR PM BIPOLAR 5V
Datasheet :	55M048D1B.PDF
EDA / CAD Models :	55M048D1B by SnapEDA
Stock Condition :	In Stock 7712, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Portescap 55M048D1B

In Stock: 7712 Qty:

RFQ Now Add to RFQ list

We can supply Portescap part# 55M048D1B, use the request quote form to request 55M048D1B pirce and lead time. Nantian Electronics - ntchip.com is an independent stocking distributor of electronic components. With 3+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 55M048D1B. The price and lead time for 55M048D1B depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# 55M048D1B. We look forward to doing business with you.

Series	55M
RoHS	RoHS
Type	Permanent Magnet
Accuracy	±15%
Features	Round Shaft
Coil Type	Bipolar
Step Angle	7.5°
Product Status	Obsolete
Coil Resistance	5.2 Ohms
NEMA Frame Size	-
Voltage - Rated	5VDC
Diameter - Shaft	0.250" (6.35mm)
Size / Dimension	Round - 2.170" Dia (55.12mm)
Termination Style	Wire Leads
Steps per Revolution	48
Current Rating (Amps)	960 mA
Mounting Hole Spacing	2.630" (66.68mm)
Operating Temperature	-20°C ~ 70°C
Length - Shaft and Bearing	0.750" (19.05mm)
Torque - Holding (oz-in / mNm)	27.6 / 195
