onsemi FQD7P20TM

Manufacturer Part Number :	FQD7P20TM
Manufacturer :	onsemi
Description :	MOSFET P-CH 200V 5.7A DPAK
Datasheet :	FQD7P20TM.PDF
EDA / CAD Models :	FQD7P20TM by SnapEDA
Base Product Number :	FQD7
Stock Condition :	In Stock 71498, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

onsemi FQD7P20TM

In Stock: 71498 Qty:

RFQ Now Add to RFQ list

The onsemi FQD7P20TM is a high-performance power MOSFET designed for efficient switching applications. Key features include a robust −200V drain-source voltage rating and a low on-resistance (RDS(on)) of 690 milliohms (maximum), enabling it to handle substantial current while minimizing power loss. This makes it suitable for various power management and conversion circuits.

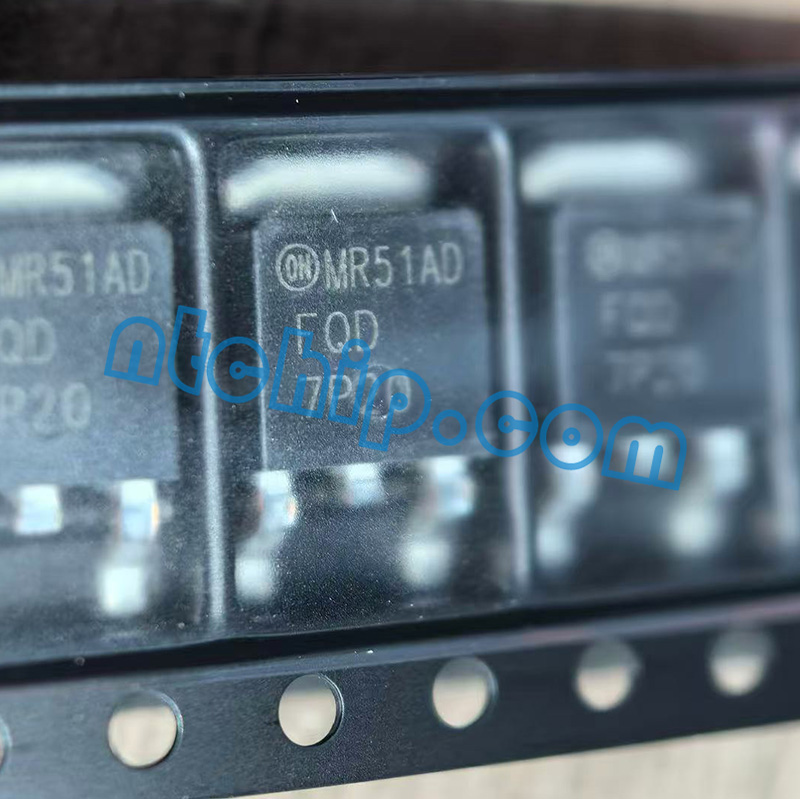

onsemi FQD7P20TM component part

Nantian Electronics, a dedicated onsemi distributor, maintains a substantial inventory of FQD7P20TM MOSFETs. We also offer comprehensive documentation, including datasheets, to assist our customers in selecting and integrating this component into their designs.

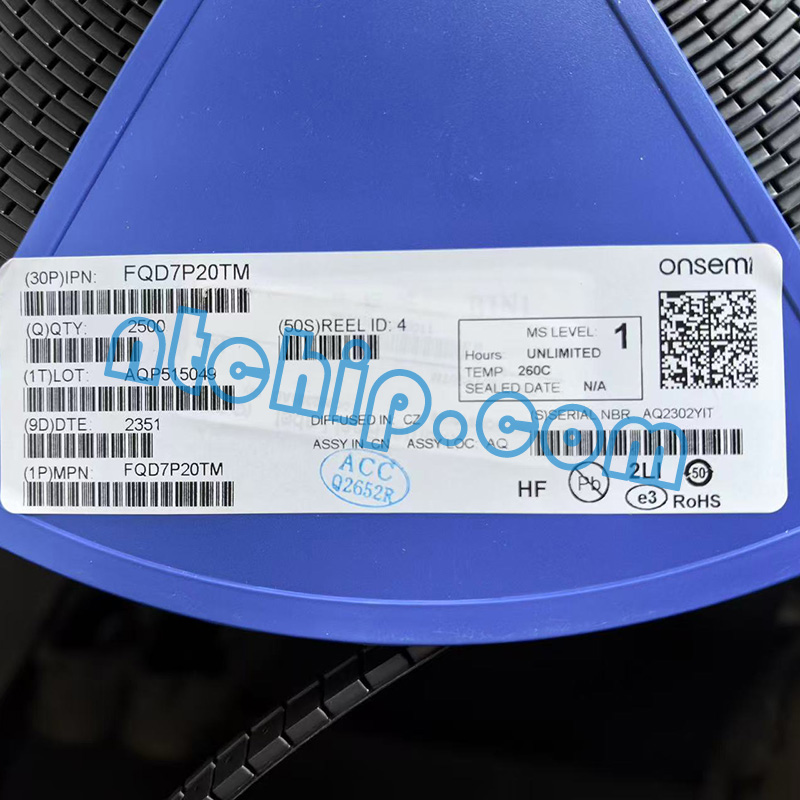

onsemi FQD7P20TM original reel label

Type	Description
Category	Discrete Semiconductor Products Transistors - FETs, MOSFETs - Single
Mfr	onsemi
Series	QFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	5.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	690mOhm @ 2.85A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	25 nC @ 10 V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	770 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 55W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Supplier Device Package	TO-252AA
Package / Case	TO-252-3, DPAK (2 Leads + Tab), SC-63
Base Product Number	FQD7P20
