NXP Semiconductors MPX2202GP

Name: MPX2202GP
Brand: NXP Semiconductors
SKU: MPX2202GP
Rating: 5.0 (2 reviews)

Manufacturer Part Number :	MPX2202GP
Manufacturer :	NXP Semiconductors
Description :	SENSOR GAUGE PRESS 29PSI MAX
Datasheet :	MPX2202GP.PDF
EDA / CAD Models :	MPX2202GP by SnapEDA
Base Product Number :	MPX2202
Stock Condition :	In Stock 2353, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

NXP Semiconductors MPX2202GP

In Stock: 2353 Qty:

RFQ Now Add to RFQ list

Introduction to MPX2202GP

MPX2202GP label

Original NXP MPX2202GP label

The MPX2202GP is a versatile pressure sensor designed for board mount applications. With its Wheatstone bridge output configuration, it provides precise and reliable pressure readings, making it suitable for a wide range of industrial and automotive applications.

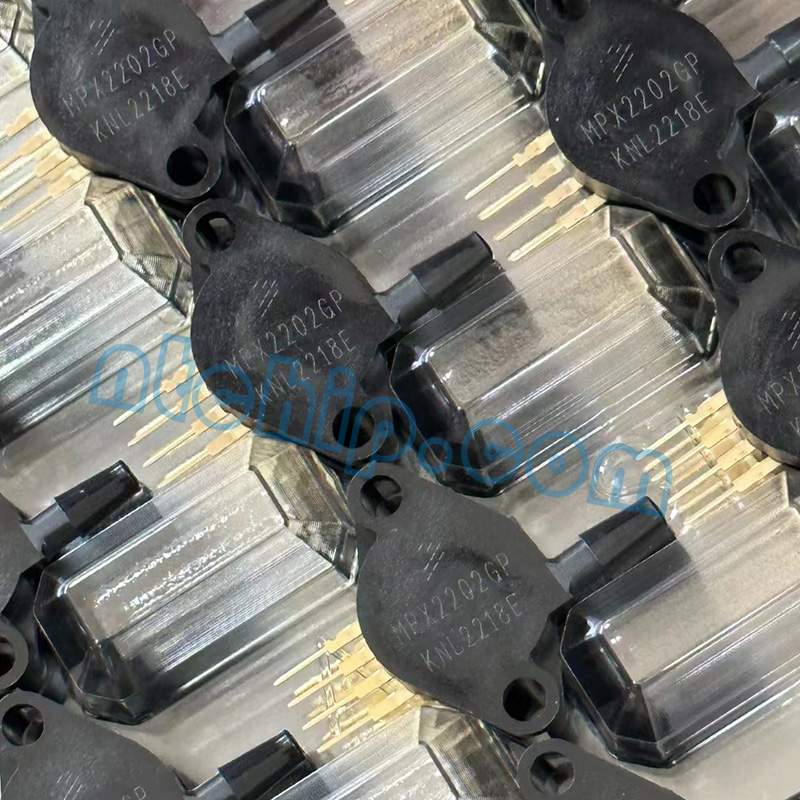

NXP MPX2202GP Physical picture

Key Specifications

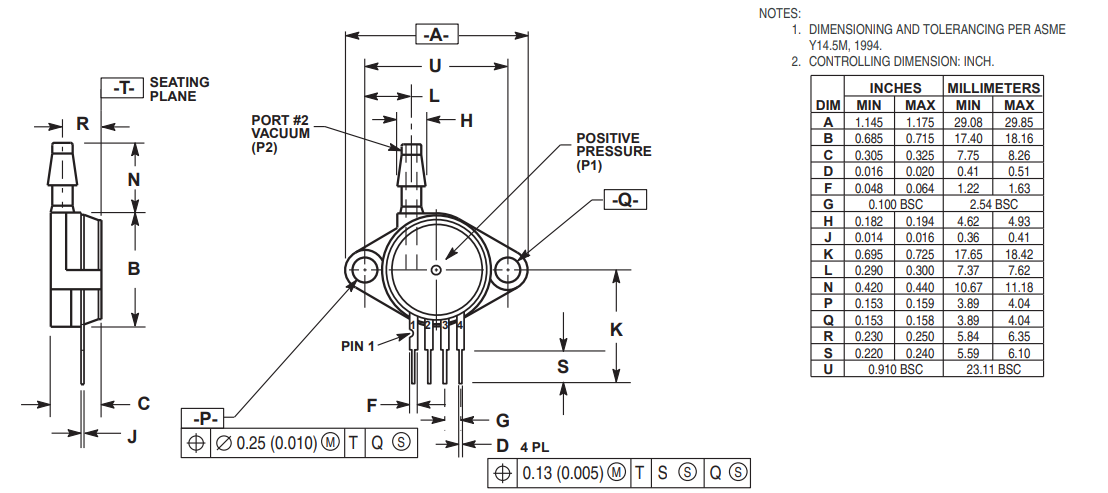

The overall dimensions of MPX2202GP are as shown below:

Dimensions of MPX2202GP

Manufacturer: NXP USA Inc.
Series: MPX2202
Packaging: Tray
Part Status: Active
Pressure Type: Vented Gauge
Operating Pressure: 29.01PSI (200kPa)
Output Type: Wheatstone Bridge
Output: 0 mV ~ 40 mV (10V)
Voltage - Supply: 10V ~ 16V
Port Size: Male - 0.19" (4.93mm) Tube
Port Style: Barbed
Features: Temperature Compensated
Termination Style: PC Pin
Maximum Pressure: 58.02PSI (400kPa)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Through Hole
Package / Case: 4-SIP Module

Applications

The MPX2202GP is commonly used in the following applications:

Automotive systems: tire pressure monitoring, fuel systems
Industrial automation: hydraulic systems, pneumatic systems
Medical devices: patient monitoring, infusion pumps
Consumer electronics: air pressure sensing, altitude measurement

Pressure Type:	Vented Gauge
Operating Pressure:	29.01 PSI (200 kPa)
Output Type:	Wheatstone Bridge
Output:	0 mV ~ 40 mV (10V)
Accuracy:	-
Voltage - Supply:	10 V ~ 16 V
Port Size:	Male - 0.19" (4.93mm) Tube
Port Style:	Barbed
Features:	Temperature Compensated
Termination Style:	PCB
Maximum Pressure:	58.02 PSI (400 kPa)
Operating Temperature:	-40°C ~ 125°C
Package / Case:	4-SIP Module
Supplier Device Package:	-
