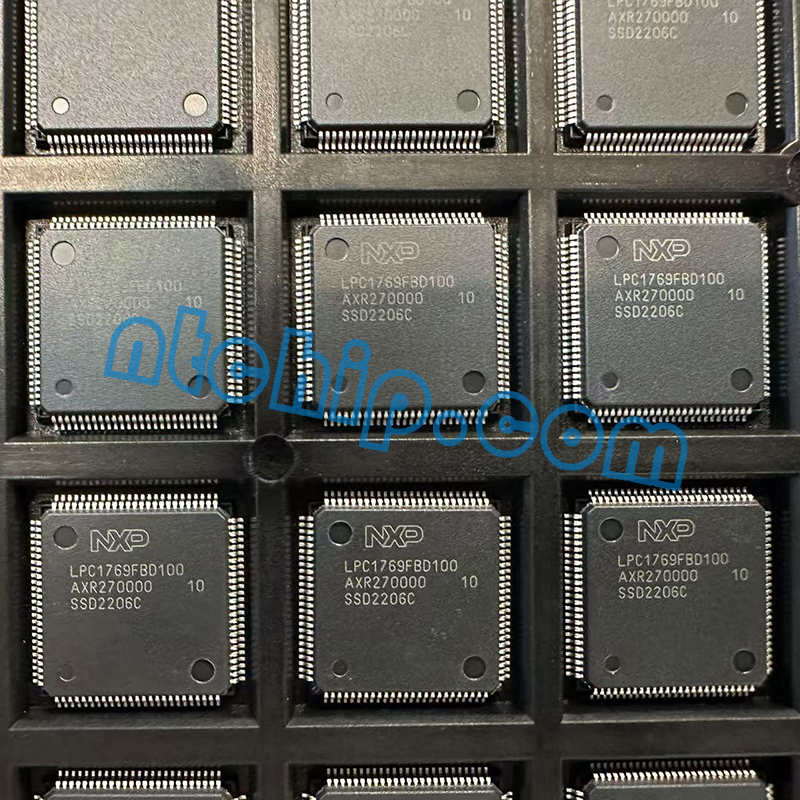

The LPC1769FBD100/P1, offered by NXP Semiconductors, is a top-tier microcontroller built on the ARM Cortex-M3 base. Designed explicitly for embedded applications, it touts a high level of integration and low power consumption. The ARM Cortex-M3 core provides next-generation features, including enhanced debugging capabilities, a higher degree of support block integration, and a unique 3-stage pipeline that separates instruction and data buses for better optimisation. Notably, the LPC1769 model operates at CPU frequencies of up to a blazingly fast 120 MHz.
This peripheral complement truly shines through its extensive feature set. It comes packed with up to 512 kB of flash memory and up to 64 kB of data memory. For seamless integration with a wide range of devices, it provides an Ethernet MAC, a USB Device/Host/OTG interface, an 8-channel general purpose DMA controller, four UARTs, two CAN channels, two SSP controllers, a SPI interface, and three I2C-bus interfaces. Additionally, a multitude of other specs, including an 8-channel 12-bit ADC, a 10-bit DAC, a motor control PWM, a 6-output general purpose PWM, an RTC with a separate battery supply, a quadrature encoder interface, and up to 70 I/O pins position this microcontroller as a versatile and robust solution for complex embedded applications.
Nantian Electronics, an esteemed distributor of NXP Semiconductors, not only has a significant inventory of the LPC1769FBD100/P1 microcontroller but also provides valuable resources such as the LPC1769FBD100/P1 Datasheet PDF and pin diagram instructions, readily available for download. This makes it easy for customers to understand, implement, and optimise the use of this state-of-the-art microcontroller.
