Nichicon PCV1H330MCL6GS

Name: PCV1H330MCL6GS
Brand: Nichicon
SKU: PCV1H330MCL6GS
Rating: 5.0 (1 reviews)

Manufacturer Part Number :	PCV1H330MCL6GS
Manufacturer :	Nichicon
Description :	CAP ALUM POLY 33UF 20% 50V SMD
Datasheet :	PCV1H330MCL6GS.PDF
EDA / CAD Models :	PCV1H330MCL6GS by SnapEDA
Base Product Number :	PCV1
Stock Condition :	In Stock 125700, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Nichicon PCV1H330MCL6GS

In Stock: 125700 Qty:

RFQ Now Add to RFQ list

The Nichicon PCV1H330MCL6GS is a high-performance aluminum electrolytic capacitor designed for demanding applications. With a voltage rating of up to 125V and low equivalent series resistance (ESR), this capacitor delivers outstanding reliability and stability, even under conditions of high ripple current. Built to endure, it has a load life of 3000 hours at 105°C, making it an ideal choice for long-term operation in challenging environments. Its surface-mount design (SMD) supports lead-free reflow soldering conditions with a peak temperature of 260°C, ensuring compatibility with modern manufacturing processes.

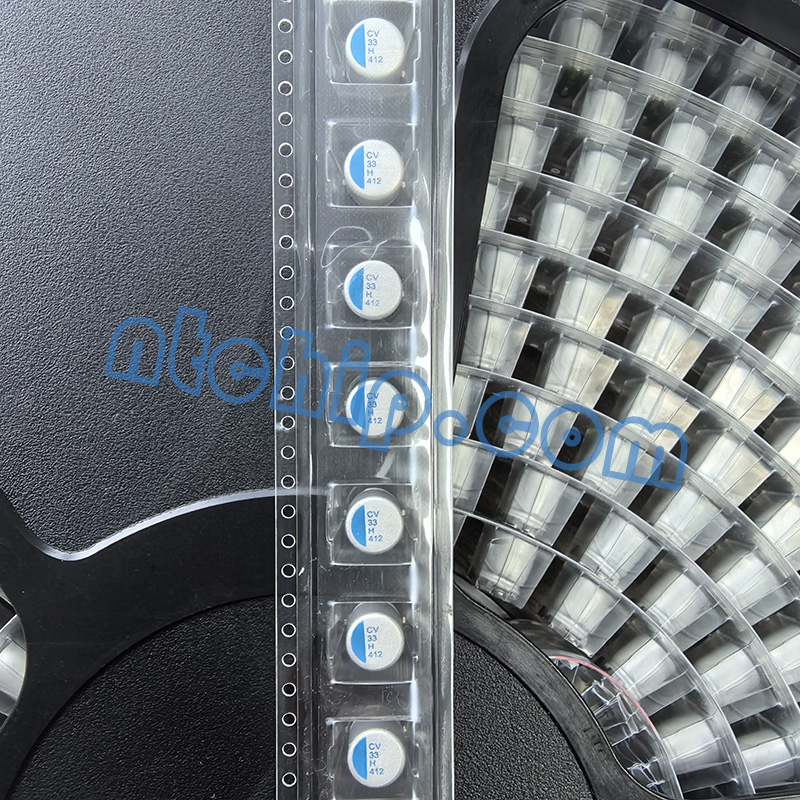

capacitor Nichicon PCV1H330MCL6GS part

Perfect for applications requiring stable performance under high voltage and heat, the PCV1H330MCL6GS is suitable for use in a wide range of electronic devices. Nantian Electronics provides extensive stock of this capacitor model, along with technical resources such as datasheets and pin diagrams to assist designers and engineers in their projects. Reach out for inquiries and receive competitive pricing for this high-quality Nichicon component.

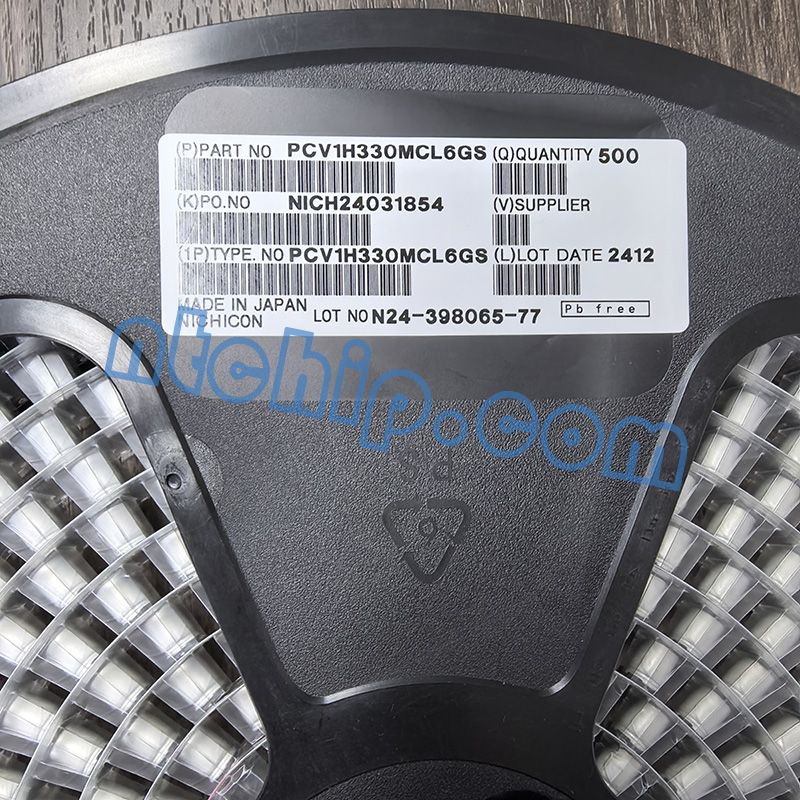

Nichicon PCV1H330MCL6GS reel label

Type	Description
Category	Capacitors Aluminum - Polymer Capacitors
Manufacturer	Nichicon
Series	PCV
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Polymer
Capacitance	33 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	36mOhm
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	AEC-Q200
Applications	General Purpose
Ripple Current @ High Frequency	1.7 A @ 100 kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
