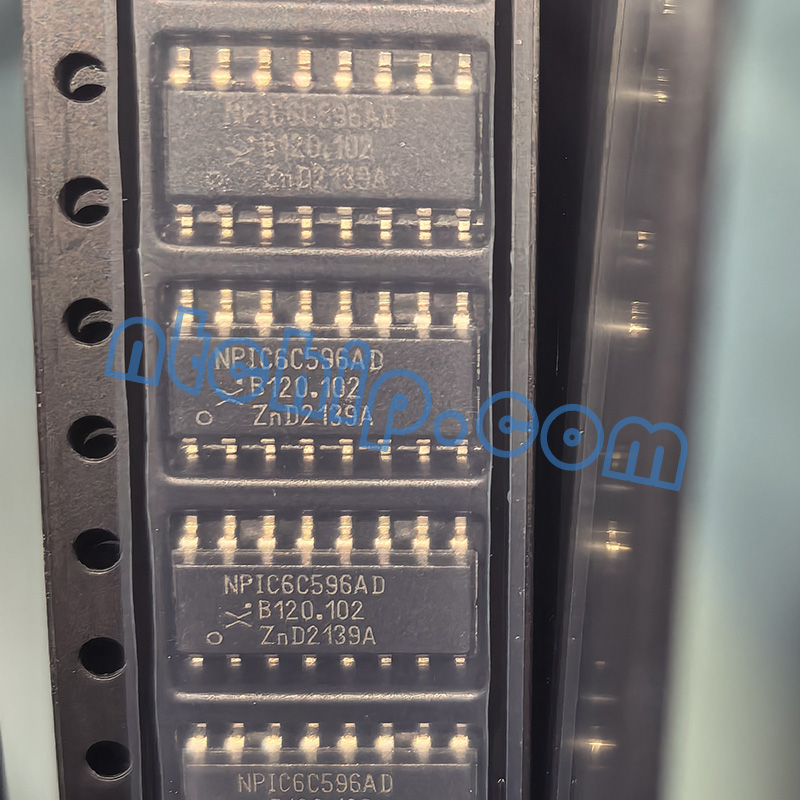

Q1: What are the main features of the Nexperia NPIC6C596AD?
A: The NPIC6C596AD is a serial-in, parallel-out shift register with integrated output drivers designed to expand the number of controllable outputs in electronic systems. It allows a microcontroller to control multiple output channels using a simple serial interface, helping reduce the number of required GPIO pins. The device integrates high-current output stages, supports efficient switching operation, and provides a compact solution for applications requiring multiple controlled loads.
Q2: What is the NPIC6C596AD used for?
A: The NPIC6C596AD is commonly used in LED display control, industrial automation equipment, relay and actuator control, instrumentation systems, consumer electronics, and embedded control applications. It is especially useful in systems where a processor needs to manage many output devices while maintaining a limited number of available I/O pins. Its integrated output drivers make it suitable for directly controlling LEDs, indicators, and other low-power loads.
Q3: Does the NPIC6C596AD have alternative manufacturers or part numbers?
A: Yes. Similar shift register and output driver devices are available from manufacturers such as Texas Instruments, STMicroelectronics, onsemi, Toshiba, and Microchip Technology. Alternative parts should be selected based on output current capability, voltage range, number of channels, package type, switching speed, and system compatibility. Comparable devices may include the Texas Instruments TPIC6B595 series, STMicroelectronics STP16CPC26 series, and other 8-bit serial-to-parallel shift register solutions.
Q4: Is technical support available for the NPIC6C596AD?
A: Yes. Nexperia provides technical resources including datasheets, application information, product specifications, and design documentation to support engineers during product development. In addition, Nantian Electronics can provide datasheet downloads, technical specifications, pin diagram information, inventory availability, and procurement support to help customers evaluate and integrate the NPIC6C596AD into their electronic designs.
