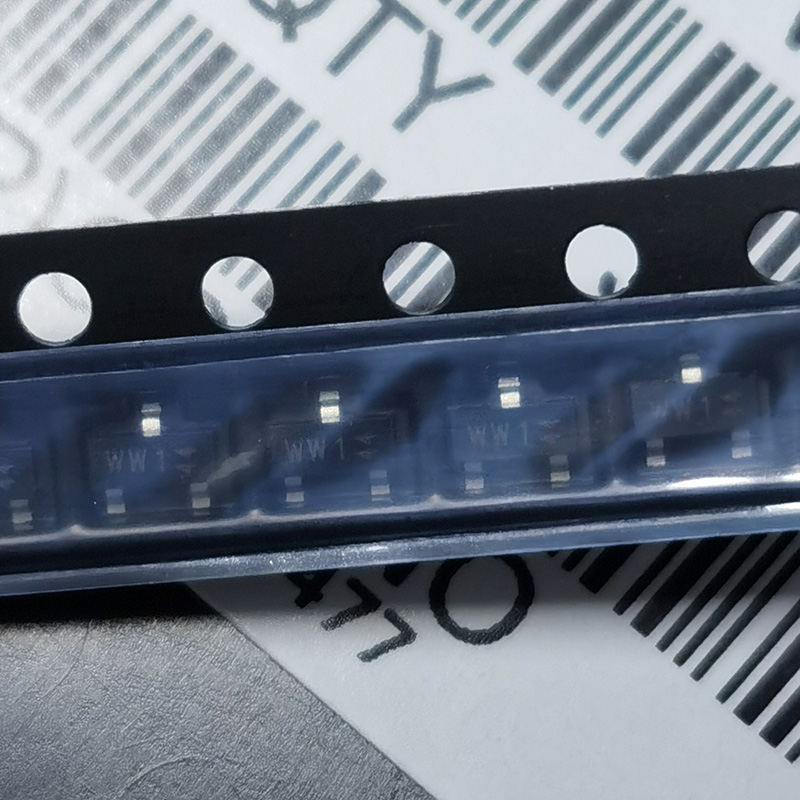

The BAT54C from Nexperia is a planar Schottky barrier diode designed with an integrated guard ring that offers stress protection to the device. This high-feature diode is encapsulated in a small SOT23 (TO-236AB) package that makes it suitable to be used as a Surface-Mounted Device (SMD). This small packaging not only saves on essential board space but also lends the device the adaptability to be utilized in various applications.
In terms of its core features, the BAT54C stands out with its low forward voltage, ensuring minimal energy losses during operation, which in turn increases its efficiency.
Furthermore, the diode features low capacitance, thereby offering high-speed response, enhancing its overall performance in swift electronic signal transitioning. This makes the BAT54C ideal for tasks requiring rapid changes in electronic signal direction.

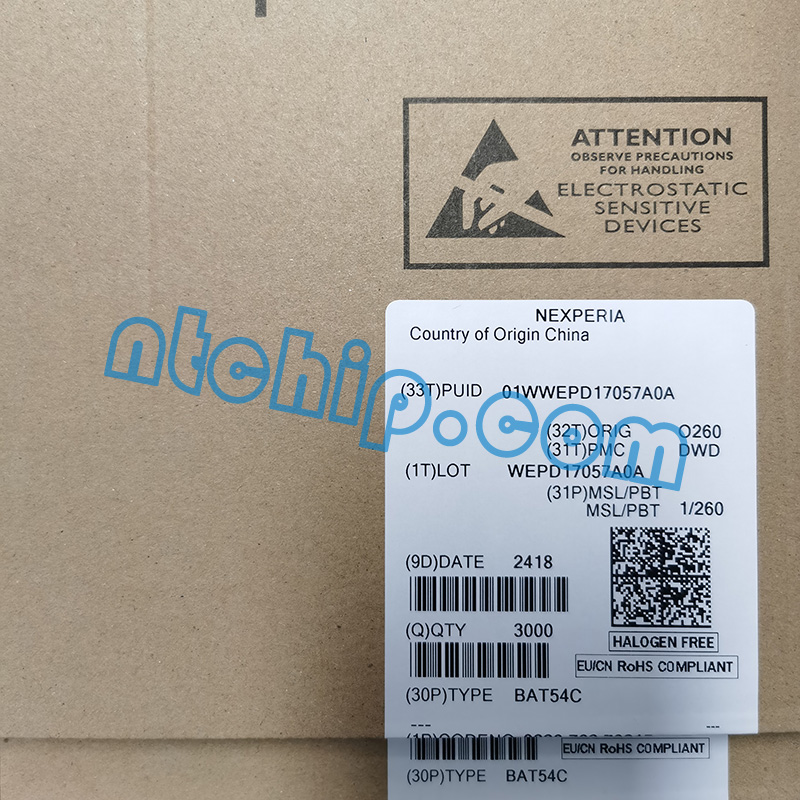

Nexperia BAT54C Package Original Label
On the supply side, Nantian Electronics, as a professional Nexperia distributor, provides ample BAT54C inventory. To facilitate better understanding and efficient use, we offer access to integral BAT54C parameters, datasheet PDFs, and pin diagram instructions for download.
