Overview of PM150RL1A120
The PM150RL1A120, crafted by Mitsubishi Electric, is a cutting-edge power module, integral for efficient power conversion across diverse electronic applications. This unit encapsulates Mitsubishi's commitment to providing high-performance power solutions, engineered to support systems that demand a consistent and robust power supply.
The same series models of PM150RL1A120 include: PM50RL1A120, PM75RL1A120, PM100RL1A120, PM200RL1A120. Since PM100RL1A120 and PM150RL1A120 have the same size, and PM150RL1A120 has greater power than PM100RL1A120, PM150RL1A120 can be used as a replacement for PM100RL1A120

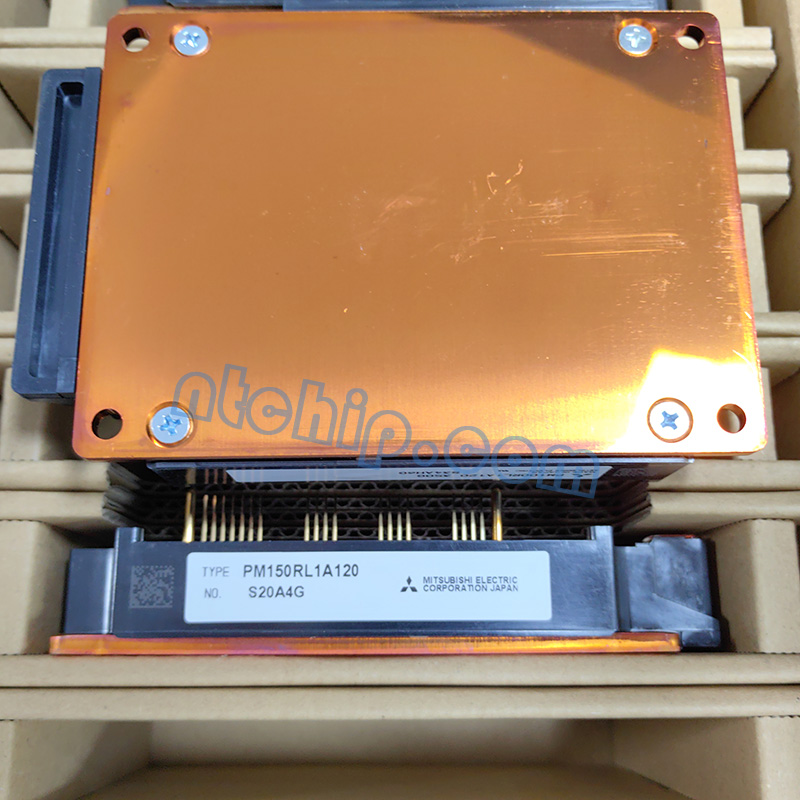

The bottom of the PM150RL1A120 IGBT module is gold
Key Features
This module stands out for its impressive high-power output within a remarkably compact design, making it ideal for space-sensitive applications. It demonstrates exceptional thermal management capabilities, crucial for maintaining performance stability under varying operational loads. The PM150RL1A120 is also distinguished by its superior efficiency, a key attribute for reducing energy wastage and minimizing thermal output in complex electronic systems.
Applications
Industrial Equipment: Perfectly suited for heavy-duty industrial machinery, including high-capacity motor drives and advanced automation systems, where endurance and efficiency are paramount.
Renewable Energy Systems: Essential in the field of renewable energy, particularly in solar power inverters and wind energy converters, facilitating efficient and sustainable energy conversion.
Electric Mobility: Widely used in the electrification of transport, including electric vehicles and railway systems, to ensure effective power management and distribution.
Critical Power Supply: Integral in power systems for data centers and telecommunication infrastructures, requiring unwavering stability and efficiency in power delivery.

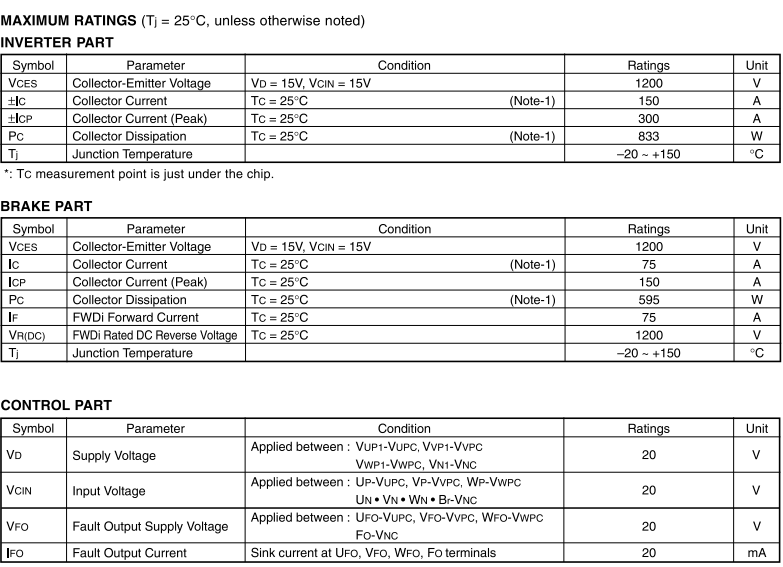

Technical Specifications
The PM150RL1A120 is characterized by its robust technical specifications. It handles a maximum current of 150A and operates at a voltage rating of 1200V, making it apt for handling high power demands. Its design is tailored for minimal power loss, endorsing its status as an energy-efficient solution. The module also incorporates comprehensive protection mechanisms, safeguarding against electrical irregularities, thus ensuring the longevity of both the module and the system it powers.
Advantages
A significant advantage of the PM150RL1A120 is the integration of various power components into one cohesive unit. This integration not only simplifies the design of the system but also reduces the physical space required, enhancing system reliability and streamlining assembly processes. Furthermore, its high-efficiency operation leads to lower running costs and a smaller environmental footprint, aligning with contemporary needs for sustainable and cost-effective power management in advanced electronic systems.
PM150RL1A120 in Stock
MITSUBISH is the manufacturer of the PM150RL1A120, which is available in stock at Nantian. The reference price for PM150RL1A120 can be found by referring to infineon tech or Nantian's listings. For detailed parameters and understanding its functionality, you can refer to the PM150RL1A120 datasheet PDF and pin diagram description that are available for download.

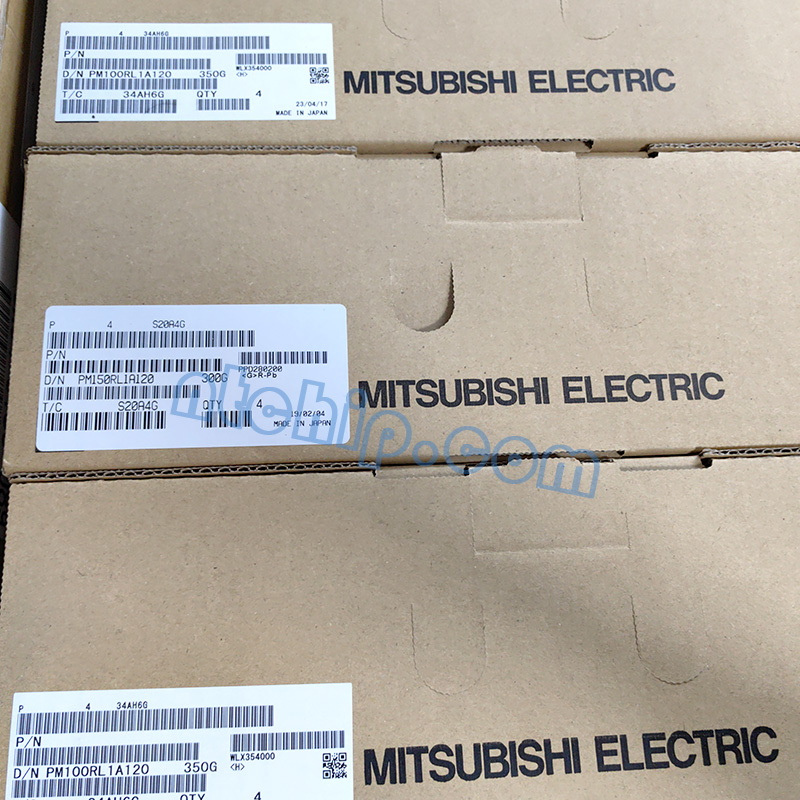

Three boxes of PM150RL1A120
The PM150RL1A120 has a wide range of applications as outlined in DSP Datasheet PDF. To further understand how it works, you can find usage methods along with circuit diagrams within these resources. For comprehensive electronics tutorials on using this component, these documents should prove highly beneficial.

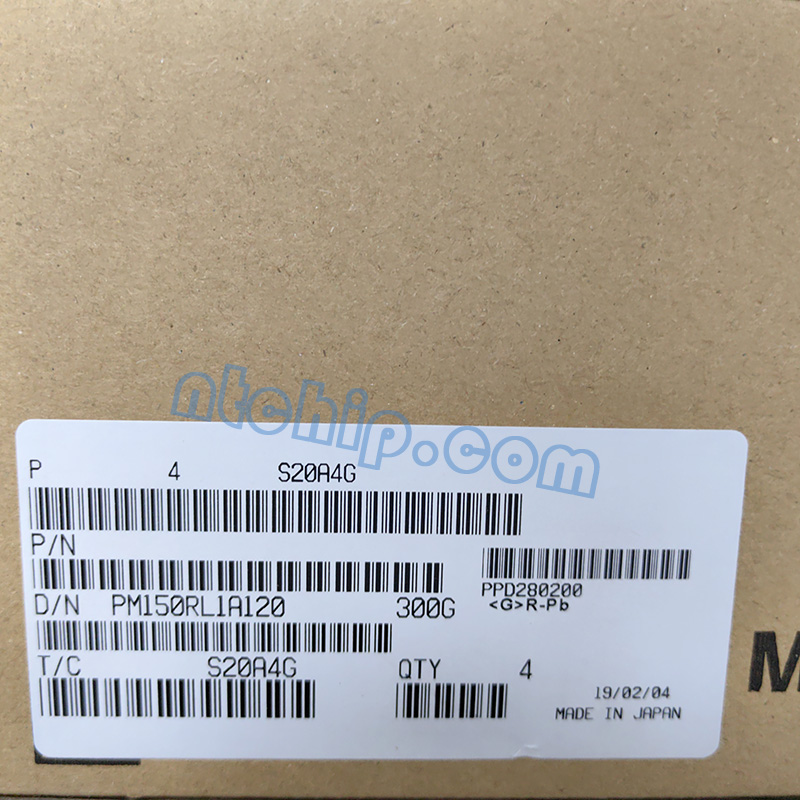

PM150RL1A120 Outer box label
All relevant information including datasheets, pin diagrams, circuit diagrams and tutorials related to PM150RL1A120 could be downloaded from Nantian's platform.
