What is the M29F800FB55M3F2 TR used for?

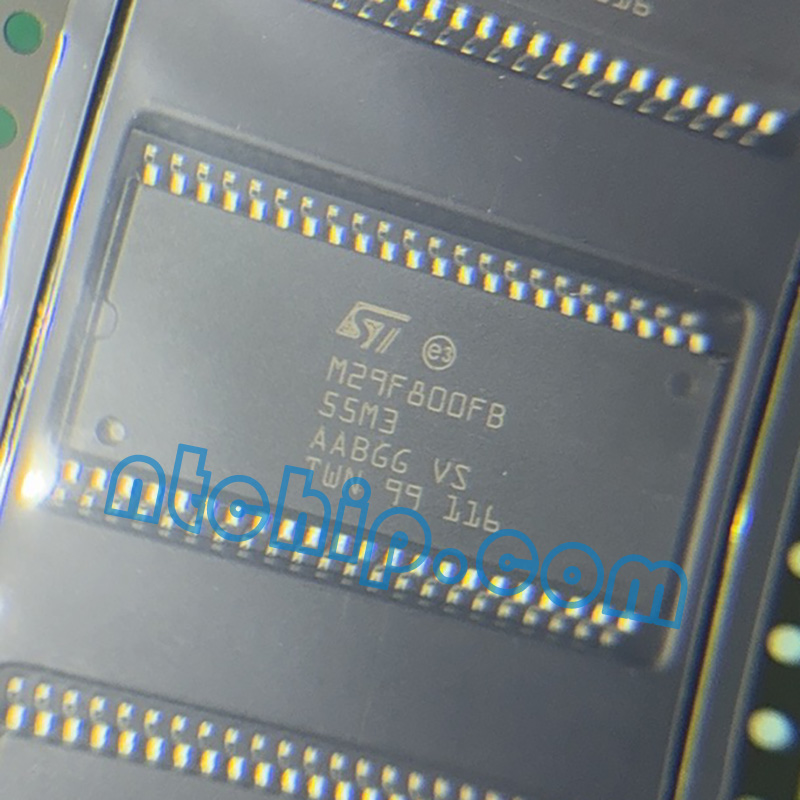

The M29F800FB55M3F2 TR is an 8Mbit NOR Flash memory device designed for non-volatile data storage in embedded systems. It is commonly used to store firmware, boot code, and configuration data in applications such as industrial controllers, automotive electronics, telecommunications equipment, and consumer devices. Thanks to its parallel interface and fast 55 ns access time, it allows systems to read data quickly, making it suitable for execute-in-place (XIP) operations where code runs directly from flash memory.
What are its key features?
This device features a NOR Flash architecture, which provides fast random access and high reliability for code storage. It operates with a parallel interface for efficient data transfer and supports sector-based erase and program operations for flexible memory management. The 44-pin SO package ensures easy PCB integration, while its non-volatile nature guarantees data retention even when power is removed. It is also designed for stable operation across a wide temperature range, making it suitable for demanding environments.
Does it have alternative parts?
Yes, there are alternative NOR Flash memory devices available. Compatible options may come from Micron or other manufacturers such as Macronix, Winbond, or Cypress (now Infineon). When selecting an alternative, it is important to match key parameters including memory density (8Mbit), interface type (parallel), access speed (around 55 ns), supply voltage, and package type. Pin compatibility and command set similarity are also critical to ensure seamless replacement without major design changes.
