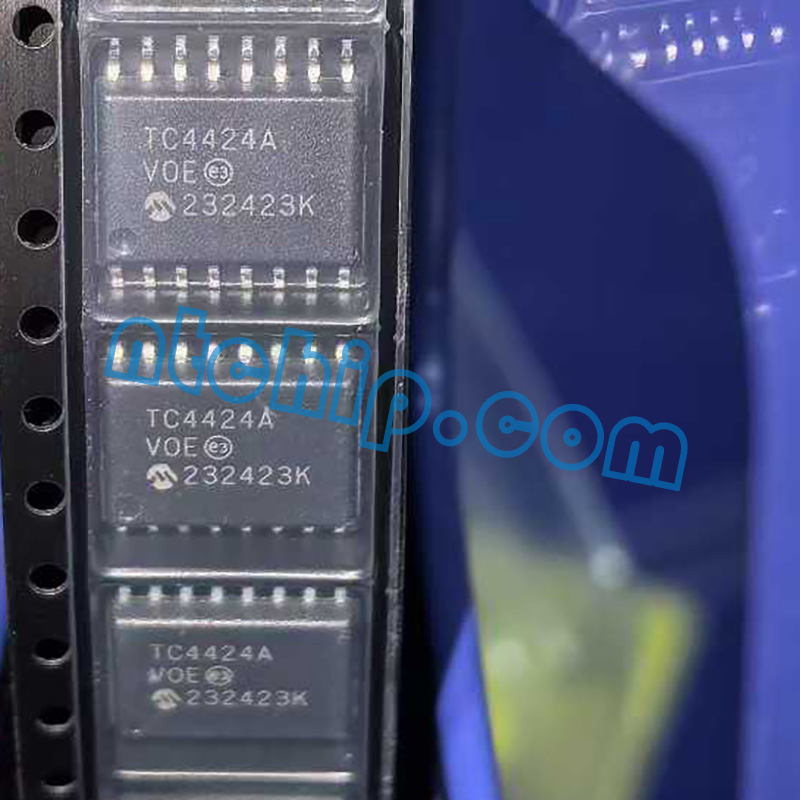

What are the key features of the TC4424AVOE713?
The TC4424AVOE713 is a low-side, non-inverting MOSFET gate driver IC with a high peak output current (≈4.5 A) to drive capacitive loads quickly and efficiently. It supports a wide supply range (4.5 V–18 V), has short delay times (~40 ns), matched rise/fall times, low supply and output currents, low output impedance, latch-up protection, and logic inputs tolerant of negative swings. It is available in compact SOIC and DFN packages and is pin-compatible with other devices in the TC442x family.
What is it used for?
This gate driver is used to control power MOSFETs and similar switches in power electronics designs where fast, reliable switching is required. Typical applications include DC-DC converters, motor drives, power supplies, lighting ballast circuits, and other systems requiring efficient control of high-current switching devices.
Are there alternative parts?
Yes. Alternatives include other members of the Microchip TC442x gate driver family (e.g., TC4423, TC4426A, TC4428A) depending on whether inverting/non-inverting operation or package differences are needed. Other manufacturers such as Texas Instruments, ON Semiconductor, and Analog Devices offer similar MOSFET gate drivers with comparable current ratings and features that may serve as alternatives based on system requirements.
