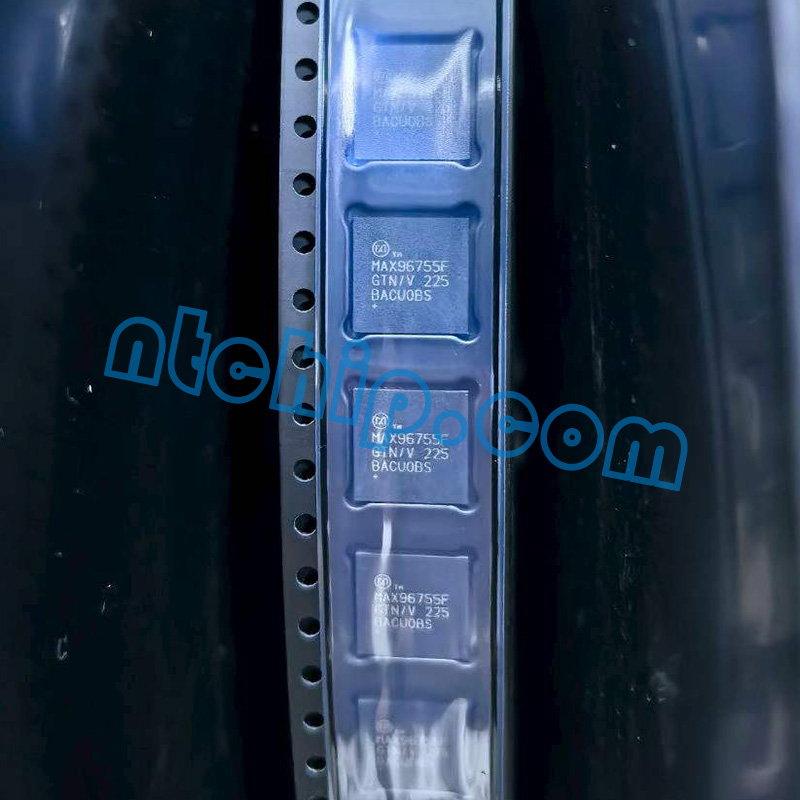

What are the key features of the MAX96755FGTN/V+T?
The MAX96755FGTN/V+T is a high‑speed deserializer designed for automotive and safety camera systems. It supports up to 1.74 Gbps serial bit rates and works with low‑cost 50 Ω coax or 100 Ω STP cables, offering adaptive equalization for long‑cable noise tolerance. Built‑in error detection and control‑data retransmission help maintain reliable communication, while features like horizontal/vertical sync tracking, multiple control modes (UART, I²C), and built‑in testing tools (PRBS, eye‑width monitor) improve system stability and verification. It also meets AEC‑Q100 automotive specifications with robust ESD protection and wide temperature support.
What is it used for?
This device is commonly used in automotive camera systems, advanced driver‑assistance (ADAS) applications, and other high‑resolution imaging setups where large amounts of video data need to be transmitted and processed reliably. Its ability to reduce EMI and simplify cable shielding makes it ideal for interior vehicle networks and multi‑camera systems.
Are there alternative parts?
Yes. Other automotive‑grade deserializers from Maxim’s GMSL family, such as the MAX96712, MAX96705, or MAX96706, can serve as alternatives depending on required data rates, channel counts, and feature sets. Comparable deserializer ICs from Texas Instruments (e.g., DP83TD510E) or Analog Devices’ FPD‑link series may also be considered, but ensure matching interface and performance requirements before substituting.
