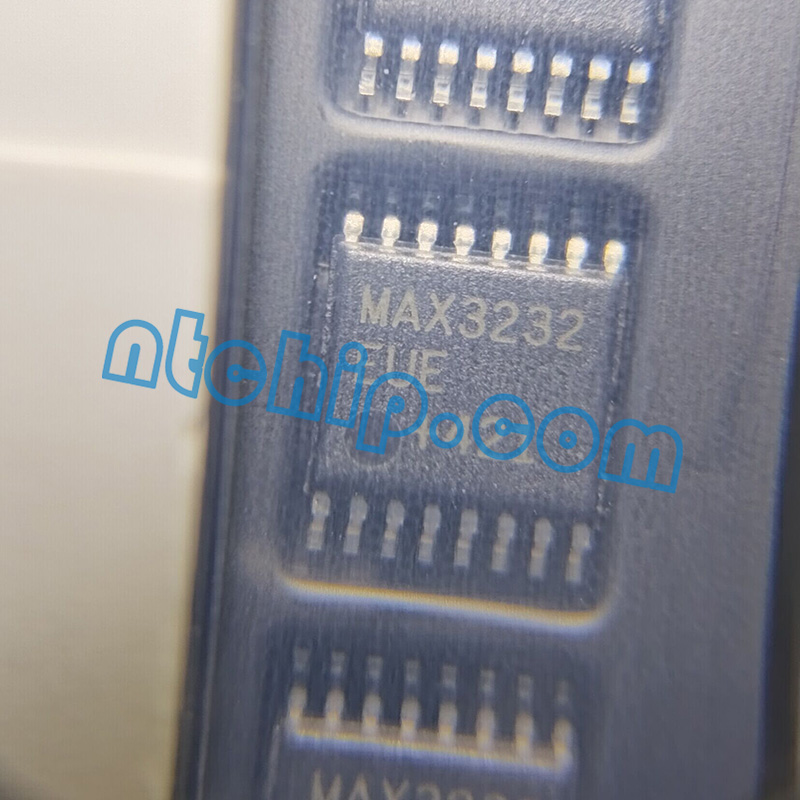

The MAX3232EUE+T from Maxim Integrated is a versatile RS-232 transceiver designed to enable reliable serial communication between TTL/CMOS logic and RS-232 standard devices. It supports two transmit and two receive channels, making it suitable for a wide range of communication applications such as industrial equipment, embedded systems, and portable electronics. Housed in a compact 16-TSSOP package, it integrates charge pump circuitry to generate the necessary RS-232 voltage levels, removing the need for an external bipolar ±12 V power supply. With a wide single-supply operating range from +3 V to +5.5 V, the device delivers strong signal compatibility while helping simplify board layout and system design.
Optimized for power-efficient operation, the MAX3232EUE+T significantly extends battery life in portable devices by offering ultra-low power consumption, including a 1 µA shutdown mode when the receiver remains active. It also features always-on extra outputs that allow system monitoring even during low-power states, improving control and safety in power-sensitive applications. With robust performance, integrated protection features, and ease of implementation, this transceiver helps engineers achieve dependable and cost-effective communication interfaces.
Nantian Electronics maintains a large inventory of MAX3232EUE+T components and offers comprehensive support including datasheets and pin configuration guidance. Customers are welcome to contact Nantian Electronics for quotations, technical assistance, and purchasing arrangements.
