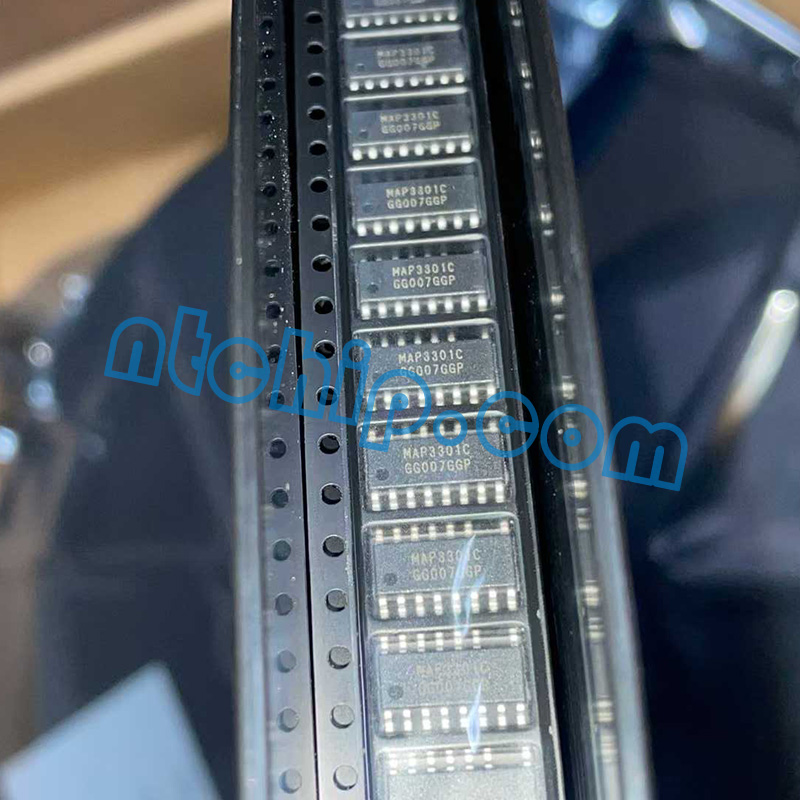

The MAP3301CSIRH by MAGNACHIP is a highly versatile and efficient LED driver, ideal for powering high brightness white LEDs used in LCD TVs, monitors, and general lighting applications. This device stands out with its broad input voltage range of 8.5V to 33V, accommodating a variety of power supplies and ensuring compatibility with different system designs. Encased in a compact SOIC-15 package, the MAP3301CSIRH integrates an internal dimming MOSFET which, along with support for both PWM and analog dimming, offers precise control over light intensity and energy usage.
Designed with a current mode control type and a fixed switching frequency of 100KHz, the MAP3301CSIRH ensures stable and efficient operation. It is equipped with multiple protection features, including programmable output over-voltage, input line voltage protection, and LED short current protection, which safeguard the device and the overall system against potential damage. The 'Power Good' indication provides a reliable status output that can be crucial for system monitoring and diagnostics.
Nantian Electronics, as a professional distributor, stocks a substantial inventory of MAP3301CSIRH units and offers detailed technical resources like datasheets and pin diagrams to support your project needs effectively. If you are interested in purchasing, contact us for a competitive quote and expert assistance.
