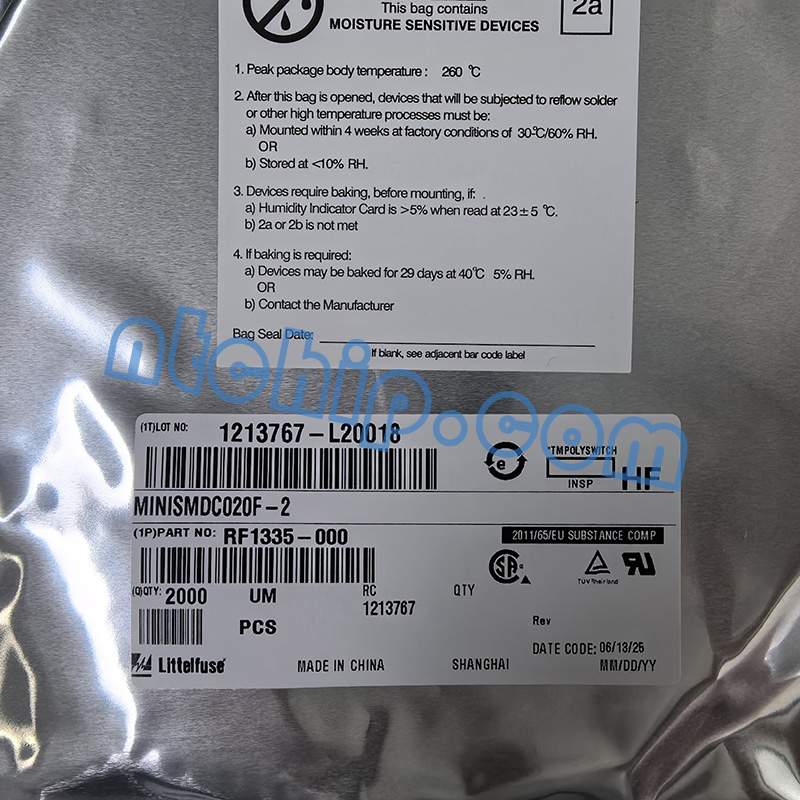

Q1: What is the MINISMDC020F-2?
The MINISMDC020F-2 is a polymeric PTC resettable fuse designed to protect electronic circuits from overcurrent conditions. It automatically limits current flow when excessive current is detected and resets itself once the fault is cleared, providing reliable and reusable circuit protection.
Q2: What are the key features of the MINISMDC020F-2?
This device features a hold current of 200 mA and can operate up to 30V. It has a small 1812 surface-mount footprint with a concave design for easy PCB integration. It offers low resistance for efficient current flow, fast response to overcurrent events, and complies with safety standards like UL 1434 and IEC 60730-1. Additionally, it is RoHS compliant, lead-free, and halogen-free.
Q3: What applications is the MINISMDC020F-2 used for?
The MINISMDC020F-2 is commonly used in consumer electronics, communication devices, power supplies, and portable equipment where protection against short circuits and overloads is essential. Its resettable nature makes it ideal for devices that require maintenance-free and reliable overcurrent protection.
Q4: How does a polymeric PTC resettable fuse work?
When the current exceeds the fuse’s hold rating, the device heats up and increases its resistance sharply, limiting the current flow. Once the fault is cleared and power is removed, the fuse cools down and returns to its low-resistance state, restoring normal operation without needing replacement.
Q5: Why choose the MINISMDC020F-2 over traditional fuses?
Unlike traditional one-time fuses, the MINISMDC020F-2 resets automatically after an overcurrent event, reducing maintenance and replacement costs. Its compact size and surface-mount design also make it ideal for modern, space-constrained electronic devices.
