Introduction to the LT1640LIS8#TR by Analog Devices Inc.
The LT1640LIS8#TR, created by Analog Devices Inc., is a sophisticated component crucial for managing power within electronic systems. This device acts as a hot swap controller, enabling the safe insertion and removal of circuit boards from powered systems without causing interruptions or damage. Its primary function is to safeguard systems operating at -48V, such as telecom and server equipment, from electrical surges and shorts. The LT1640LIS8#TR is especially designed for applications that demand high reliability and operational safety.

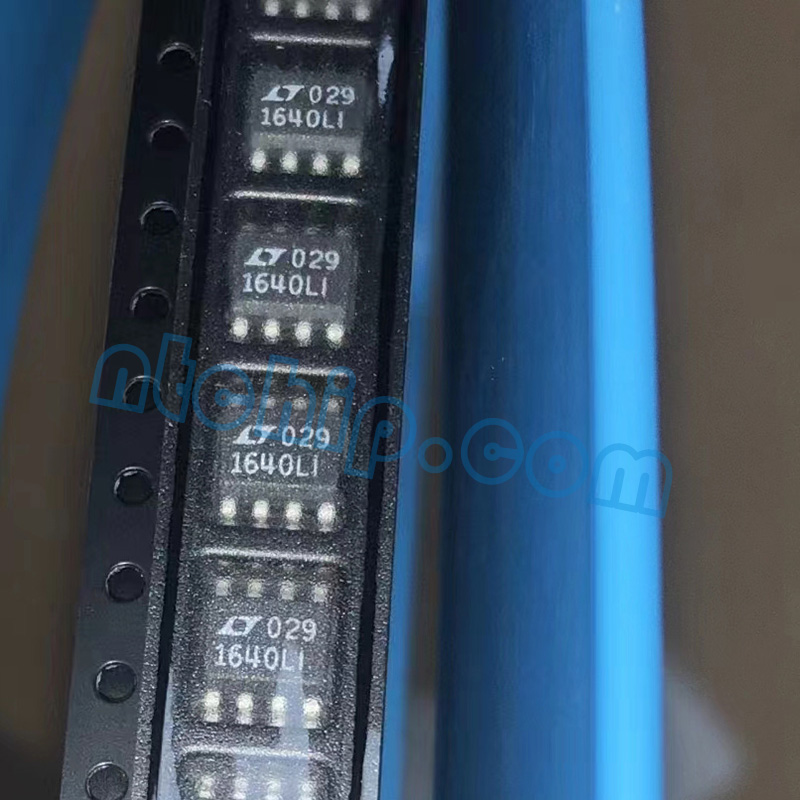

ADI LT1640LIS8#TR
As a professional ADI distributor, Nantian Electronic has a large number of LT1640LIS8#TR in stock. We also provide LT1640LIS8#TR parameters, LT1640LIS8#TR Datasheet PDF and pin diagram instructions for download.
Technical Specifications
At its core, the LT1640LIS8#TR offers a flexible operating voltage range from -10V to -80V, accommodating a wide array of power needs. This range ensures compatibility with various system voltages, particularly in industrial environments. It is noteworthy for its singular channel operation and the absence of internal switches, allowing for external control over power flow. This design enhances its adaptability to different circuit configurations, making it a versatile choice for designers.
Programmable Flexibility
One of the LT1640LIS8#TR's key advantages is its programmable features, which include adjustable thresholds, circuit breaker functionality, fault timeout, overvoltage protection (OVP), and undervoltage lockout (UVLO). These features can be customized to meet specific circuit protection needs, offering a tailored approach to safeguarding sensitive electronic components from a variety of electrical faults.
Compact and Efficient Design
The device's compact dimensions, with a length of 4.9mm, width of 3.9mm, and a maximum seated height of 1.75mm, make it ideal for dense circuit board layouts where space is at a premium. Despite its small size, it operates efficiently within an industrial temperature grade ranging from -40°C to 85°C, ensuring reliable performance under extreme conditions. Its design is optimized for surface mount technology, facilitating easier assembly and integration into various applications.

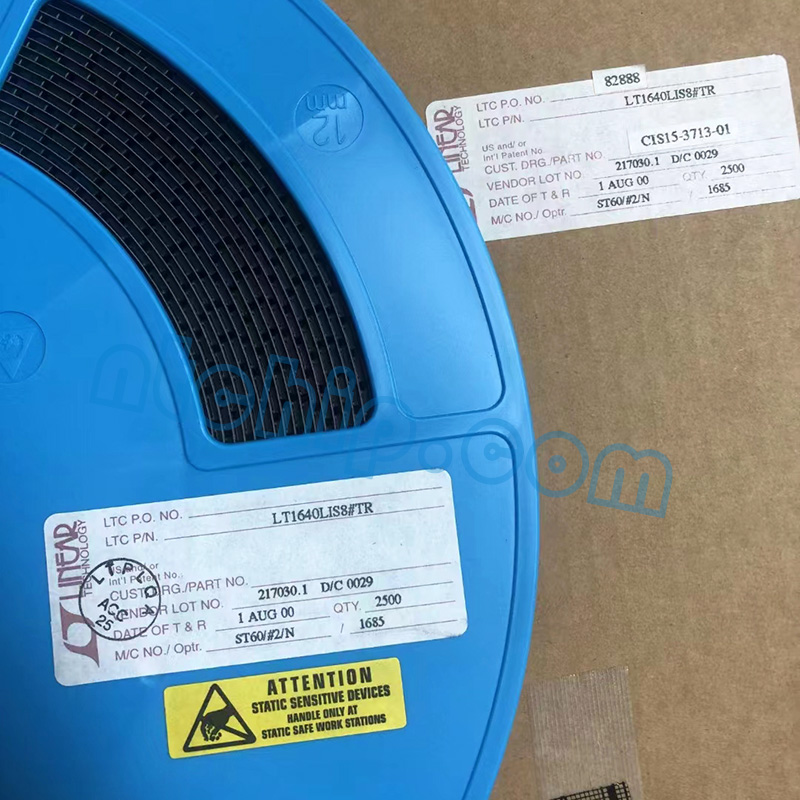

Original LT1640LIS8-TR package in stock
Application and Features
Power Supply Support Circuit: The LT1640LIS8#TR excels in providing critical support for power supply circuits, ensuring stable operation and protection against unexpected power variances.
Programmable Thresholds: Its ability to adjust thresholds offers precise control over voltage levels, critical for preventing damage due to overvoltage or undervoltage conditions.
Robust Temperature Performance: Capable of operating across a wide temperature range, the device is suited for industrial applications where reliability under varying environmental conditions is paramount.
Non-RoHS Compliance: It's important to note that this particular model is not compliant with RoHS, which may affect its use in certain jurisdictions or applications focused on environmental standards.
In summary, the LT1640LIS8#TR from Analog Devices Inc. is a critical component in power management and protection, offering a combination of programmability, compactness, and efficiency. Its design and features cater to a wide range of applications, ensuring safe and reliable operation of electronic systems across different industrial domains.
