LEM USA Inc. LAX100-NP

Manufacturer Part Number :	LAX100-NP
Manufacturer :	LEM USA Inc.
Description :	SENSOR CURRENT TRANSDUCES HALL SELECTABLE
Datasheet :	LAX100-NP.PDF
EDA / CAD Models :	LAX100-NP by SnapEDA
Base Product Number :	LAX100
Stock Condition :	In Stock 289, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

LEM USA Inc. LAX100-NP

In Stock: 289 Qty:

RFQ Now Add to RFQ list

The LAX100-NP from LEM USA Inc. is a versatile current sensor module. It's a compact, single-channel device utilizing Hall effect technology to precisely measure alternating current (AC) or direct current (DC) in a range of selectable values: 16.7A, 25A, 33.3A, 50A, or 100A. This closed-loop, bidirectional design ensures accurate and reliable readings, even with fluctuating current levels. The module's compact form factor makes it a practical choice for integration into various electronic projects.

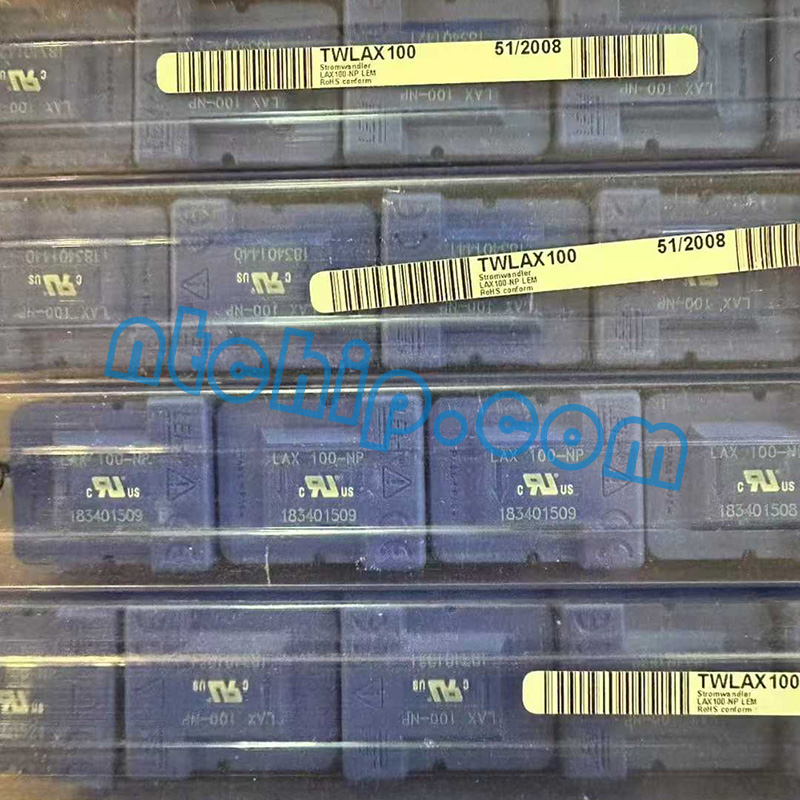

LEM USA Inc. LAX100-NP Sensor module

Nantian Electronics, a trusted distributor for LEM USA Inc., holds a substantial stock of LAX100-NP current sensors. We offer comprehensive support, including detailed specifications and datasheets, to help you select and integrate this high-performance current measurement solution into your systems.

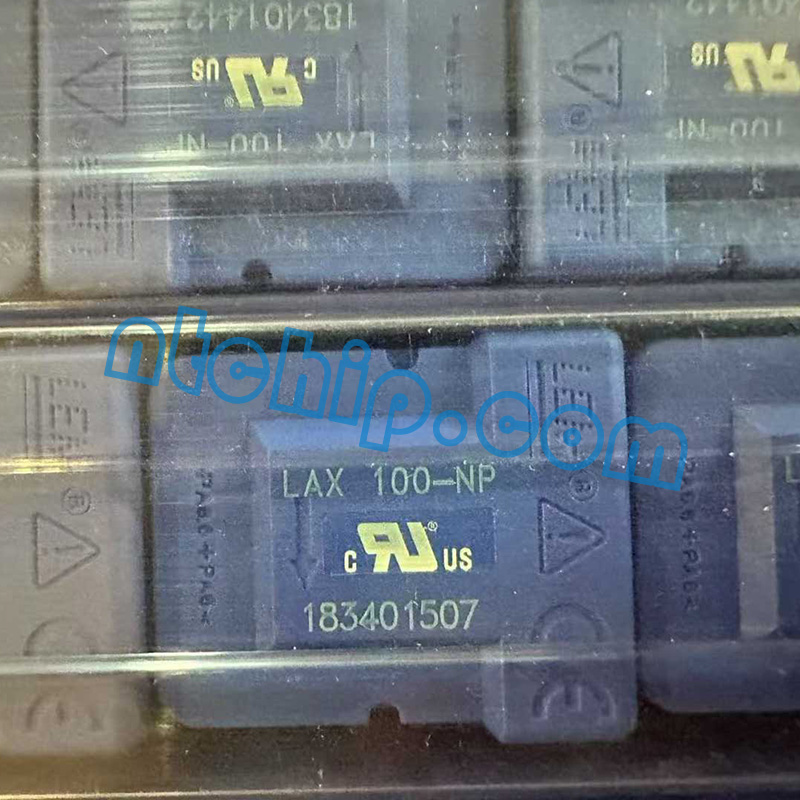

LEM USA Inc. LAX100-NP current transduce module

Type	Description
Category	Sensors, Transducers Current Transduces
Mfr	LEM USA Inc.
Series	LAX
Packaging	Tube
Part Status	Not For New Designs
For Measuring	AC/DC
Sensor Type	Hall Effect, Closed Loop
Current - Sensing	16.7A, 25A, 33.3A, 50A, 100A (Selectable)
Number of Channels	1
Output	Ratiometric, Current
Sensitivity	0.5mA/A
Frequency	DC ~ 300kHz
Linearity	±0.1%
Accuracy	±0.91%
Voltage - Supply	±11.4V ~ 15.75V
Response Time	0.2µs
Current - Supply (Max)	62mA
Operating Temperature	-40°C ~ 85°C
Polarization	Bidirectional
Mounting Type	Through Hole
Package / Case	Module
Supplier Device Package	-
