Name: SM04B-SURS-TF(LF)(SN)
Brand: JST
SKU: SM04B-SURS-TF(LF)(SN)
Rating: 5.0 (1 reviews)

JST SM04B-SURS-TF(LF)(SN)

Manufacturer Part Number :	SM04B-SURS-TF(LF)(SN)
Manufacturer :	JST
Description :	CONN HEADER SMD R/A 4POS 0.8MM
Package :	4POS
Datasheet :	SM04B-SURS-TF(LF)(SN).PDF
EDA / CAD Models :	SM04B-SURS-TF(LF)(SN) by SnapEDA
Base Product Number :	SM04
Stock Condition :	In Stock 35670, New Original

Delivery:

Payment:

The JST SM04B-SURS-TF(LF)(SN) is a compact, surface-mount connector header. Designed for right-angle connections, it offers four positions spaced at 0.031 inches (0.80mm). Its small size and right-angle configuration make it ideal for applications where space is constrained, such as in printed circuit boards (PCBs) or embedded systems. This connector is a reliable choice for connecting to other components in electronic devices.

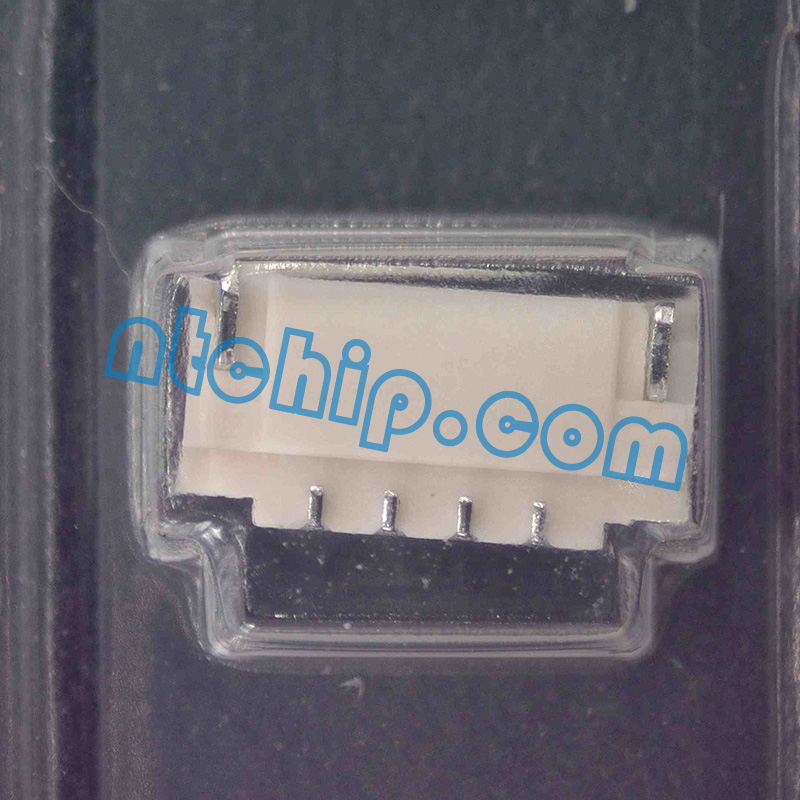

JST SM04B-SURS-TF(LF)(SN) connector chip

Nantian Electronics, your trusted JST distributor, holds a substantial stock of SM04B-SURS-TF(LF)(SN) connectors. We provide comprehensive support materials, including detailed specifications and schematics, making it easy for you to integrate this connector into your projects. Contact us today for pricing and availability. We're committed to providing high-quality components and exceptional service.

JST SM04B-SURS-TF(LF)(SN) original reel label

Type	Description
Category	Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Mfr	JST
Series	SUR
Packaging	Tape & Reel (TR)
Part Status	Active
Connector Type	Header
Contact Type	Outer Shroud Contact
Pitch - Mating	0.031" (0.80mm)
Number of Positions	4
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	-
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.069" (1.75mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Operating Temperature	-25°C ~ 85°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	0.2A, 0.5A
Voltage Rating	30V
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	SM04B-SU
