IXYS VUO50-14N03

The VUO50-14N03 from IXYS is a robust three-phase bridge rectifier designed for efficient and reliable performance in various applications requiring rectification. This component is capable of handling a peak reverse voltage of up to 1.4 kV and supports a maximum surge current of 500 A, making it suitable for high-demand environments. The forward voltage is rated at 1.9 V, ensuring efficient conduction with minimal power loss. It is designed with a screw mount and quick connect termination style, which facilitates easy installation and maintenance. The rectifier operates within a wide temperature range from -40°C to +125°C, accommodating extreme conditions. With dimensions of 63 mm in length, 31.6 mm in width, and 21 mm in height, the VUO50-14N03 is compact yet powerful, packaged in bulk for practical handling and use.

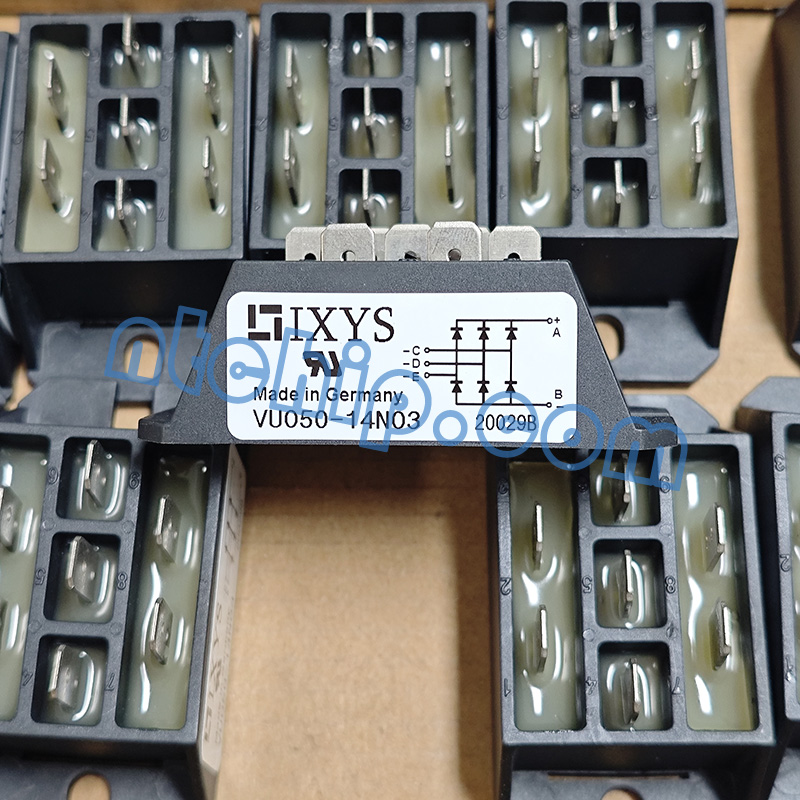

VUO50-14N03

As a professional IXYS distributor, Nantian Electronics has a large number of VUO50-14N03 in stock. We also provide VUO50-14N03 parameters, VUO50-14N03 Datasheet PDF and pin diagram instructions for download.

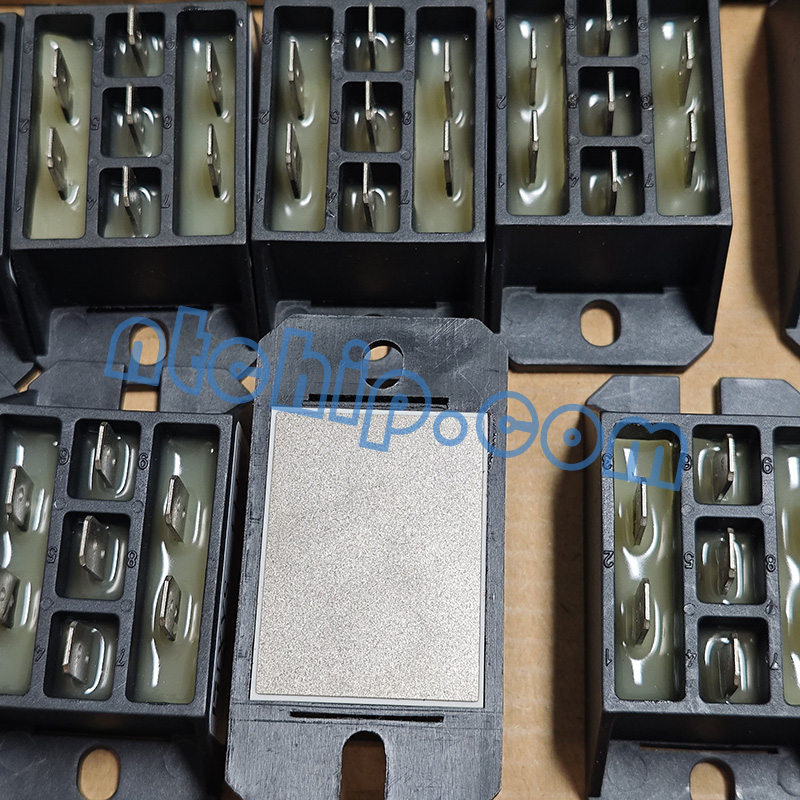

VUO50-14N03 back

Features / Advantages:

• Package with DCB ceramic

• Improved temperature and power cycling

• Planar passivated chips

• Very low forward voltage drop

• Very low leakage current

Applications:

• Diode for main rectification

• For three phase bridge configurations

• Supplies for DC power equipment

• Input rectifiers for PWM inverter

• Battery DC power supplies

• Field supply for DC motors

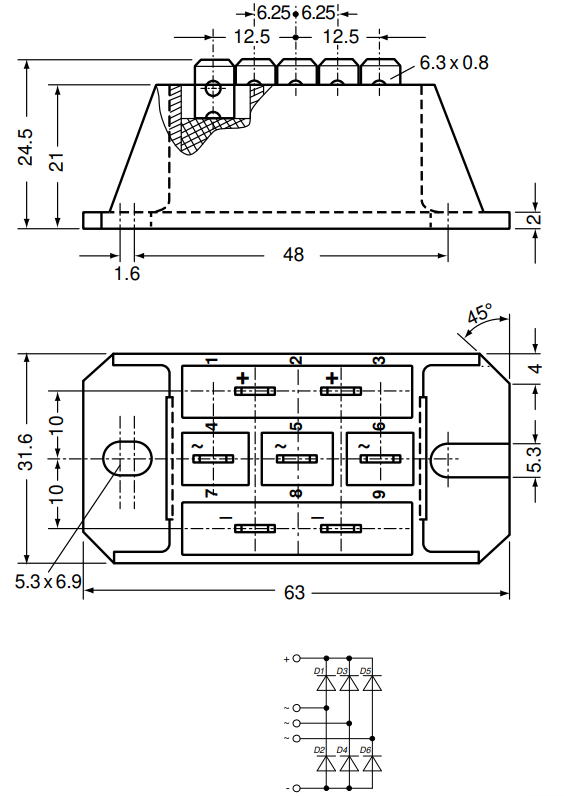

Outline dimension

The size information of VUO50-14N03 is as follows:

VUO50-14N03 Dimension
