Renesas / Intersil ISL6377HRZ-T Voltage Regulator
The Renesas / Intersil ISL6377HRZ-T is a versatile voltage regulator designed to support AMD SVI 2.0 serial data bus interface, with a serial VID clock frequency range of 100kHz to 25MHz. This dual output controller features integrated drivers, including two dedicated core drivers and one programmable driver for either core or Northbridge. With precision voltage regulation offering 0.5% system accuracy over-temperature and a voltage range of 0.5V to 1.55V in 6.25mV steps, this regulator also supports multiple current sensing methods such as lossless inductor DCR current sensing and precision resistor current sensing.

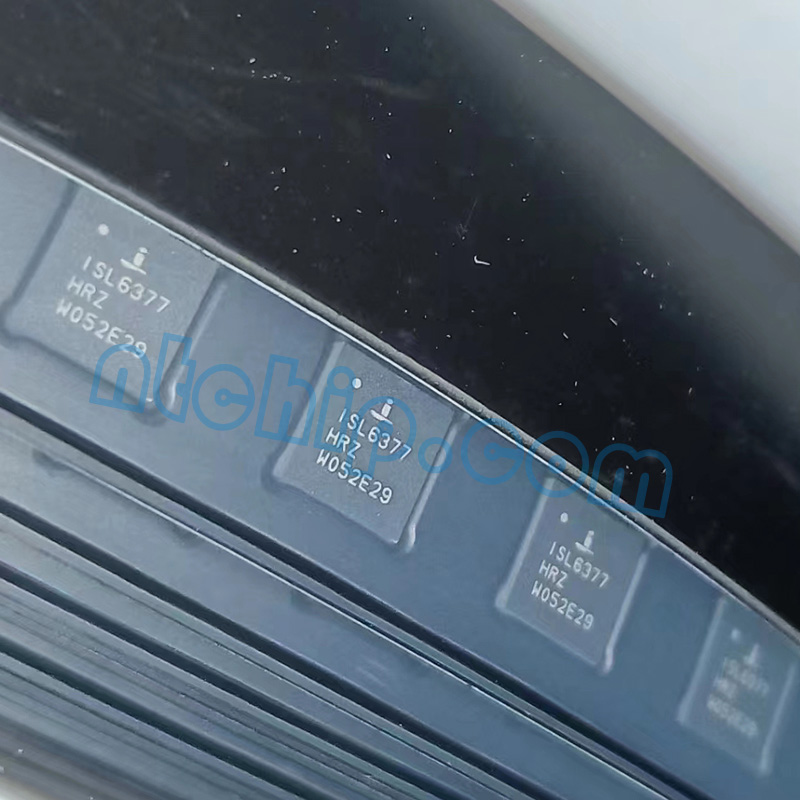

ISL6377HRZ
Additionally, it provides programmable phase options, adaptive body diode conduction time reduction, superior noise immunity, output current and voltage telemetry, differential remote voltage sensing, high efficiency across the load range, programmable slew rate, VID offset, droop settings, switching frequency control, dynamic current balance between phases, and comprehensive protection features including OCP/WOC, OVP, PGOOD, and thermal monitoring.
Package Outline
The size information of ISL6377HRZ-T is as follows:

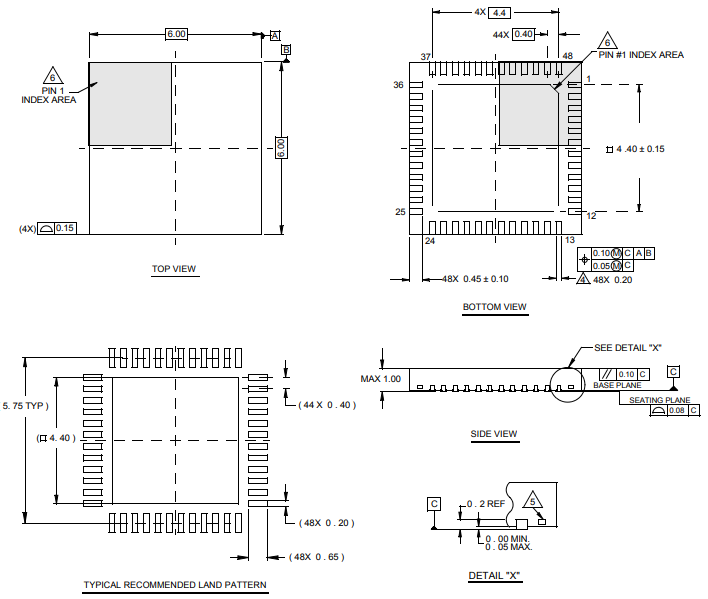

ISL6377HRZ-T Package Outline
Features
Supports AMD SVI 2.0 serial data bus interface
- Serial VID clock frequency range 100kHz to 25MHz
Dual output controller with integrated drivers
- Two dedicated core drivers
- One programmable driver for either core or Northbridge
Precision voltage regulation
- 0.5% system accuracy over-temperature
- 0.5V to 1.55V in 6.25mV steps
- Enhanced load line accuracy
Applications
Intersil is the manufacturer of the ISL6377HRZ-T, which is available in stock at Nantian. The reference price for ISL6377HRZ-T can be found by referring to Intersil or Nantian's listings. For detailed parameters and understanding its functionality, you can refer to the ISL6377HRZ-T datasheet PDF and pin diagram description that are available for download.
Original ISL6377HRZ-T in Stock
The ISL6377HRZ-T has a wide range of applications as outlined in DSP Datasheet PDF. To further understand how it works, you can find usage methods along with circuit diagrams within these resources. For comprehensive electronics tutorials on using this component, these documents should prove highly beneficial.
All relevant information including datasheets, pin diagrams, circuit diagrams and tutorials related to ISL6377HRZ-T could be downloaded from Nantian's platform.
