Infineon Technologies IPW65R065C7

Manufacturer Part Number :	IPW65R065C7
Manufacturer :	Infineon Technologies
Description :	MOSFET N-Channel 650V 33A TO247-3
Datasheet :	IPW65R065C7.PDF
EDA / CAD Models :	IPW65R065C7 by SnapEDA
Base Product Number :	IPW65
Stock Condition :	In Stock 12812, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Infineon Technologies IPW65R065C7

In Stock: 12812 Qty:

RFQ Now Add to RFQ list

Introducing the IPW65R065C7 from Infineon Technologies, a product designed with professionals in mind. What sets this model apart is its increased MOSFET dv/dt ruggedness, able to withstand challenging working conditions, proving its robustness and reliability. It promises better efficiency, thanks to its best-in-class Figures of Merit for RDS(on)*Eoss and RDS(on)*Qg. The exceptional RDS(on) per package ratio further enhances its performance, making it a superior choice for those in pursuit of excellence.

IPW65R065C7 Infineon Technologies

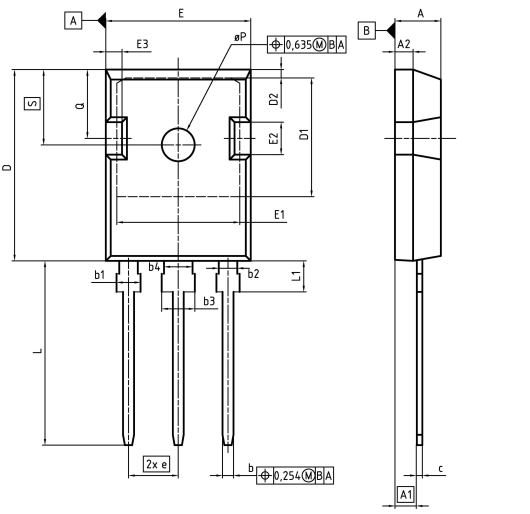

IPW65R065C7 Dimension

The IPW65R065C7 is amazingly easy to use and drive, making it an approachable piece of technology, despite its advanced features. Environmentally responsible, it features lead-free plating and a halogen-free mold compound. It is qualified for industrial-grade applications according to JEDEC (J-STD20 and JESD22). As a leading distributor of Infineon Technologies, Nantian Electronics stocks a large number of IPW65R065C7 models always at the ready, allowing us to service and support customers efficiently. This model along with its datasheet PDF and pin diagram instructions are readily available for download to facilitate your understanding and usage.

Type	Description
Mfr	Infineon Technologies
Series	CoolMOS™ C7
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	33A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	65mOhm @ 17.1A, 10V
Vgs(th) (Max) @ Id	4V @ 850µA
Gate Charge (Qg) (Max) @ Vgs	64 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3020 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	171W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO247-3
Package / Case	TO-247-3
