Q1: What are the main features of Infineon Technologies F3L200R12W2H3_B11?

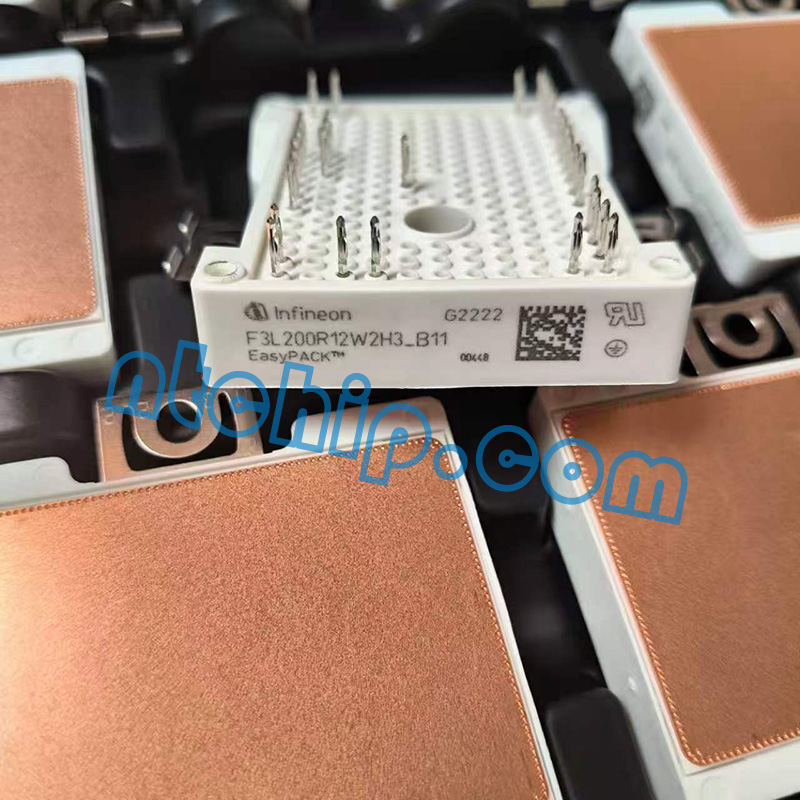

A: F3L200R12W2H3_B11 is a 1200 V, 200 A three level IGBT module using Infineon IGBT3 H3 technology. It features an active Neutral Point Clamp 2 topology, high speed IGBT technology, low switching losses, low VCEsat, low inductance construction, integrated NTC temperature sensing, and PressFIT contact technology. The module uses an EasyPACK 2B housing and is designed for high power industrial applications.
Q2: What is F3L200R12W2H3_B11 used for?
A: This module is designed for three level power conversion applications such as motor drives, photovoltaic central inverters, uninterruptible power supplies, EV charging equipment, and other industrial power conversion systems. Its three level topology and low switching losses make it suitable for applications requiring efficient switching and controlled power conversion.
Q3: Does F3L200R12W2H3_B11 have any alternative manufacturer and part number?
A: Direct drop in alternatives are limited because the three level topology, voltage and current ratings, internal circuit configuration, package, PressFIT connections, thermal characteristics, and switching parameters must match. Related Infineon parts such as F3L150R12W2H3_B11 and F3L200R12N2H3_B47 may be considered for comparison, but they should not be treated as direct replacements without detailed verification. Similar three level IGBT modules from other manufacturers can also be evaluated according to voltage, current, topology, package, switching performance, and cooling requirements.
Q4: Is technical support available for F3L200R12W2H3_B11?
A: Yes. Technical support can cover three level inverter design, gate drive requirements, switching losses, thermal management, NTC temperature sensing, PressFIT installation, PCB and busbar layout, protection requirements, and replacement evaluation. Nantian Electronics can also provide F3L200R12W2H3_B11 parameters, datasheet PDF, pin diagram information, quotation, and purchasing support.
