Introduction to IKW40N65ES5
The IKW40N65ES5 is a high-performance IGBT (Insulated Gate Bipolar Transistor) module manufactured by Infineon Technologies. This device is specifically designed to deliver efficient power switching and robust performance in a variety of applications, ranging from industrial motor drives to renewable energy systems. With its advanced features and reliable operation, the IKW40N65ES5 is a versatile solution for high-power applications requiring precise control and high reliability.

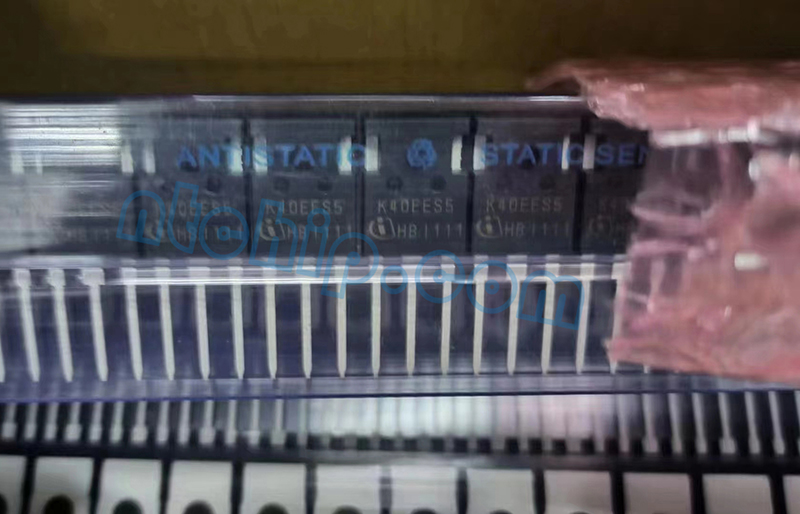

Original Infineon IKW40N65ES5
Infineon is the manufacturer of the IKW40N65ES5, which is available in stock at Nantian. The reference price for IKW40N65ES5 can be found by referring to Infineon or Nantian's listings. For detailed parameters and understanding its functionality, you can refer to the IKW40N65ES5 datasheet PDF and pin diagram description that are available for download.
The IKW40N65ES5 has a wide range of applications as outlined in DSP Datasheet PDF. To further understand how it works, you can find usage methods along with circuit diagrams within these resources. For comprehensive electronics tutorials on using this component, these documents should prove highly beneficial.

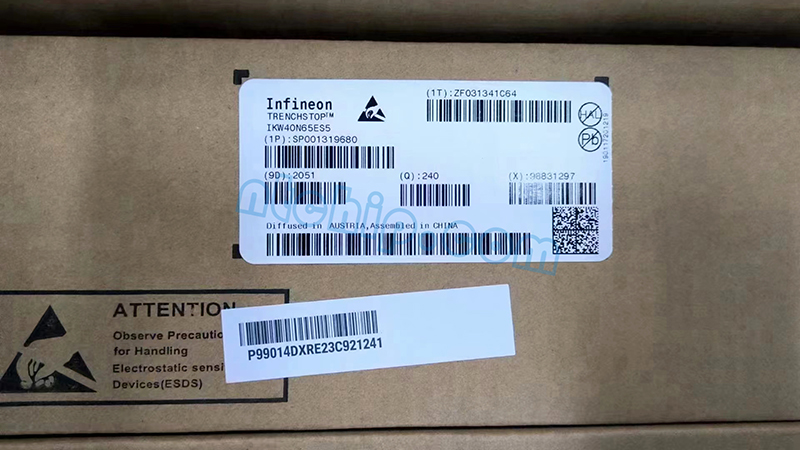

IKW40N65ES5 In Stock
All relevant information including datasheets, pin diagrams, circuit diagrams and tutorials related to IKW40N65ES5 could be downloaded from Nantian's platform.
Key Features
The IKW40N65ES5 offers a range of features that make it stand out in the market:
High Power Capability: Capable of handling high power levels, making it suitable for demanding industrial applications.
Low Switching Losses: Designed for low switching losses, ensuring high efficiency and minimal heat generation during operation.
Robust Construction: Built with high-quality materials and advanced semiconductor technology, ensuring reliability and durability under harsh operating conditions.
Integrated Temperature Monitoring: Features integrated temperature monitoring capabilities, allowing for real-time temperature feedback and protection against overheating.
High Input Impedance: Offers high input impedance, facilitating easy control and integration into various circuit designs.
Applications
The IKW40N65ES5 finds application in a wide range of industries and systems:
Industrial Motor Drives: Used in motor drives for pumps, fans, compressors, and other industrial machinery requiring precise speed and torque control.
Renewable Energy Systems: Deployed in inverters for solar and wind power systems, enabling efficient conversion of DC power to AC power for grid integration.
Electric Vehicle Chargers: Utilized in fast chargers for electric vehicles, providing high-power switching for rapid charging cycles.
Power Supplies: Integrated into high-power switching power supplies for efficient voltage regulation and power delivery.
Welding Equipment: Incorporated into welding machines for precise control of current and voltage during welding operations.
Advantages
The IKW40N65ES5 offers several advantages that make it a preferred choice for designers and engineers:
High Efficiency: Low switching losses and high power capability contribute to overall system efficiency, reducing energy consumption and operating costs.
Reliability: Built with Infineon's renowned quality standards, the IKW40N65ES5 ensures long-term reliability and performance stability.
Flexibility: Suitable for a wide range of applications, from industrial to renewable energy, thanks to its versatile performance characteristics.
Advanced Protection Features: Integrated temperature monitoring and other protection features ensure safe and reliable operation under varying conditions.
Compact Design: Compact form factor and integrated features simplify system design and reduce overall footprint, saving space and cost.
Technical Specifications
The technical specifications of the IKW40N65ES5 highlight its capabilities:
Maximum Voltage Rating: 650V, suitable for high-voltage applications.
Maximum Current Rating: 40A, capable of handling significant power loads.
Maximum Operating Temperature: -40°C to 150°C, allowing for operation in a wide range of environmental conditions.
Package Type: TO-247, facilitating easy mounting and heat dissipation.
Gate Threshold Voltage: 3V, enabling precise control over switching operations.
