Q1: What is the FF1000R17IE4?

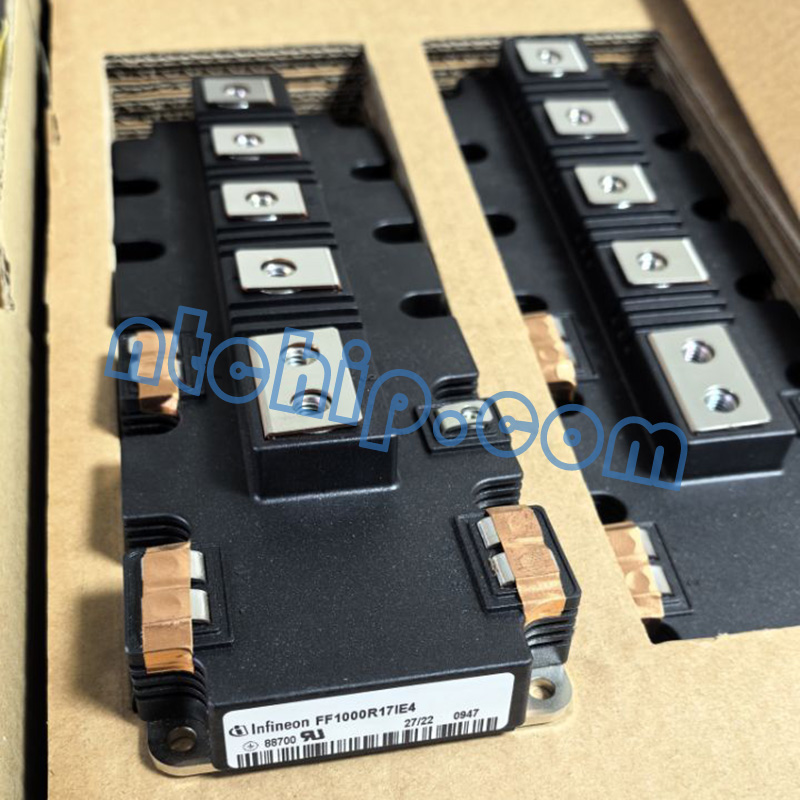

The FF1000R17IE4 is a high-power IGBT (Insulated Gate Bipolar Transistor) module from Infineon, built in a half-bridge configuration in a PrimePACK™ 3 housing. It’s rated for 1,000 A of current and can block voltages up to 1,700 V, leveraging Infineon’s IGBT4 (E4) technology.
Q2: What are the main features of this module?

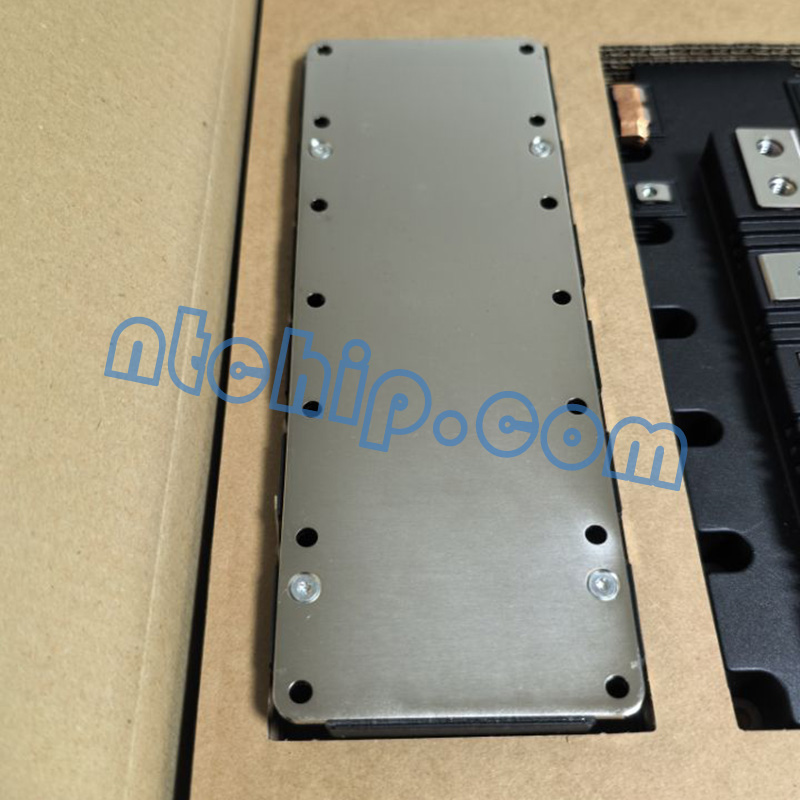

Key features include low conduction losses thanks to a low VCE(sat) (around 2 V), extended operating junction temperature up to 150 °C, and high current density for efficient power conversion. It is also designed for robustness with strong DC stability, high creepage and clearance distances, and a copper base plate to manage thermal stress.
Q3: What is this IGBT module used for?
This module is ideal for large-scale power applications such as renewable energy inverters (solar, wind), industrial motor drives, power utilities, and traction systems (e.g., railway). It is suited where both high voltage and high current are required, and where efficiency and thermal performance matter.
Q4: Are there recommended drivers or companion parts for it?
Yes. For driving the FF1000R17IE4, the SCALE-2 plug-and-play driver 2SP0320‑series from Power Integrations is designed specifically for PrimePACK IGBT modules. This is driver offers two channels, built-in DC/DC conversion, short-circuit protection, and supports parallel operation.
Q5: What are some alternative parts to the FF1000R17IE4?
Alternatives depend on the application’s voltage and current requirements. You might consider other high-power IGBT modules from Infineon or competing manufacturers. When selecting an alternative, compare specifications such as voltage class, current rating, package style, and thermal performance. One should review equivalent modules (e.g., other 1,700 V IGBT modules) but always verify compatibility for your design’s switching frequency, cooling, and gate drive conditions.
