Littelfuse Inc. 60R010XPR

60R010XPR Dimension

The size information of 60R010XPR is as follows:

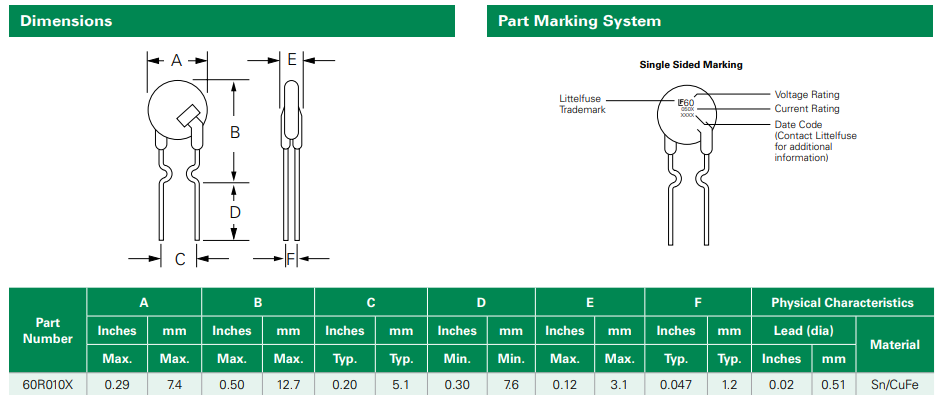

60R010XPR Dimensions

Introduction to 60R010XPR by Littelfuse Inc.

The 60R010XPR is a polymeric positive temperature coefficient (PPTC) device, also known as a resettable fuse, manufactured by Littelfuse Inc. This component is designed to provide overcurrent protection in electronic circuits, automatically resetting after a fault condition clears and the current flow returns to safe levels. Its versatility and reliability make it suitable for a wide range of applications, particularly in consumer electronics and automotive systems.

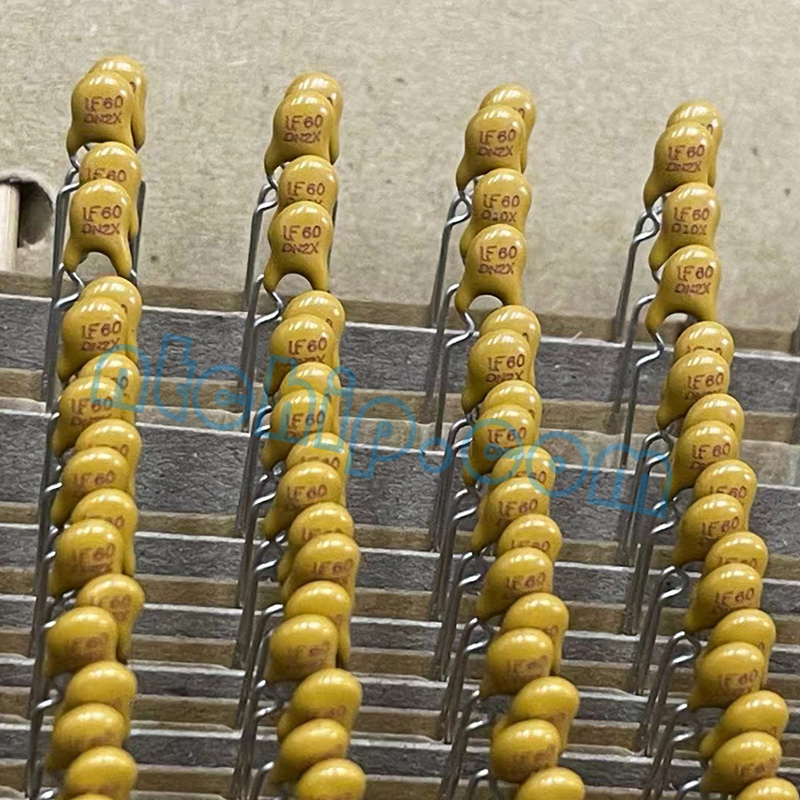

60R010XPR

As a professional Littelfuse distributor, Nantian Electronic has a large number of 60R010XPR in stock. We also provide 60R010XPR parameters, 60R010XPR Datasheet PDF and pin diagram instructions for download.

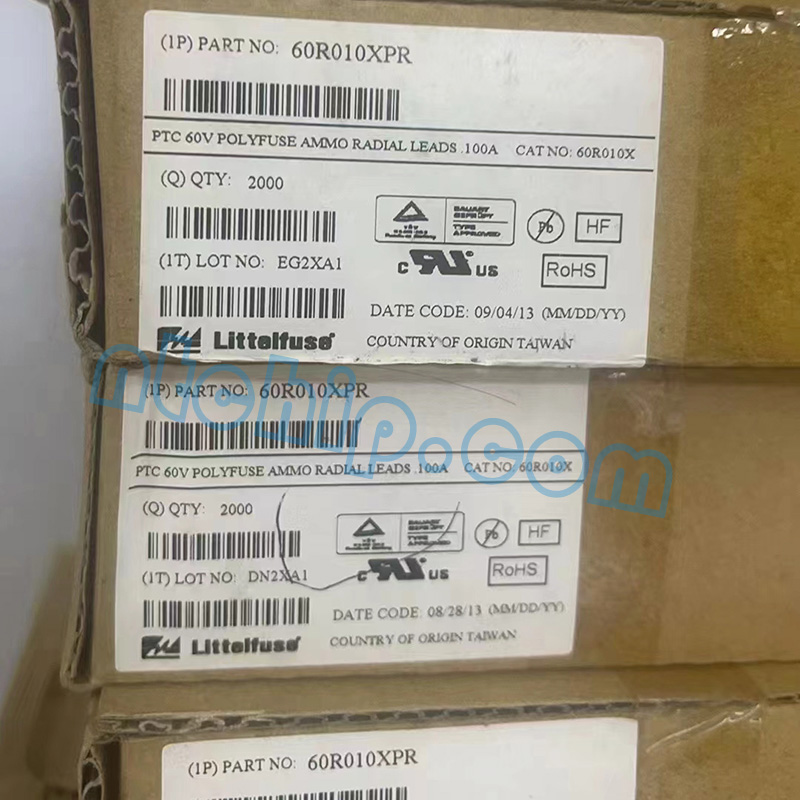

60R010XPR Package in Stock

Key Specifications

• Voltage and Current Ratings: The device supports a maximum voltage of 60V and has a hold current of 100 mA with a trip current of 200 mA.

• Time to Trip: It features a time to trip of 4 seconds, providing quick response to fault conditions to protect circuit components effectively.

• Resistance Values: The initial minimum resistance is 2.5 Ohms, and the maximum resistance after tripping is 7.5 Ohms, ensuring it does not significantly impact the normal operation of the circuit while providing protection

Applications

• USB hubs, ports and peripherals

• IEEE1394 ports

• Computers & peripherals

• Motor protection  General electronics

• Automotive applications

• Industrial controls

• Transformers
