Introduction to the 7MBP150RA120-05 IGBT-IPM R Series
The 7MBP150RA120-05 is a state-of-the-art Integrated Power Module (IPM) designed and manufactured by FUJI. It represents a significant advancement in the realm of power electronics, encapsulating robust and efficient semiconductor technology into a compact and reliable package. This product is specifically engineered to cater to high-voltage and high-current applications, offering an optimal solution for driving electric motors, renewable energy inverters, and various industrial machines. Its design philosophy emphasizes performance, efficiency, and reliability, making it a preferred choice for professionals seeking to optimize their power systems.

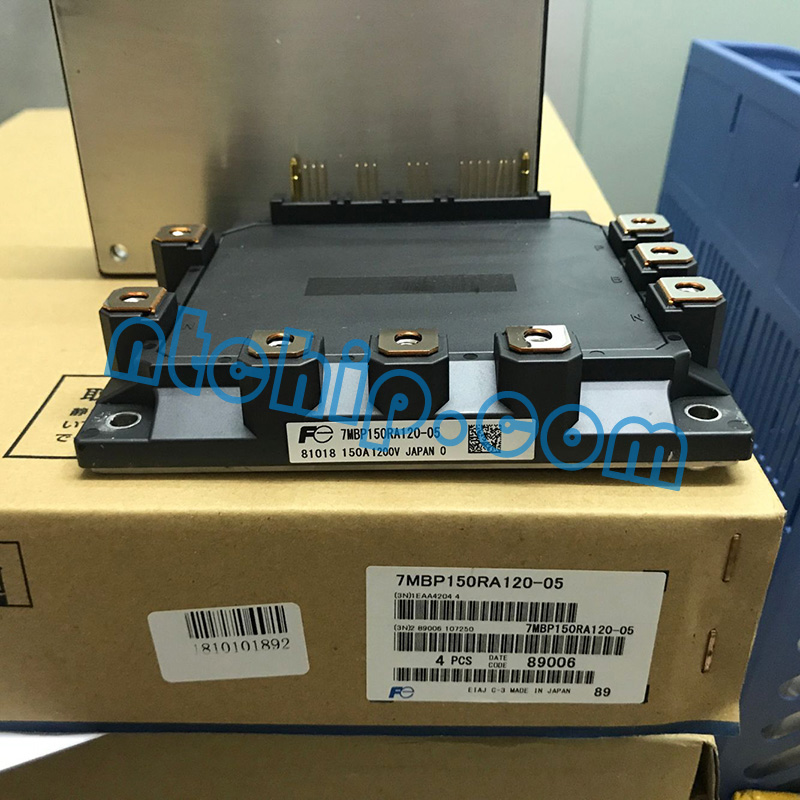

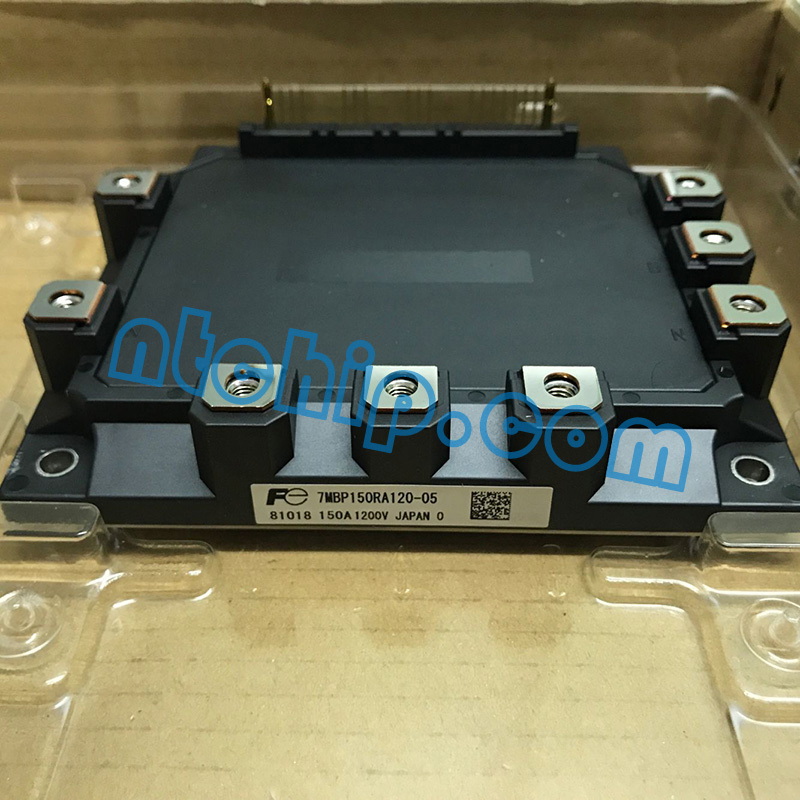

FUJI 7MBP150RA120-05
Key Features of the 7MBP150RA120-05
The 7MBP150RA120-05 comes packed with an array of features designed to enhance its performance and reliability in demanding applications. Some of its standout features include:
Direct Temperature Protection: The module is equipped with a mechanism to directly detect the junction temperature of the IGBTs, ensuring the system operates within safe temperature limits and preventing thermal runaways.
Low Power Loss and Soft Switching: It is designed to minimize power loss during operation, complemented by soft switching capabilities that reduce electromagnetic interference (EMI) and stress on the device, leading to improved efficiency and longer life.
High-Performance IGBTs with Overheating Protection: The module utilizes high-performance Insulated Gate Bipolar Transistors (IGBTs) that come with built-in overheating protection, safeguarding the device against excessive temperature and enhancing its reliability.
Increased Reliability through Reduced Component Count: By integrating a comprehensive control circuit within the module, the number of external parts required is significantly reduced, which not only simplifies the design but also increases the overall reliability of the system.
Technical Specifications
The 7MBP150RA120-05 is tailored to meet the rigorous demands of high-power applications, featuring impressive technical specifications:

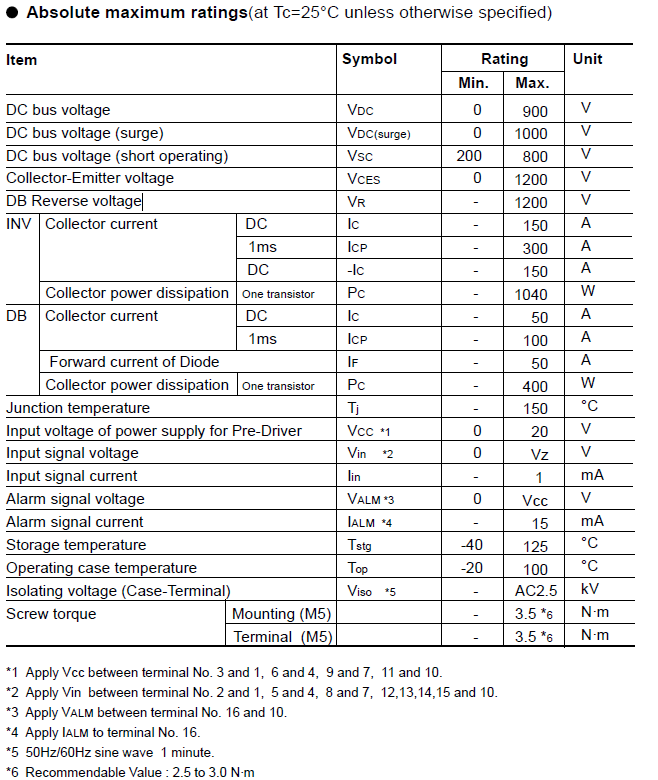

DC Bus Voltage: 0-900V, accommodating a wide range of operating conditions.
DC Bus Voltage (Surge): Capable of handling surges up to 1000V, providing additional protection against transient overvoltages.
DC Bus Voltage (Short Operating): Operates efficiently within a range of 200-800V, ensuring stability under varied conditions.
Collector-Emitter Voltage: Rated for up to 1200V, allowing it to handle high voltage levels without compromise.
DB Reverse Voltage: Withstands up to 1200V, ensuring reliable operation even under reverse voltage scenarios.
In conclusion, the 7MBP150RA120-05 IGBT-IPM R Series from FUJI is a comprehensive solution that combines cutting-edge semiconductor technology with innovative design features to deliver unmatched performance, efficiency, and reliability in high-voltage and high-current applications. Its robustness and versatility make it an ideal choice for engineers and professionals working on advanced power conversion and motor drive systems.
FUJI is the manufacturer of the 7MBP150RA120-05, which is available in stock at Nantian. The reference price for 7MBP150RA120-05 can be found by referring to FUJI or Nantian's listings. For detailed parameters and understanding its functionality, you can refer to the 7MBP150RA120-05 datasheet PDF and pin diagram description that are available for download.
The 7MBP150RA120-05 has a wide range of applications as outlined in DSP Datasheet PDF. To further understand how it works, you can find usage methods along with circuit diagrams within these resources. For comprehensive electronics tutorials on using this component, these documents should prove highly beneficial.
All relevant information including datasheets, pin diagrams, circuit diagrams and tutorials related to 7MBP150RA120-05 could be downloaded from Nantian's platform.
