Introduction to 6MBI450U4-120
The 6MBI450U4-120 is a high-performance Insulated Gate Bipolar Transistor (IGBT) module produced by FUJI. This module is engineered for high-voltage applications, featuring a collector-emitter voltage of 1200V, which allows it to efficiently manage and switch large power levels. The design focuses on achieving superior efficiency and reliability in power conversion, making it an ideal choice for demanding environments and applications.

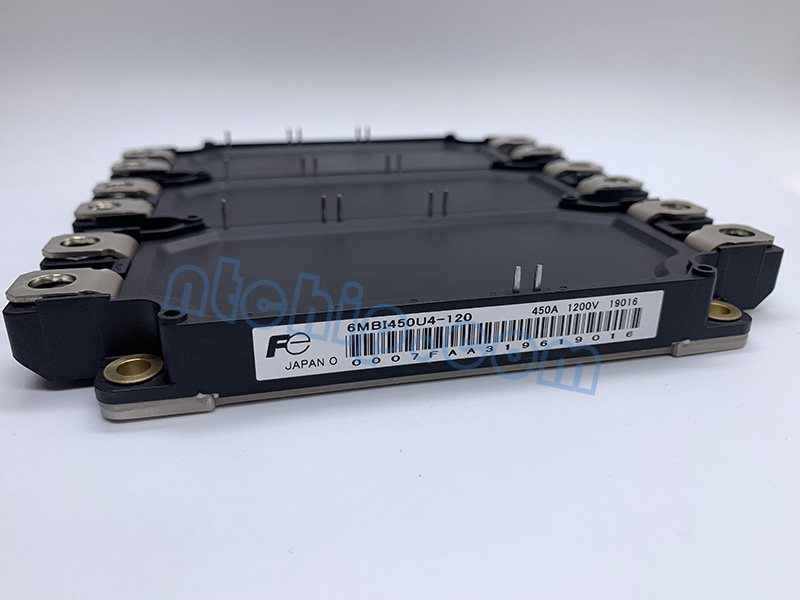

Original FUJI 6MBI450U4-120
Key Features
High Voltage Capability: With a collector-emitter voltage rating of 1200V, this IGBT module is capable of handling high power applications with ease, ensuring reliable performance under stringent conditions.
Advanced Gate-Emitter Voltage: The ±20V gate-emitter voltage provides a wide range for gate drive voltages, offering flexibility in controlling the IGBT's switching characteristics and performance.
Significant Power Dissipation: The 6MBI450U4-120 is designed with a collector power dissipation of 2080W, indicating its ability to manage significant amounts of power without compromising on efficiency or reliability.
Durable and Reliable: Engineered for durability, this module offers robust performance even in harsh operational conditions, making it a reliable choice for critical power applications.
Applications
The 6MBI450U4-120's high voltage and power handling capabilities make it perfectly suited for a variety of applications. These include power supply systems, renewable energy inverters such as those used in solar and wind power generation, high-power industrial machinery, and electric vehicle (EV) charging stations. Its reliability and efficiency ensure optimal performance and contribute to the advancement of energy-efficient solutions in these fields.
Why Choose the 6MBI450U4-120?
Opting for the 6MBI450U4-120 from FUJI for your high-power applications offers several advantages. Its high voltage and power dissipation capabilities enable the handling of demanding power management tasks with exceptional reliability and efficiency. The flexibility in gate-emitter voltage allows for precise control over switching characteristics, further enhancing performance. Additionally, FUJI's reputation for quality and support ensures that integrating this module into your systems will be straightforward, with the backing of comprehensive documentation and customer service. This module not only meets the current demands for high-performance power solutions but also supports the development of more energy-efficient technologies in the future.
6MBI450U4-120 Pin Configuration
Although 6MBI450U4-120 has been discontinued for many years, Nantian Electronic still has a large inventory of 6MBI450U4-120. You can also find the datasheet for 6MBI450U4-120 in our warehouse list.
