FUJI 2MBI200N-060

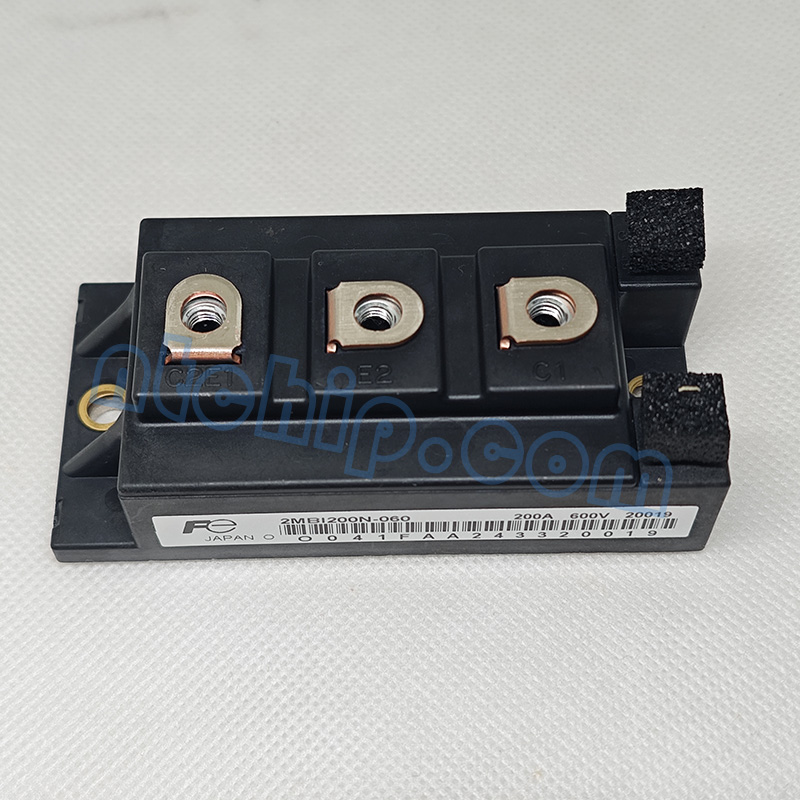

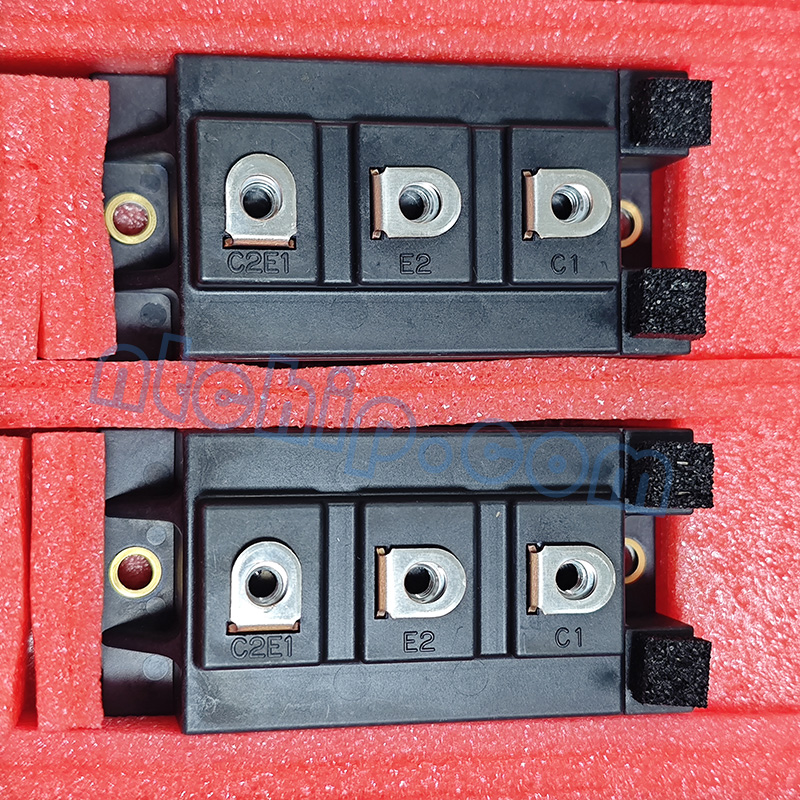

Two Fuji original 2MBI200N-060

The FUJI 2MBI200N-060 is a robust IGBT module designed for high-power switching applications such as AC and DC motor controls, and uninterruptible power supplies. It features a collector-emitter voltage of 600V and can handle a collector current of 200A. This module is engineered to achieve low saturation voltage and reduced total power dissipation, with a maximum power dissipation of 780W. It includes an overcurrent limiting function that can handle up to approximately 3 times the rated current, ensuring reliable operation under stressful conditions. The FUJI 2MBI200N-060 also boasts improved forward voltage characteristics and minimized internal stray inductance, making it highly efficient and dependable for demanding power applications.

As a professional FUJI distributor, Nantian Electronics has a large number of 2MBI200N-060 in stock. We also provide 2MBI200N-060 parameters, 2MBI200N-060 Datasheet PDF and pin diagram instructions for download.

Features

• Square RBSOA

• Low Saturation Voltage

• Less Total Power Dissipation

• Improved FWD Characteristic

• Minimized Internal Stray Inductance

• Overcurrent Limiting Function (~3 Times Rated Current)

Application

• High Power Switching

• A.C. Motor Controls

• D.C. Motor Controls

• Uninterruptible Power Supply

Equivalent Circuit

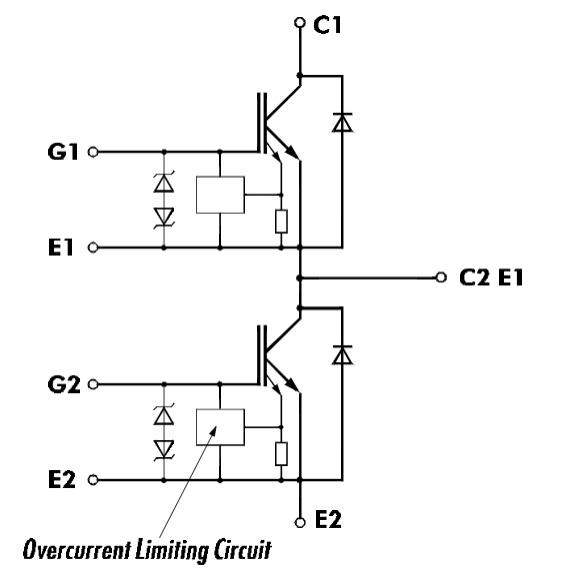

2MBI200N-060 equivalent circuit diagram is as follows:

2MBI200N-060 Outline

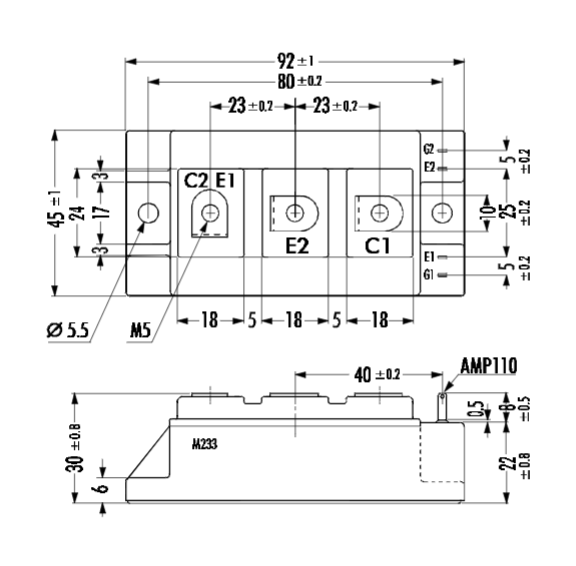

2MBI200N-060 outline drawing is as follows:
