What are the key features of the EL3H4(B)(TA)-VG?

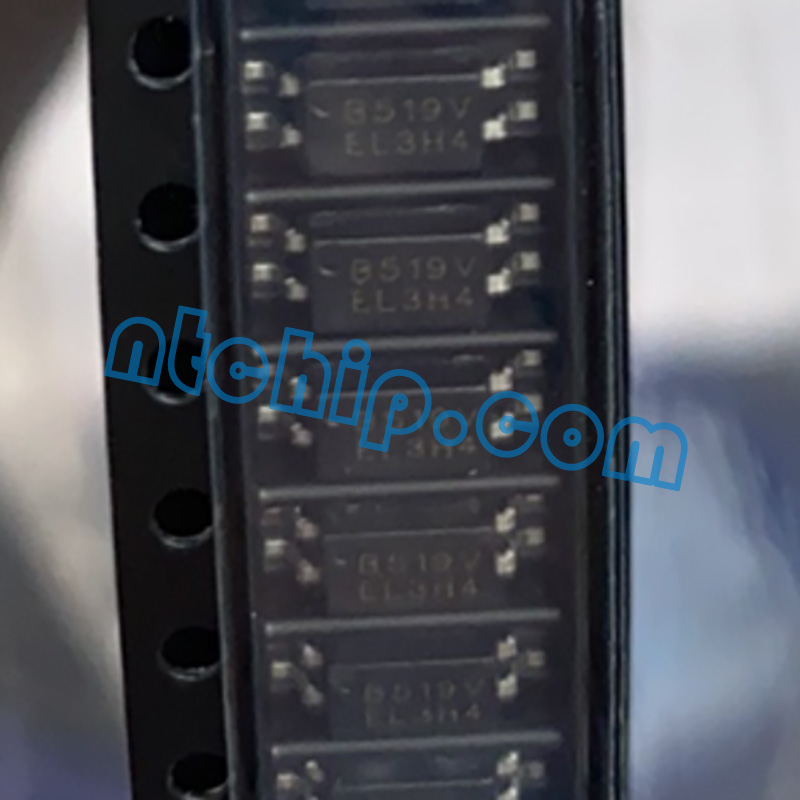

The EL3H4(B)(TA)-VG is an AC-input optocoupler that provides secure electrical isolation between input and output circuits. It offers a minimum current transfer ratio (CTR) of 20% at low input current, a high isolation voltage of 3750 Vrms, and reliable signal transmission even in noisy environments. The device is housed in a compact small-outline package and meets strict environmental and safety standards, including halogen-free construction, RoHS and EU REACH compliance, and multiple international safety approvals (UL, VDE, SEMKO, NEMKO, DEMKO, FIMKO).
What is this optocoupler used for?
This optocoupler is typically used in applications where electrical isolation is needed between low-voltage control electronics and higher-voltage power circuits. Common uses include industrial control systems, power supplies, motor drive interfaces, and communication equipment. By providing galvanic isolation, it protects sensitive components and users from voltage spikes, surges, and ground-loop issues.
Are there alternative parts?
Yes. Alternative AC-input or general-purpose optocouplers with similar isolation performance and CTR include devices such as the PC817, 4N25, or LTV-817 series from various manufacturers. For higher performance or surface-mount options, equivalents like the ILD213T or AVO610A may also be considered. When choosing alternatives, ensure that isolation voltage, package type, and current transfer characteristics match your design requirements.
