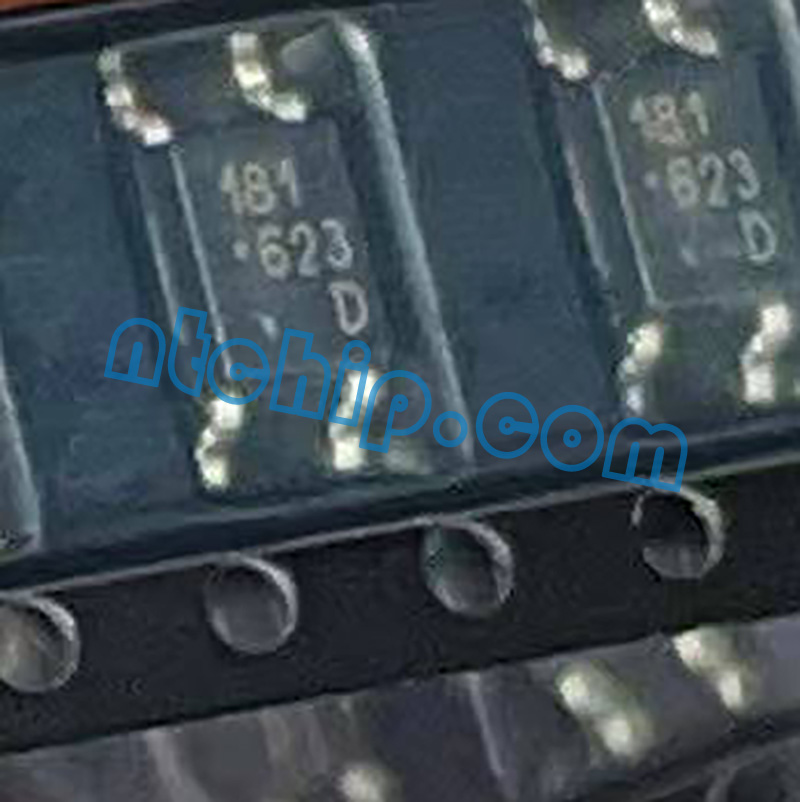

Avago Technologies (Broadcom) HCPL-181-00DE

The Avago Technologies (Broadcom) HCPL-181-00DE is a high-performance optocoupler designed to provide efficient signal transmission between circuits of different potentials and impedances. It features a high current transfer ratio (CTR) of a minimum of 50% at 5 mA and 5 V, ensuring reliable signal transmission. The device also boasts a high input-output isolation voltage of 3750 Vrms, providing excellent protection against voltage spikes and surges. With a high collector-emitter voltage of 80 V and a typical response time of 4 µs, the HCPL-181-00DE is designed for fast, efficient operation.

This optocoupler comes in a mini-flat package with a 2.0 mm profile, making it suitable for space-constrained applications. It is UL approved, CSA approved, and IEC/EN/DIN EN 60747-5-2 approved, demonstrating its compliance with international safety and performance standards. The HCPL-181-00DE is ideal for a variety of applications, including I/O interfaces for computers, system appliances, measuring instruments, and as a feedback circuit in power supplies. As a professional distributor of Avago Technologies (Broadcom), Nantian Electronics maintains a large stock of HCPL-181-00DE components and provides comprehensive support, including datasheet PDFs and pin diagram instructions for download. Contact us for inquiries or to place an order.
