Avago Technologies (Broadcom) AFBR-821FH1Z

The AFBR-821FH1Z from Avago Technologies (Broadcom) is a high-performance optical transceiver module designed to meet the demands of modern data communication and networking applications. This module is compliant with IEEE 802.3ba 100GbE (100GBASE-SR10 and nPPI) and 12×QDR Infiniband standards, ensuring compatibility with a wide range of network systems. It operates at 10.3125 Gbps per channel for 100GbE applications and at 10 Gbps for IB-QDR applications, providing a high aggregate bandwidth of 120 Gbps per module. The AFBR-821FH1Z features a high-density footprint, making it ideal for space-constrained environments, and it supports links up to 150 meters with OM4 4700 MHz•km 50 mm multimode fiber.

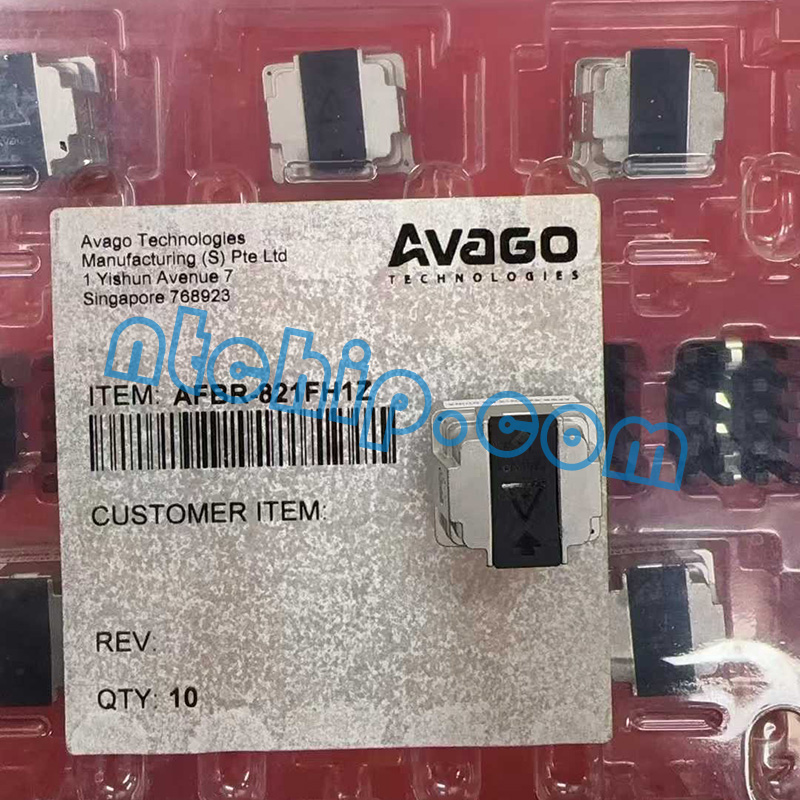

Avago Technologies (Broadcom) AFBR-821FH1Z Original Part and Label Picture

Designed for ease of integration and reliability, the AFBR-821FH1Z includes separate transmitter and receiver modules, utilizing an 850 nm VCSEL array in the transmitter and a PIN array in the receiver. It offers a pluggable electrical interface and low power consumption of 3.0 W max per transmitter/receiver pair within an operating range of 0 °C to 70 °C. The module also features advanced functionalities such as programmable equalization, receiver output swing, and deemphasis level, as well as field upgradable firmware. These features, combined with its robust design and high performance, make the AFBR-821FH1Z suitable for applications like 100 GbE interconnects, high-performance computing, and switch fabric interconnects.

Nantian Electronics, as a professional distributor, offers a large stock of AFBR-821FH1Z modules and provides detailed datasheets and pin diagrams for download.
