The HMC830LP6GETR by Analog Devices Inc. is a top-of-the-line Phase-Locked Loop (PLL) component, designed for high-frequency and high-stability RF applications. The device supports an impressive RF bandwidth of 25-3000 MHz, with a maximum Phase Detector Rate of 100 MHz. It is distinguished by its ultra-low phase noise, characteristically standing at -110 dBc/Hz in Band Typ with a Figure of Merit (FOM) of -227 dBc/Hz, thus ensuring accurate and clean signal transmission.
The HMC830LP6GETR further guarantees precise frequency control with less than 180 fs RMS jitter and a 24-bit step size, with a typical resolution of 3 Hz. It includes a built-in digital self-test mechanism and can be used in an exact frequency mode. Despite being obsolete, this PLL, presented in a 40 lead 6x6 mm SMT package, continues to be widely utilized because of its top-notch output and range of features. The device requires a supply voltage between 3V to 5.2V, and it functions efficiently within a temperature range of -40°C to 85°C.

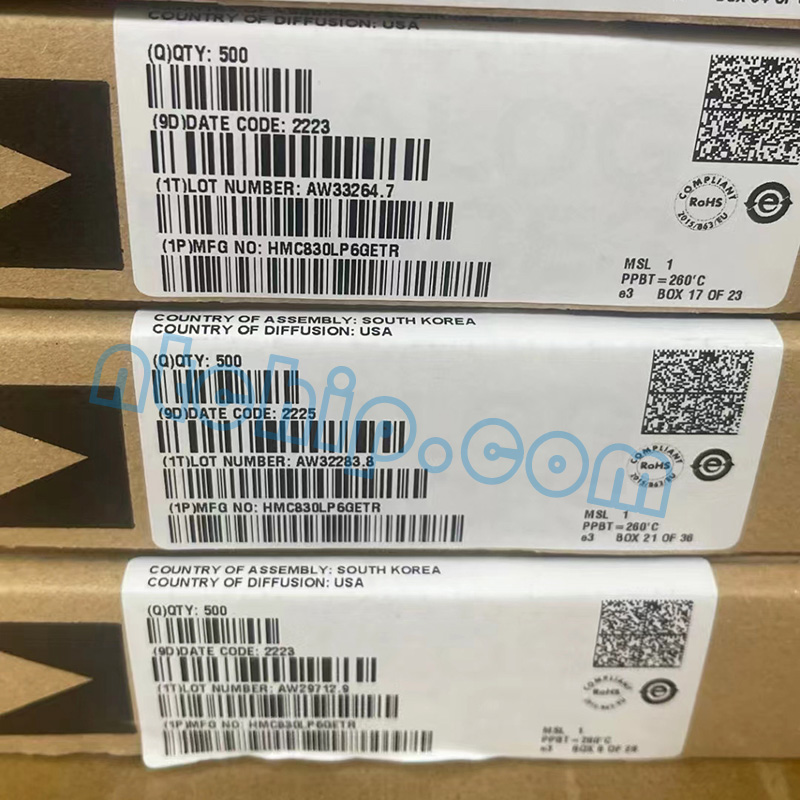

As a professional ADI distributor, Nantian Electronics has a large number of HMC830LP6GETR in stock. We also provide HMC830LP6GETR parameters, HMC830LP6GETR Datasheet PDF and pin diagram instructions for download.
Applications
What is the RF bandwidth supported by the HMC830LP6GETR?
The HMC830LP6GETR supports an RF bandwidth of 25 to 3000 MHz.
What is the supply voltage requirements for the HMC830LP6GETR?
The HMC830LP6GETR requires a supply voltage between 3V to 5.2V for optimal operations.
