1. What are the main features of the AD9915BCPZ?

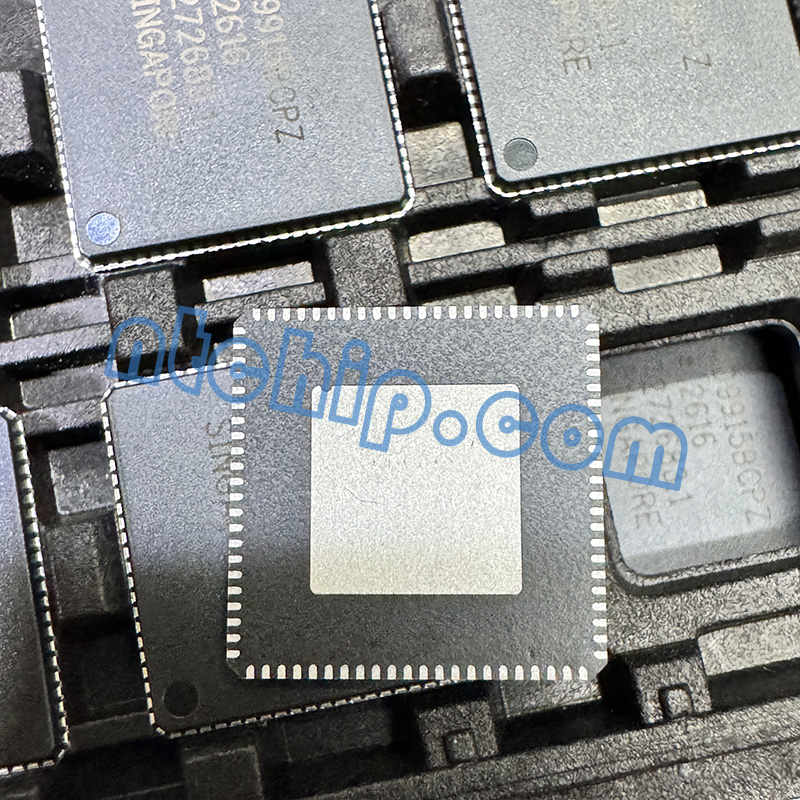

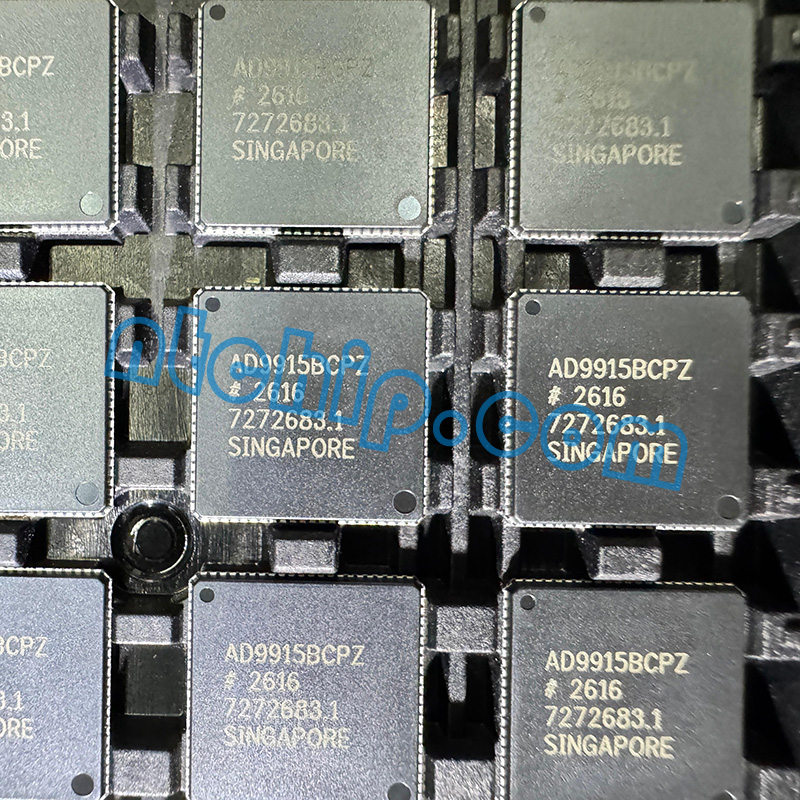

The AD9915BCPZ is a high-speed direct digital synthesizer (DDS) with a 2.5 GSPS internal clock and integrated 12-bit DAC. It provides frequency tuning resolution down to 135 pHz, 16-bit phase tuning, 12-bit amplitude scaling, programmable modulus, and automatic linear and nonlinear frequency sweeping. It also supports eight frequency/phase offset profiles, phase and amplitude modulation, a 32-bit parallel datapath, serial or parallel control, and multichip synchronization. The device operates with 1.8 V and 3.3 V power supplies and is housed in an 88-lead LFCSP package.
2. What is the AD9915BCPZ used for?
The AD9915BCPZ is designed for generating precisely controlled and frequency-agile analog signals. Typical applications include agile local oscillator frequency synthesis, programmable clock generation, radar and scanning systems requiring FM chirp signals, fast frequency-hopping systems, test and measurement equipment, acousto-optic device drivers, and polar modulation. Its high-speed architecture allows rapid changes to frequency, phase, and amplitude settings.
3. Does the AD9915BCPZ have any alternative manufacturers and part numbers, such as?
There is no universal pin-compatible drop-in replacement for the AD9915BCPZ because its combination of 2.5 GSPS operation, 12-bit DAC, control interfaces, synchronization functions, and 88-lead LFCSP package is specialized. For a redesign rather than a direct replacement, other high-speed DDS devices may be considered, such as Analog Devices AD9914S, AD9174, or AD9164. However, these devices have different specifications, interfaces, packages, and system requirements, so the electrical and functional compatibility should be carefully verified before substitution.
4. Is technical support available for the AD9915BCPZ?
Yes. Technical resources are available for the AD9915BCPZ, including datasheets, evaluation-board documentation, evaluation software, and application materials. These resources can help engineers understand device configuration, frequency and phase control, synchronization, and circuit implementation. Nantian Electronics can also provide AD9915BCPZ product information, datasheet and pin-diagram resources, quotation assistance, and general component support.
