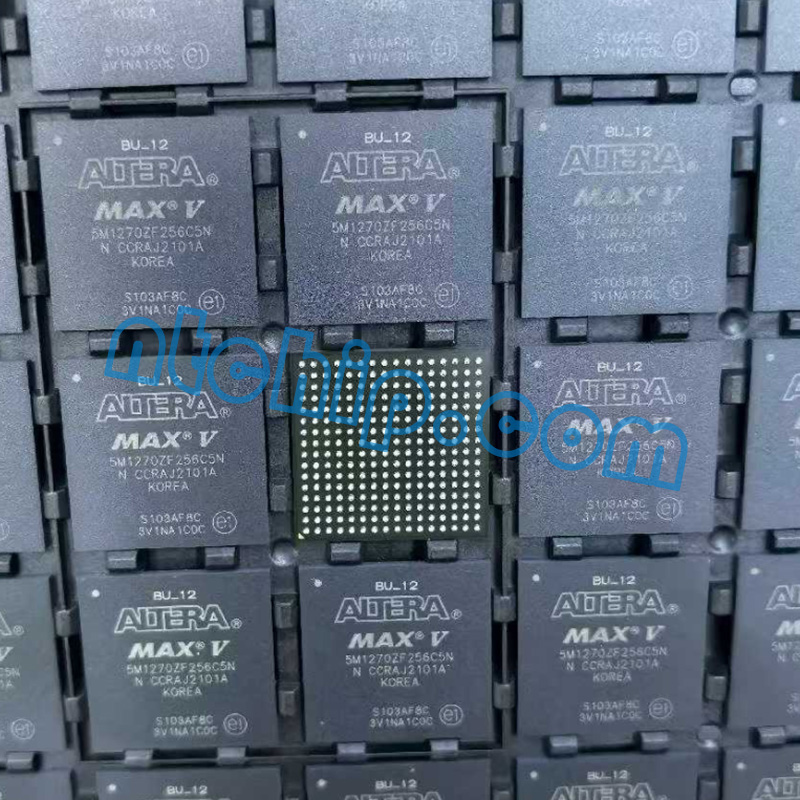

The Altera 5M1270ZF256C5N is a high-performance Complex Programmable Logic Device (CPLD) designed to deliver low-cost and low-power solutions while maintaining non-volatile reliability. With an instant-on configuration time of 0.5 ms or less, it ensures rapid startup for time-critical applications. The device features low standby current consumption, fast propagation delays, and integrated support for high-speed interfaces such as emulated RSDS and LVDS outputs, enabling data transfer rates up to 304 Mbps. Its flexible architecture includes four global clocks, user flash memory for non-volatile storage, and a MultiVolt I/O interface that supports a wide range of logic levels for system compatibility.
Built to meet modern design requirements, the 5M1270ZF256C5N offers robust functionality such as programmable slew rate, bus-hold, Schmitt trigger inputs for noise tolerance, and full PCI Local Bus compliance for 3.3-V operation. It also supports hot-socketing and includes built-in JTAG boundary-scan testing for easy system integration and debugging. With its compact design and versatile features, this CPLD is well-suited for embedded systems, communication equipment, and a variety of industrial applications requiring reliability and efficiency.As a professional Altera distributor, Nantian Electronics stocks a wide range of electronic components, including the part number 5M1270ZF256C5N. We also provide detailed 5M1270ZF256C5N parameters, the official Datasheet (PDF), and pin diagram instructions for download. If you are interested in purchasing this part, please feel free to contact us. We will offer you our most competitive price. Welcome to send us your inquiry and place an order!
