ALTERA EPM7256EGC192-20

Manufacturer Part Number :	EPM7256EGC192-20
Manufacturer :	ALTERA
Description :	IC CPLD 256MC 20NS
Package :	192CPGA
Datasheet :	EPM7256EGC192-20.PDF
EDA / CAD Models :	EPM7256EGC192-20 by SnapEDA
Base Product Number :	EPM7256
Stock Condition :	In Stock 745, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

ALTERA EPM7256EGC192-20

In Stock: 745 Qty:

RFQ Now Add to RFQ list

The EPM7256EGC192-20 from Altera is a high-performance CPLD belonging to the MAX® 7000 family, designed to deliver reliable and flexible programmable logic solutions. With approximately 5,000 usable gates and 256 macrocells, it provides ample logic resources for implementing complex digital functions. Based on EEPROM technology, it supports in-system programmability via a built-in JTAG interface, allowing for easy updates and configuration without removing the device from the circuit. Its fast pin-to-pin logic delay and high operating frequency make it suitable for time-critical applications.

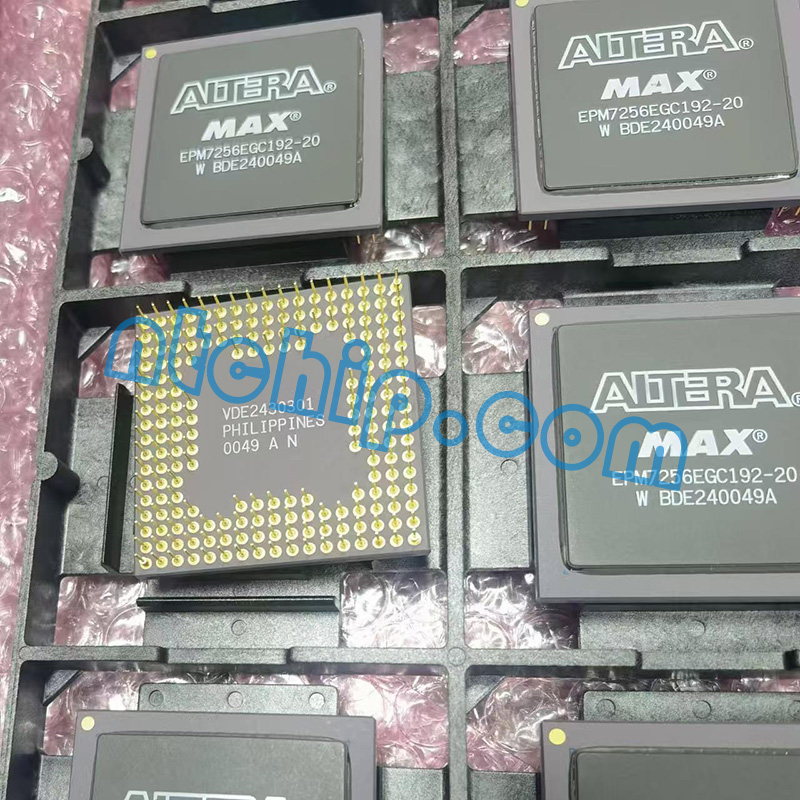

ALTERA EPM7256EGC192-20 CPLD semiconductor part

Packaged in a 192-pin CPGA format and operating at 5V, this device is widely used in industrial control systems, communication equipment, interface bridging, and legacy system designs requiring stable and reprogrammable logic. It also features boundary-scan test capabilities, enhancing system testing and debugging.

ALTERA EPM7256EGC192-20 original package label

Nantian Electronics, as a professional Altera distributor, keeps EPM7256EGC192-20 in stock and provides datasheets and technical support, welcoming inquiries for competitive pricing and orders.

Type	Description
Category	Integrated Circuits (ICs) Embedded - CPLDs (Complex Programmable Logic Devices)
Manufacturer	Altera
Series	MAX® 7000
Packaging	Tray
Part Status	Active
DigiKey Programmable	Not Verified
Programmable Type	EE PLD
Delay Time tpd(1) Max	20 ns
Voltage Supply - Internal	4.75V ~ 5.25V
Number of Logic Elements/Blocks	16
Number of Macrocells	256
Number of Gates	5000
Number of I/O	164
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Surface Mount
Package / Case	208-BFQFP Exposed Pad
Supplier Device Package	208-RQFP (28x28)
Base Product Number	EPM7256

What are its key features?

CPLD from the MAX® 7000 family, ~5,000 usable gates, 256 macrocells, EEPROM-based non-volatile logic, 5V operation, in-system programmability via JTAG, fast pin-to-pin delay (~5 ns), and 192-pin CPGA package.

What is it used for?

Used in industrial control, communication systems, interface logic, address decoding, and legacy system designs requiring stable and reprogrammable logic.

Are there alternative parts?

Yes, alternatives include other MAX 7000 series devices (such as EPM7128 or EPM7032), Intel (Altera) MAX II series, and CPLDs from Xilinx (XC9500 series) or Lattice with similar logic capacity and voltage requirements.
