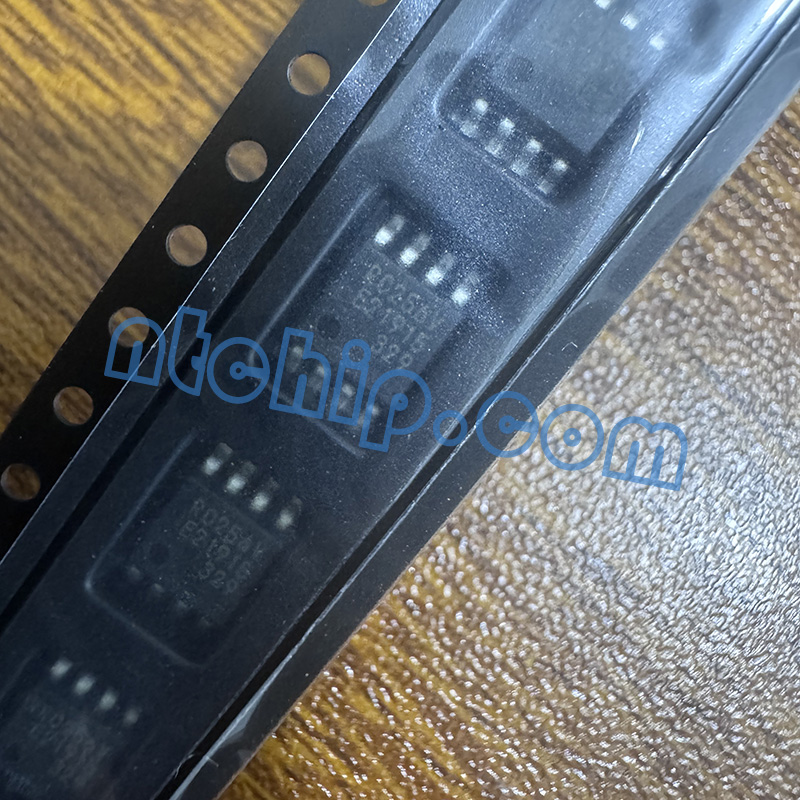

Q1: What are the main features of the Texas Instruments UCC27201ADDAR?
A: The UCC27201ADDAR is a high frequency 120 V half bridge gate driver designed to drive two N channel MOSFETs in high side and low side configurations. It provides 3 A source and 3 A sink output current, supports a maximum boot voltage of 120 V, and includes an integrated bootstrap diode. The HS pin can tolerate negative voltages down to 18 V, while separate undervoltage lockout functions protect both the high side and low side drivers. The device also offers fast switching with low propagation delay, fast rise and fall times, and closely matched high side and low side timing.
Q2: What is the UCC27201ADDAR used for?
A: The UCC27201ADDAR is used to provide strong and fast gate drive signals for power MOSFETs in switching power circuits. Typical applications include half bridge and full bridge converters, synchronous buck converters, two switch forward converters, active clamp forward converters, and other high frequency power supply designs. Its independent high side and low side inputs allow flexible control of the two MOSFETs.
Q3: Does the UCC27201ADDAR have alternative manufacturers and part numbers?
A: Alternative gate driver devices are available, but a direct replacement should be selected carefully because differences in pin configuration, input thresholds, supply voltage, bootstrap specifications, output current, propagation delay, and package can affect circuit operation. Texas Instruments UCC27301A Q1 provides related 120 V half bridge gate driver functionality with higher 4.5 A drive current, while UCC27201A Q1 offers related 3 A, 120 V functionality with automotive qualification. These devices should not be considered direct drop in replacements without checking the complete electrical and mechanical requirements.
Q4: Is technical support available for the UCC27201ADDAR?
A: Yes. Technical support is available for the UCC27201ADDAR, including assistance with product parameters, datasheet information, pin configuration, gate drive design, application requirements, and replacement evaluation. Nantian Electronics can also provide support with part selection, availability, technical information, and purchasing.
