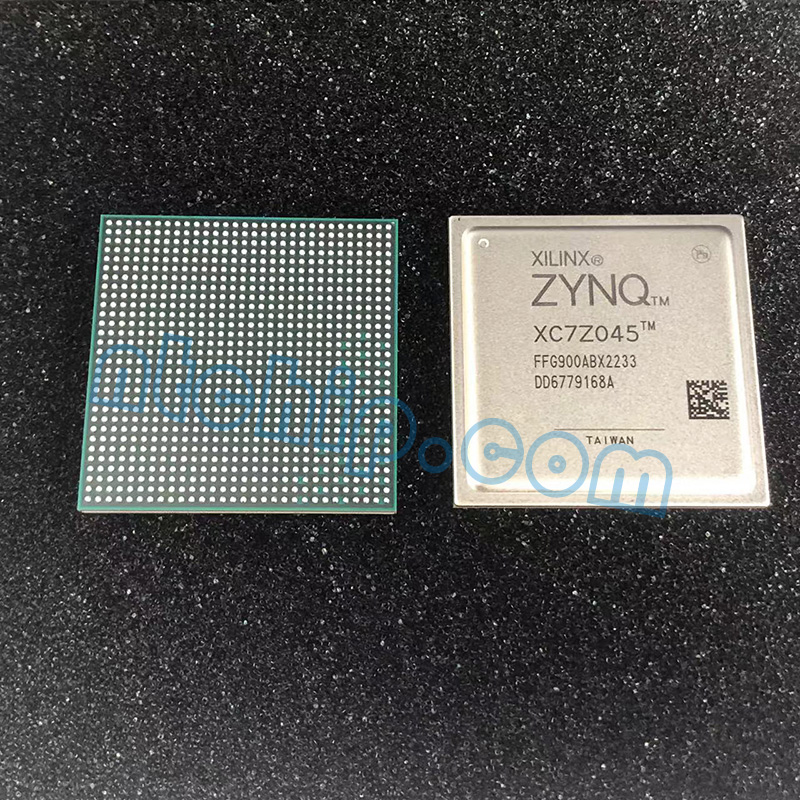

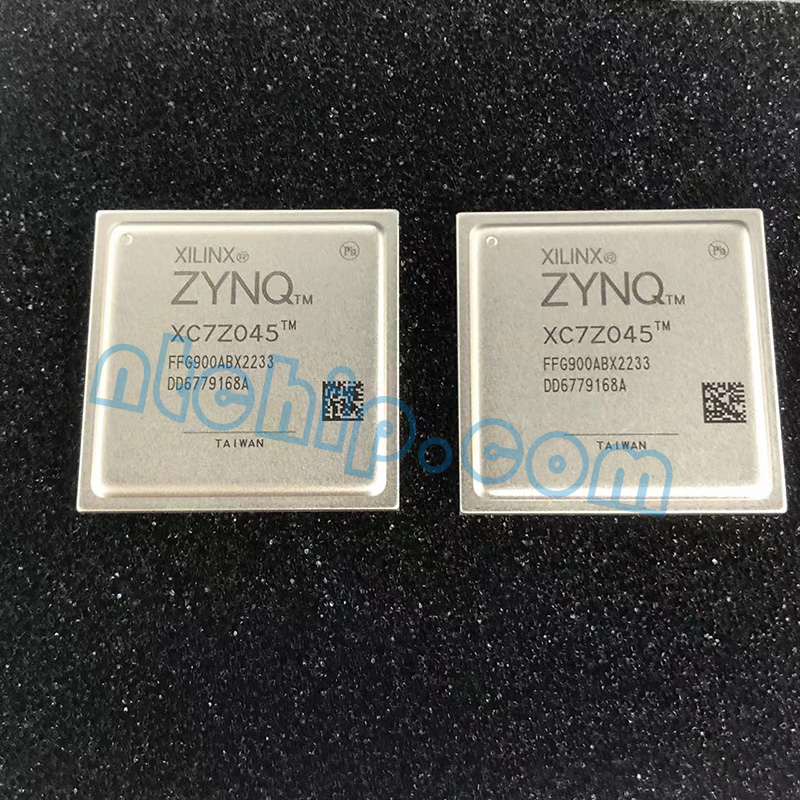

Xilinx XC7Z045-L2FFG900I

XC7Z045-L2FFG900I Overview

The XC7Z045-L2FFG900I belongs to the Xilinx (AMD) Zynq®-7000 family. The Zynq®-7000 family is based on the Xilinx SoC architecture. These products integrate a feature-rich dual-core or single-core ARM® Cortex™-A9 based processing system (PS) and 28 nm Xilinx programmable logic (PL) in a single device. The ARM Cortex-A9 CPUs are the heart of the PS and also include on-chip memory, external memory interfaces, and a rich set of peripheral connectivity interfaces.

As a professional Xilinx distributor, Nantian Electronics has a large number of XC7Z045-L2FFG900I in stock. We also provide XC7Z045-L2FFG900I parameters, XC7Z045-L2FFG900I Datasheet PDF and pin diagram instructions for download.

Feature

• 32 KB Level 1 4-way set-associative instruction and data caches (independent for each CPU)

• 512 KB 8-way set-associative Level 2 cache,16-bit or 32-bit interfaces to DDR3, DDR3L, DDR2, or LPDDR2 memories

• 1GB of address space using single rank of 8-, 16-, or 32-bit-wide memories

• 8-Channel DMA Controller

• GPIO with four 32-bit banks, of which up to 54 bits can be used with the PS I/O (one bank of 32b and one bank of 22b) and up to 64 bits (up to two banks of 32b) connected to the Programmable Logic

• High-bandwidth connectivity within PS and between PS and PL

• Two 10/100/1000 tri-speed Ethernet MAC peripherals with IEEE Std 802.3 and IEEE Std 1588 revision 2.0 support
