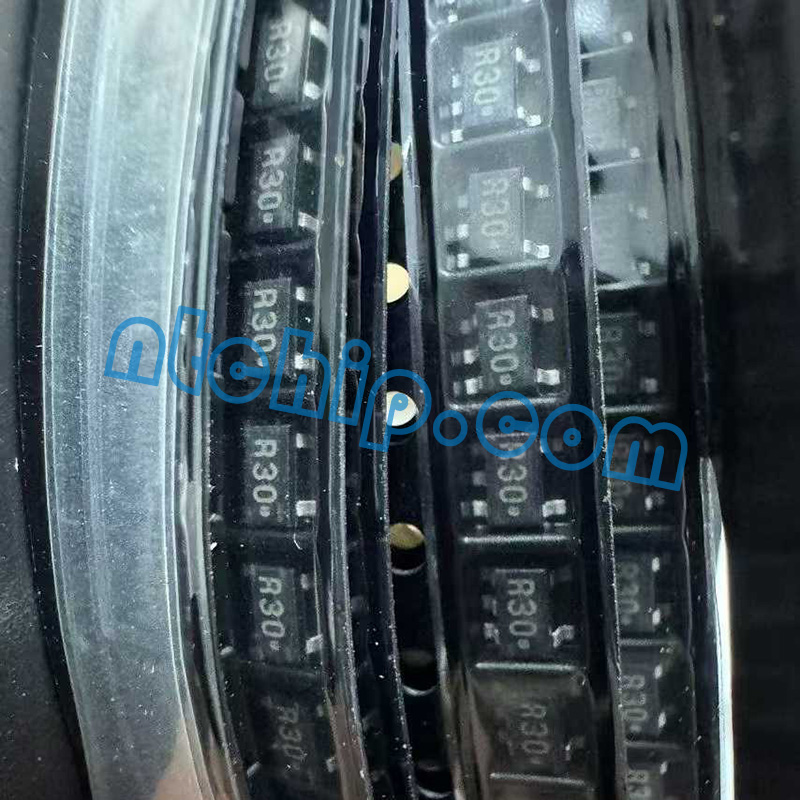

The TK11130CSCL-G by TOKO is a highly efficient, bipolar LDO (Low Dropout Regulator) IC, specifically designed to meet the rigorous demands of portable applications, battery-powered systems, and various types of electronic equipment where space and power efficiency are critical. This component is part of the broader TK111xxCS series, available in compact SOT23-6 and SOT23-5 packages, making it an ideal choice for designs where board space is at a premium. Capable of supplying a 200mA output current, it stands out for its high accuracy and low dropout voltage, ensuring that devices operate smoothly even in the tightest power constraints. Furthermore, it incorporates robust safety features such as thermal and over-current protection, enhancing system reliability.
One of the most adaptable features of the TK11130CSCL-G is the flexibility in setting the output voltage. For the TK11100CS type, the output voltage can be adjusted from 1.3V to 13.0V using an external resistor, while the TK111xxCS varieties offer internally fixed outputs ranging from 1.5V to 10.0V. This versatility makes the TK11130CSCL-G an excellent choice for a wide array of applications, from mobile gadgets to sophisticated electronic systems. Adding to its utility, it features an active high on/off control, facilitating straightforward power management that can contribute to the overall energy efficiency of the end product.

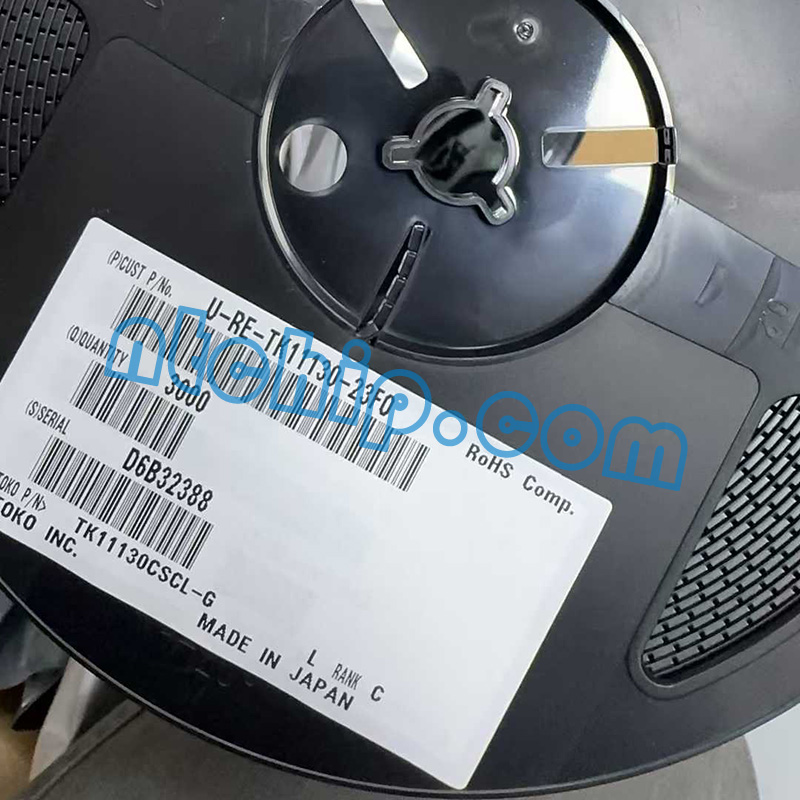

TOKO TK11130CSCL-G Original Reel Label
Nantian Electronics, a professional distributor of TOKO components, currently hosts a substantial inventory of TK11130CSCL-G units, and offers access to comprehensive datasheets and pin diagram instructions, ensuring that engineers have all the necessary information for integrating this high-performance LDO regulator into their projects.
