What are the key features of the TPS51640RSLR?

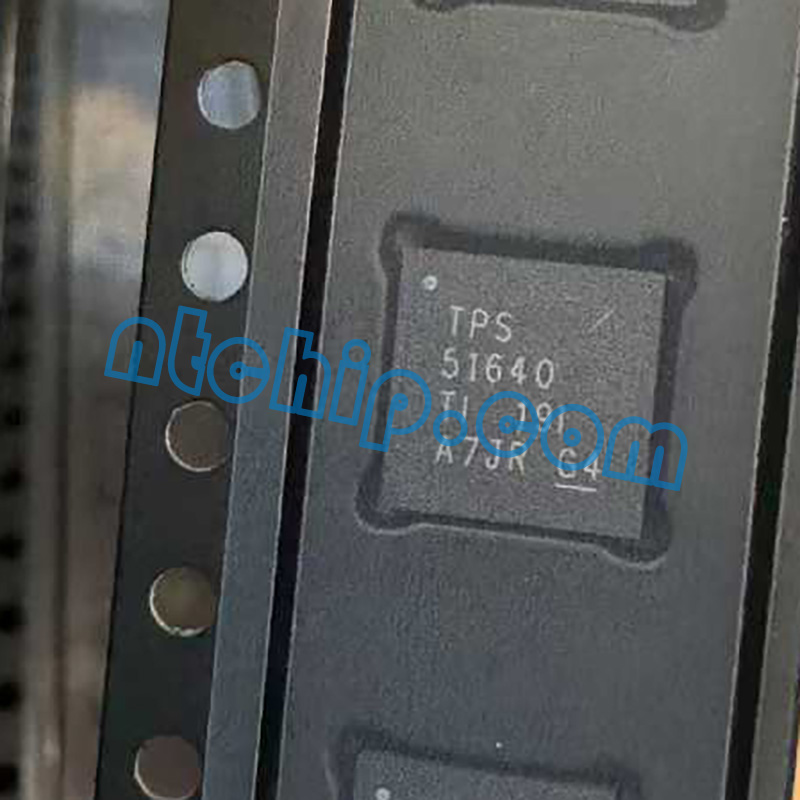

The TPS51640RSLR is a dual-channel step-down controller with integrated drivers, designed to support processor core power rails. It uses TI’s D-CAP+™ control architecture for robust voltage regulation without external compensation, and it supports IMVP-7 VCORE specifications with two independent outputs — typically a 3-phase channel for the CPU and a single-phase channel for the GPU. The device also includes SVID (Serial VID) support to communicate dynamic voltage commands from the processor.
What is the TPS51640RSLR used for?
This controller is primarily used in computing platforms where precise and efficient core voltage regulation is required, such as notebook and desktop motherboards, workstations, and other systems with high-performance CPUs and GPUs. Its ability to manage multiple power rails with fast transient response helps maintain stable operation under varying load conditions.
Are there alternative parts?
Yes. Other Texas Instruments power controllers that support multi-phase CPU and GPU core regulation — such as the TPS51630, TPS51632, or newer IMVP-supported controllers — may be considered as alternatives, depending on system requirements. Additionally, power management ICs (PMICs) from vendors like Analog Devices, Maxim Integrated, or Renesas with similar multi-rail, multi-phase functionality can be evaluated. When selecting an alternative, verify that it meets the necessary voltage scaling, phase count, SVID or PMBus support, and thermal performance for your design.
