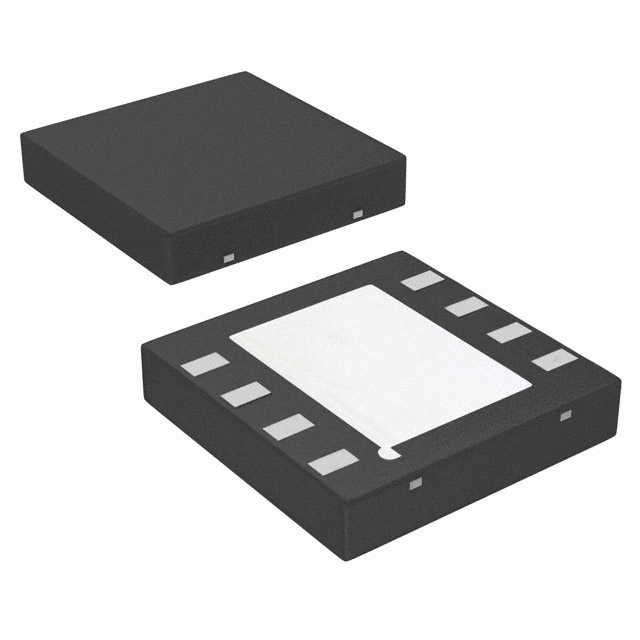

Images are for reference. See Product Specification.

Texas Instruments LP2986AILD-3.3/NOPB

Manufacturer Part Number :	LP2986AILD-3.3/NOPB
Manufacturer :	Texas Instruments
Description :	IC REG LINEAR 3.3V 200MA 8WSON
Package :	8WSON
Datasheet :	LP2986AILD-3.3/NOPB.PDF
EDA / CAD Models :	LP2986AILD-3.3/NOPB by SnapEDA
Base Product Number :	LP2986
Stock Condition :	In Stock 197, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Texas Instruments LP2986AILD-3.3/NOPB

In Stock: 197 Qty:

RFQ Now Add to RFQ list

Overview of LP2986AILD-3.3/NOPB

The LP2986AILD-3.3/NOPB is an impressive regulator made by the renowned manufacturer Texas Instruments. It's primarily designed to offer a stable and reliable power supply to a wide range of devices. Its compact size, low dropout voltage, and high output current capabilities make it an attractive option for many applications where power efficiency and space are critical considerations.

Key Features

The LP2986AILD-3.3/NOPB comes with several outstanding features that make it a top-choice product in its category.

It offers a high output current of up to 200mA.
It boasts a low dropout voltage, enhancing its overall efficiency.
The device has an inbuilt thermal overload protection, safeguarding it from damage due to overheating.
It comes with low noise output, making it suitable for noise-sensitive applications.
It provides a stable output even with ceramic output capacitors.

Technical Specifications

It's crucial to understand the technical make-up of the LP2986AILD-3.3/NOPB to appreciate its superior performance.

The regulator has an output voltage of 3.3V, making it ideal for many applications.
It operates within an input voltage range of 2.5V to 16V, contributing to its versatility.
It has a maximum operating temperature range of -40°C to 125°C, offering durability under various environmental conditions.
The device comes in a 8-Pin LLP package, ensuring convenience in terms of assembly and use.

Applications

Due to its superior features and technical specifications, the LP2986AILD-3.3/NOPB has numerous applications.

It's perfect for use in handheld, battery-powered devices due to its efficient power output.
The regulator can be used in electronics that require a stable, low-noise power source.
It's also applicable in devices that require high output current and low dropout voltage.

Output Configuration:	Positive
Output Type:	Fixed
Voltage - Input (Max):	16V
Voltage - Output (Min/Fixed):	3.3V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.35V @ 200mA
Current - Output:	200mA
PSRR:	65dB (1kHz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature, Short Circuit
Operating Temperature:	-40～C ~ 125～C
Mounting Type:	Surface Mount
Package / Case:	8-WDFN Exposed Pad
Supplier Device Package:	8-WSON (4x4)
