Texas Instruments CSD16301Q2

Manufacturer Part Number :	CSD16301Q2
Manufacturer :	Texas Instruments
Description :	MOSFET N-CH 25V 6-SON
Datasheet :	CSD16301Q2.PDF
EDA / CAD Models :	CSD16301Q2 by SnapEDA
Base Product Number :	CSD16301
Stock Condition :	In Stock 68000, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

Texas Instruments CSD16301Q2

In Stock: 68000 Qty:

RFQ Now Add to RFQ list

The Texas Instruments CSD16301Q2 is a high-performance MOSFET designed for efficient power management applications. Its ultra-low gate and drain-to-gate capacitances contribute to superior switching performance, enabling faster transitions and minimizing energy losses. This translates to increased efficiency in various power conversion circuits, such as DC-DC converters and battery management systems. The device's compact SON2 package also facilitates space-constrained designs.

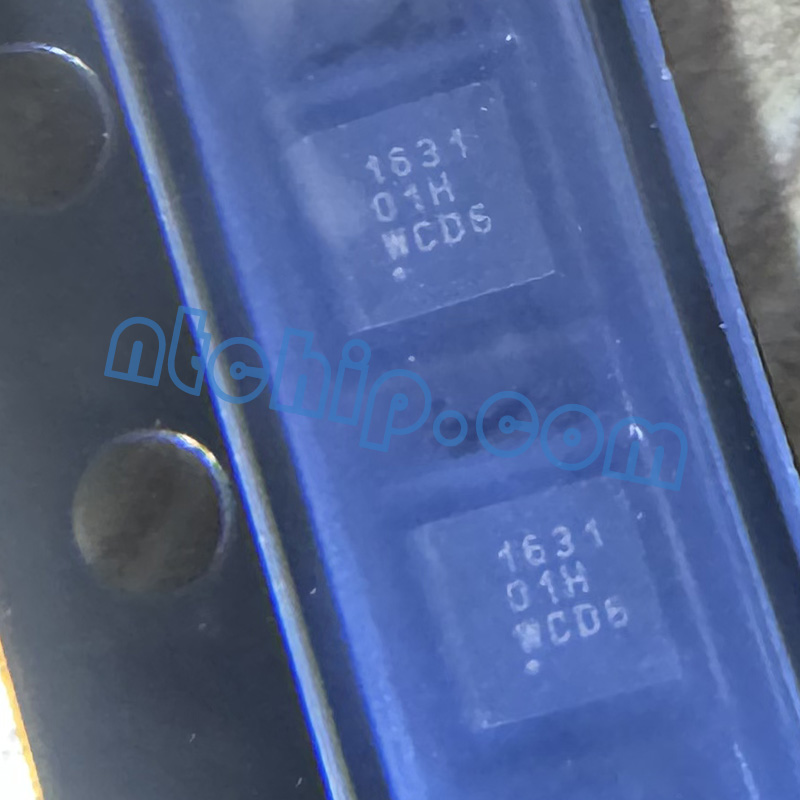

Texas Instruments CSD16301Q2 electronic chip

Beyond its performance advantages, the CSD16301Q2 boasts environmentally friendly features. Its lead-free plating, RoHS compliance, and halogen-free composition align with modern sustainability standards. These characteristics make it a suitable choice for environmentally conscious applications. Nantian, a trusted Texas Instruments distributor, offers competitive pricing and readily available support for this and other power management components.

Texas Instruments CSD16301Q2 original package label

Type	Description
Category	Discrete Semiconductor Products Transistors - FETs, MOSFETs - Single
Mfr	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	3V, 8V
Rds On (Max) @ Id, Vgs	24mOhm @ 4A, 8V
Vgs(th) (Max) @ Id	1.55V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2.8 nC @ 4.5 V
Vgs (Max)	+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds	340 pF @ 12.5 V
FET Feature	-
Power Dissipation (Max)	2.3W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Supplier Device Package	6-SON
Package / Case	6-SMD, Flat Leads
Base Product Number	CSD16301
