STMicroelectronics STW48N60M6

Manufacturer Part Number :	STW48N60M6
Manufacturer :	STMicroelectronics
Description :	MOSFET N-CH 600V 39A TO247
Datasheet :	STW48N60M6.PDF
EDA / CAD Models :	STW48N60M6 by SnapEDA
Base Product Number :	STW48
Stock Condition :	In Stock 15385, New Original

Quantity:

RFQ Add to RFQ List

Delivery:

Payment:

Request for Quotation

*Contact Name:

*Company Name:

*Email:

Country :

* Quantity

Remark :

Please fill the form and we'll get back to you within 24 hours.

Quick RFQ

STMicroelectronics STW48N60M6

In Stock: 15385 Qty:

RFQ Now Add to RFQ list

The STW48N60M6 from STMicroelectronics is a high-performance N-channel MOSFET designed to handle demanding power switching applications. It supports a maximum drain-source voltage of 600 V and can deliver up to 39 A of continuous current at rated conditions, making it well-suited for industrial power supplies, motor control systems, and energy conversion equipment. With a power dissipation capability of 250 W in its robust TO-247-3 package, this device ensures efficient heat handling and long-term operational reliability.

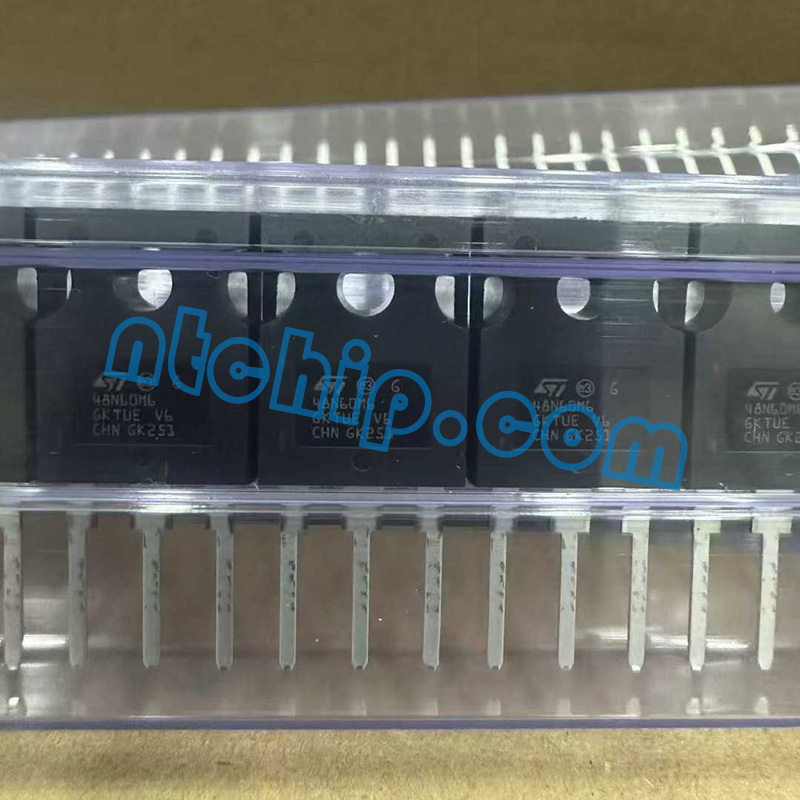

STMicroelectronics STW48N60M6 mosfet part

This MOSFET features reduced switching losses and a lower RDS(on) compared to earlier generations, enabling increased energy efficiency and improved overall system performance. It also includes low gate input resistance for easier drive requirements and is fully avalanche tested to guarantee rugged operation under stress conditions. Additionally, an integrated Zener protection structure provides enhanced safety against voltage spikes. These characteristics make the STW48N60M6 an excellent choice for designers seeking reliable and efficient high-voltage switching solutions.

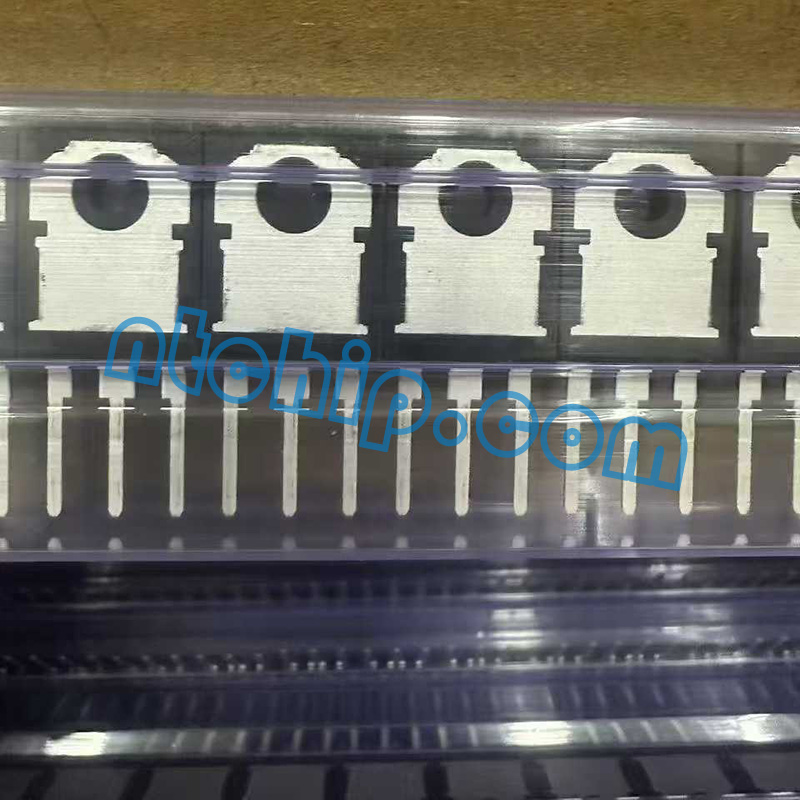

STMicroelectronics STW48N60M6 chip bottom

As a professional STMicroelectronics distributor, Nantian Electronics has a large electronic component part number of STW48N60M6 in stock. We also provide STW48N60M6 parameters, datasheet (PDF), and pin diagram instructions for download. If you would like to purchase this part, please contact us and we will offer our best price. Welcome to inquire and order!

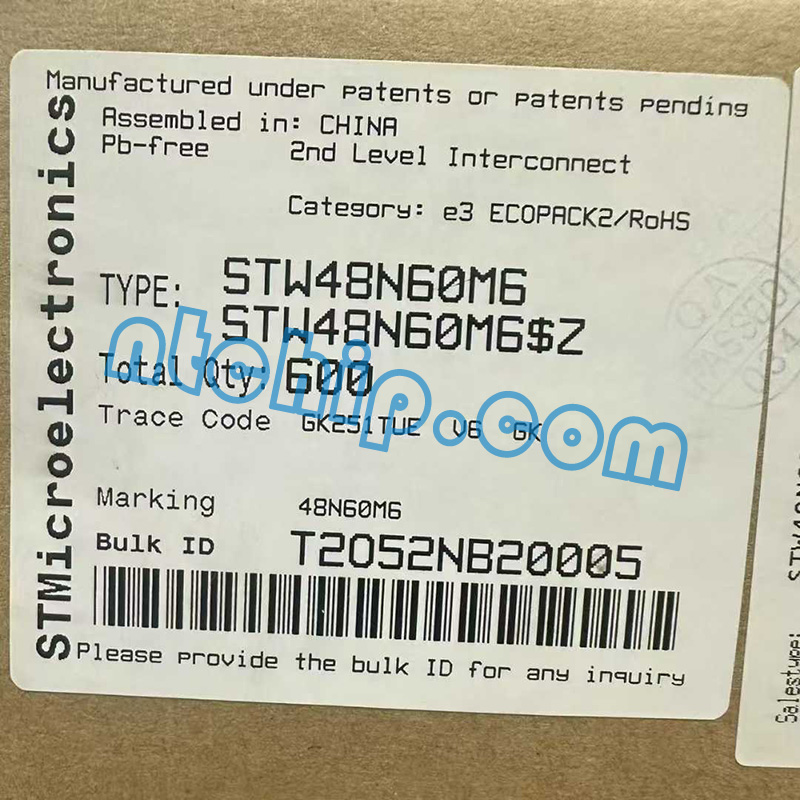

STMicroelectronics STW48N60M6 original package label

Type	Description
Category	Discrete Semiconductor ProductsTransistors - FETs, MOSFETs - Single
Mfr	STMicroelectronics
Series	MDmesh™ M6
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	39A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	69mOhm @ 19.5A, 10V
Vgs(th) (Max) @ Id	4.75V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	57 nC @ 10 V
Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	2578 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	250W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Qualification	-
Mounting Type	Through Hole
Supplier Device Package	TO-247-3
Package / Case	TO-247-3
Base Product Number	STW48
