What is the STO67N60M6?

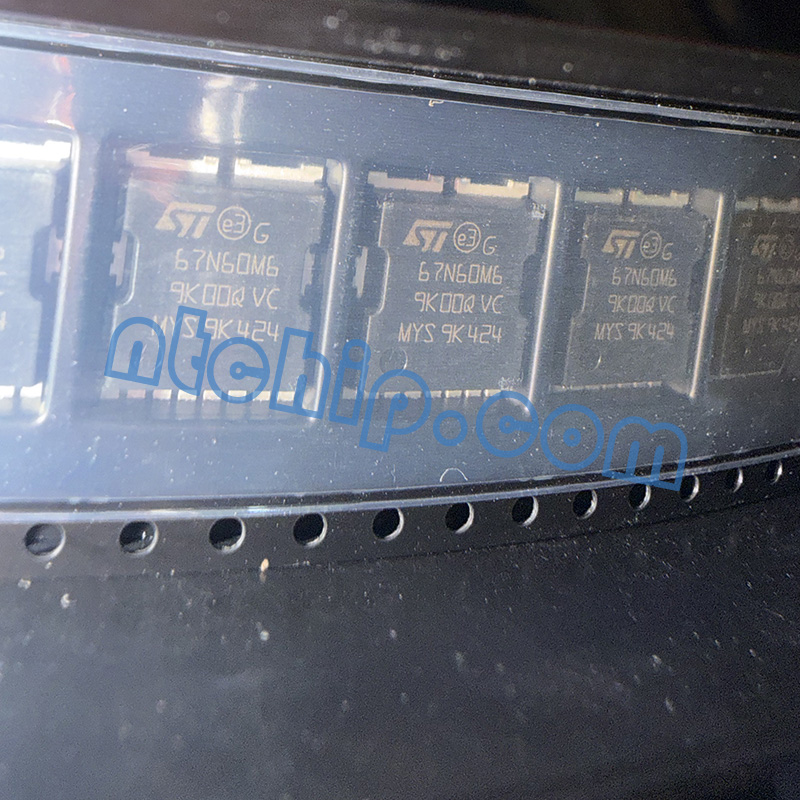

The STO67N60M6 is a high-voltage N-channel MOSFET from STMicroelectronics, designed to handle up to 600 V and 34 A. It is built for applications that require efficient power switching, strong thermal performance, and reliable operation under demanding electrical conditions.
What are the key features of this MOSFET?
It offers reduced switching losses, low RDS(on) per silicon area, and low gate input resistance, all of which contribute to higher overall system efficiency. The device also includes Zener gate protection for enhanced robustness, 100% avalanche testing for reliability, and an extra driving source pin that improves switching speed and control. Its TOLL (HV) package provides high creepage distance, supporting safer operation in high-voltage systems.
What applications is the STO67N60M6 commonly used for?
It is widely used in power supplies, motor drives, industrial converters, high-voltage switching circuits, and other applications where efficiency and thermal stability are critical. Its ability to handle high voltage and current makes it suitable for both commercial and industrial power systems.
Why is the TOLL (HV) package important?
The TOLL (HV) surface-mount package is designed to provide excellent heat dissipation, mechanical robustness, and high creepage distance. This makes the MOSFET well-suited for compact high-power designs and environments where electrical isolation and thermal management are essential.
What benefits does the extra driving source pin provide?
The extra source pin enhances gate drive control and reduces parasitic inductance, resulting in cleaner switching transitions, reduced EMI, and improved overall switching performance—particularly important in high-speed or high-efficiency power designs.
